Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

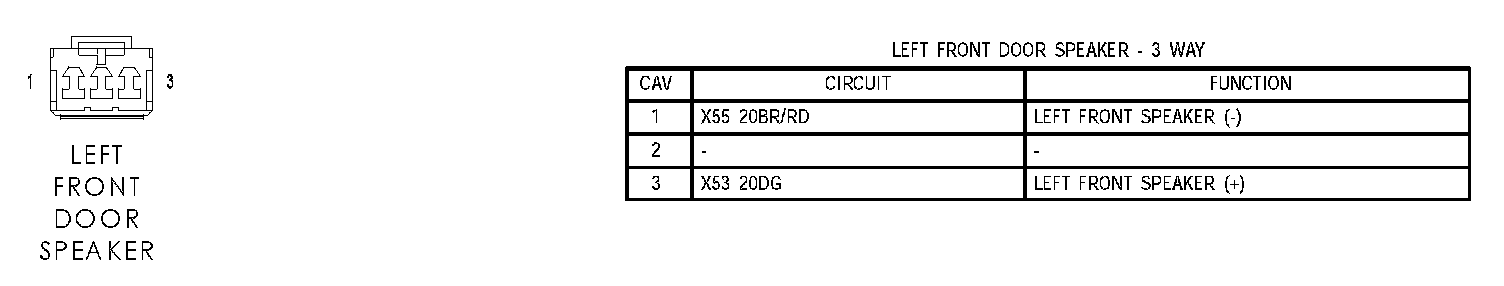

Left Front Door Speaker:

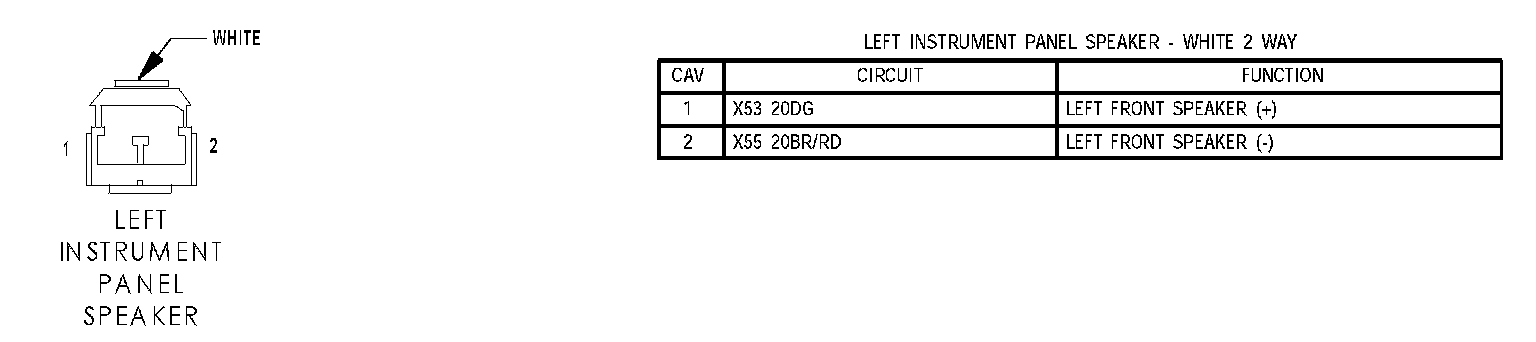

Left Instrument Panel Speaker:
Left Rear Speaker:

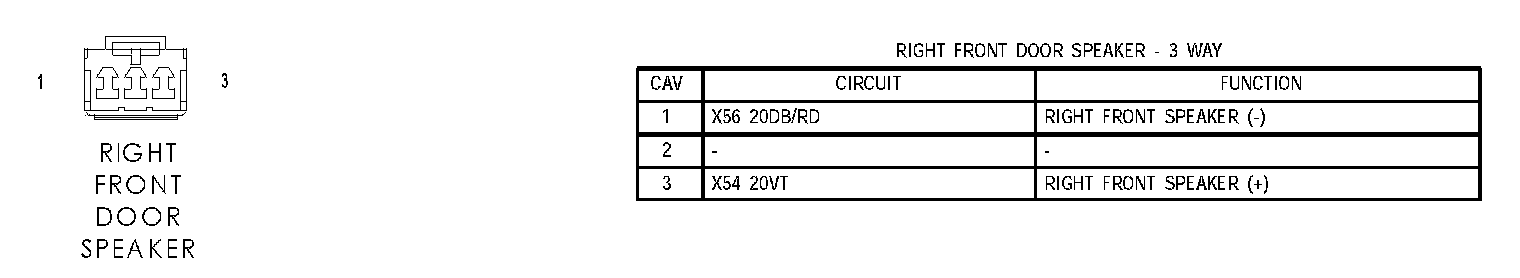

Right Front Door Speaker:

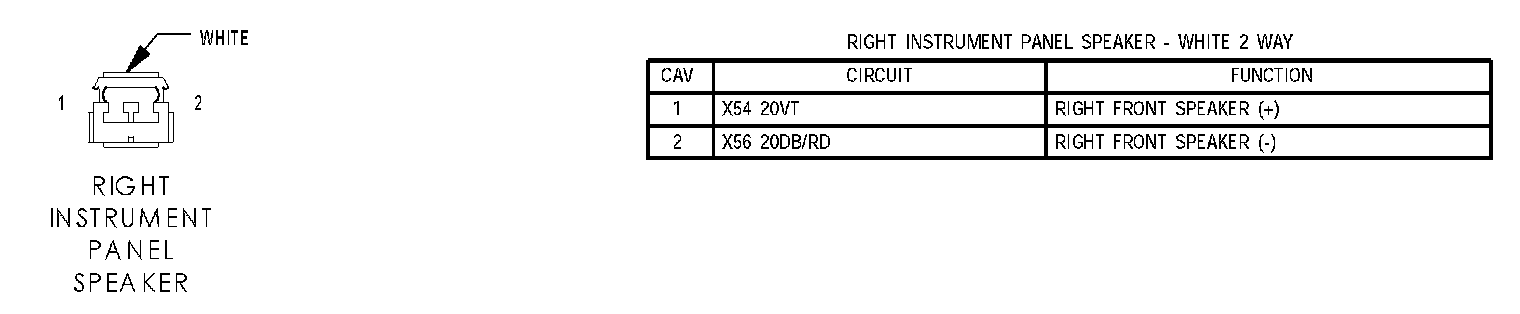

Right Instrument Panel Speaker:

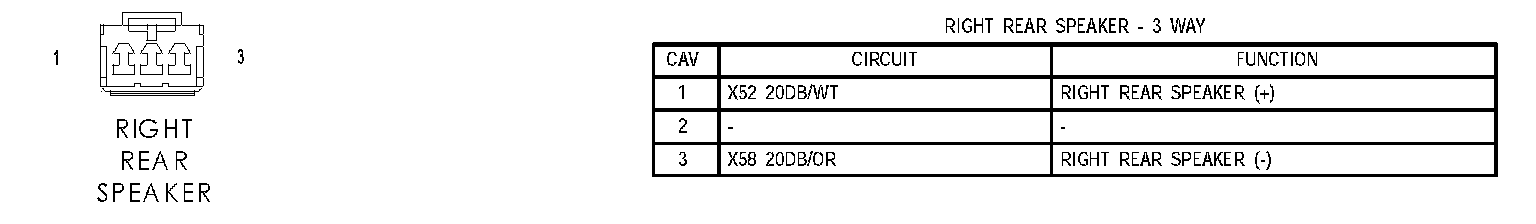

Right Rear Speaker:
