Headlamp
>>
System Diagram
System Diagram

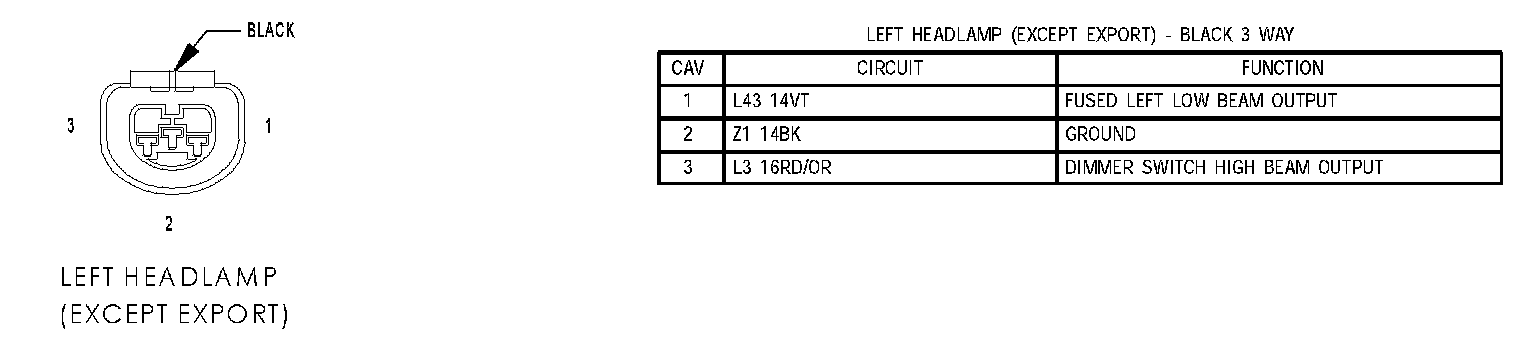

Left Head Lamp (Except Export):

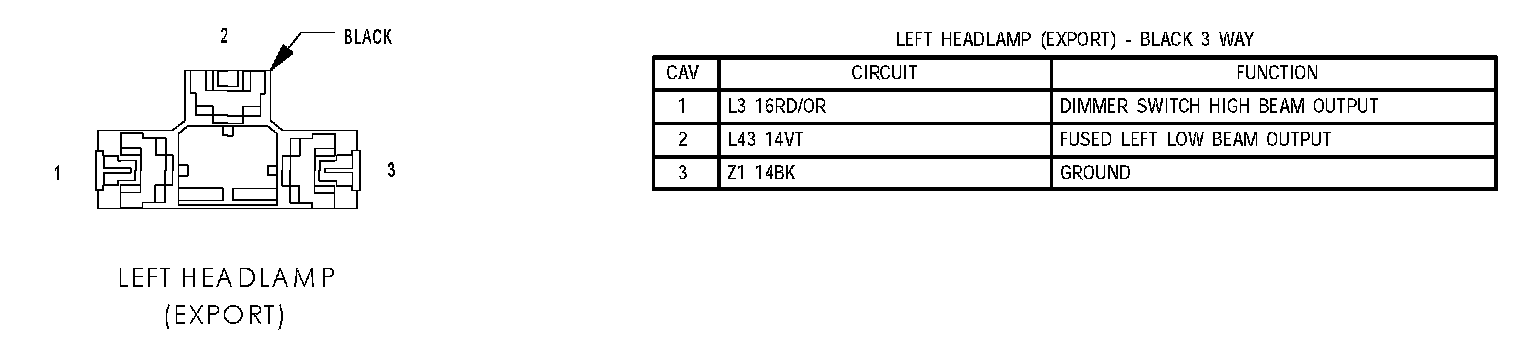

Left Head Lamp (Export):

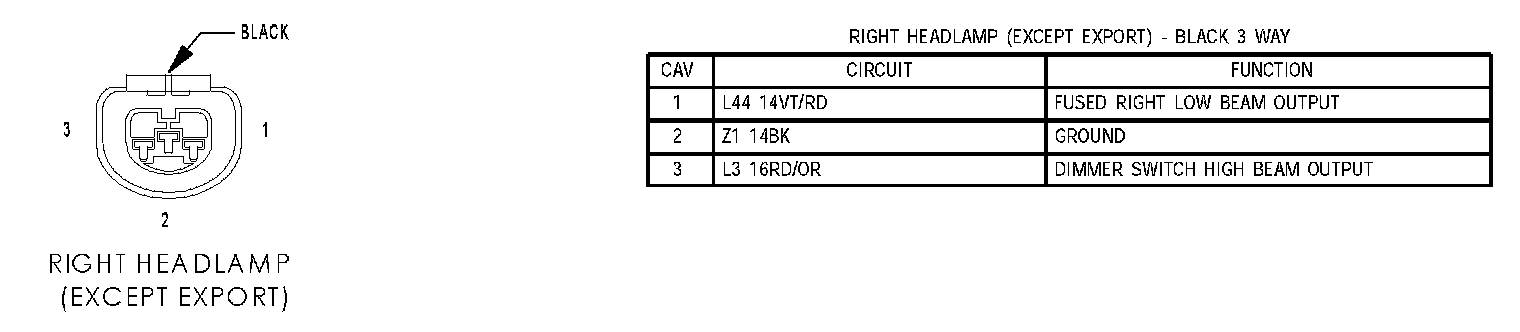

Right Head Lamp (Except Export):

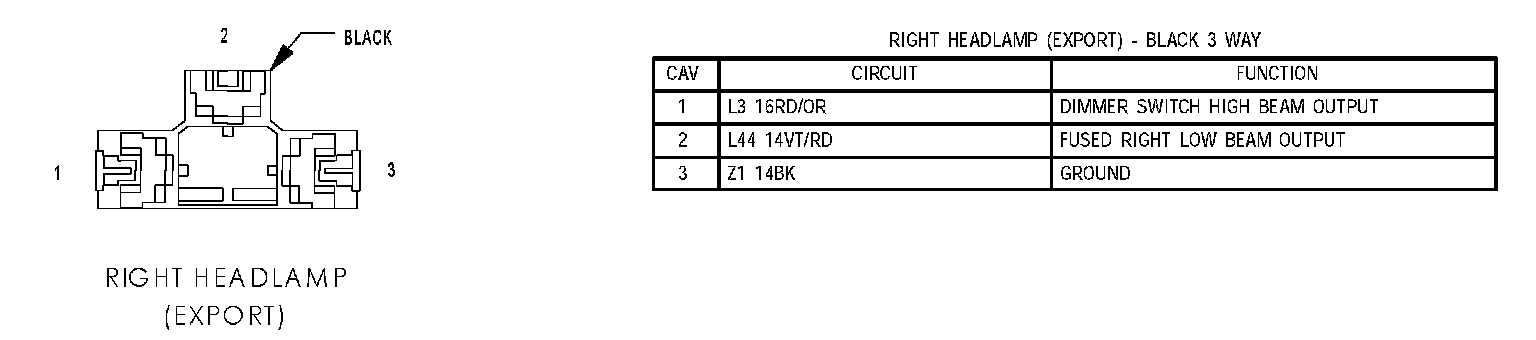

Right Head Lamp (Export):
