Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
Door Switch

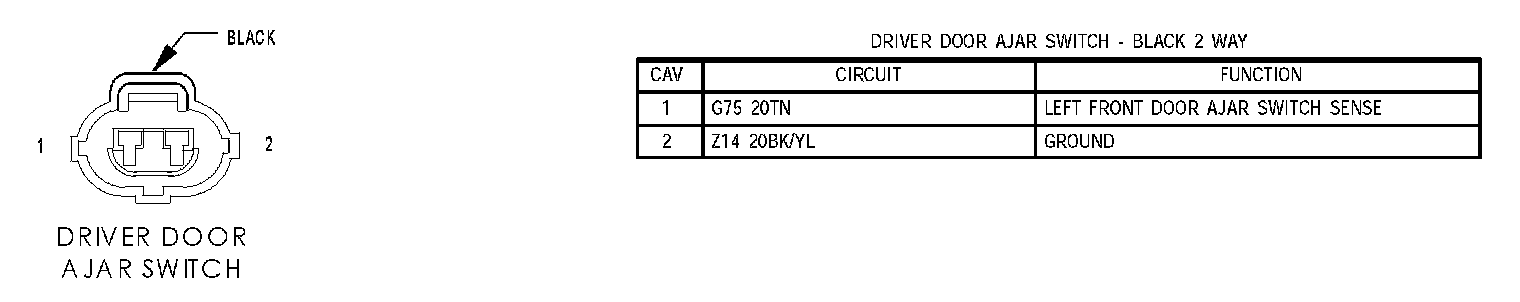

Driver Door Ajar Switch:

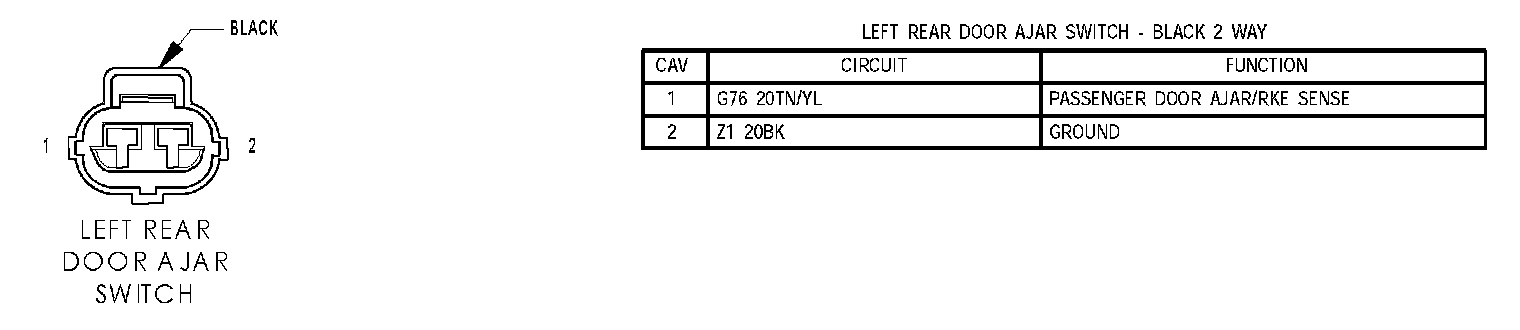

Left Rear Door Ajar Switch:

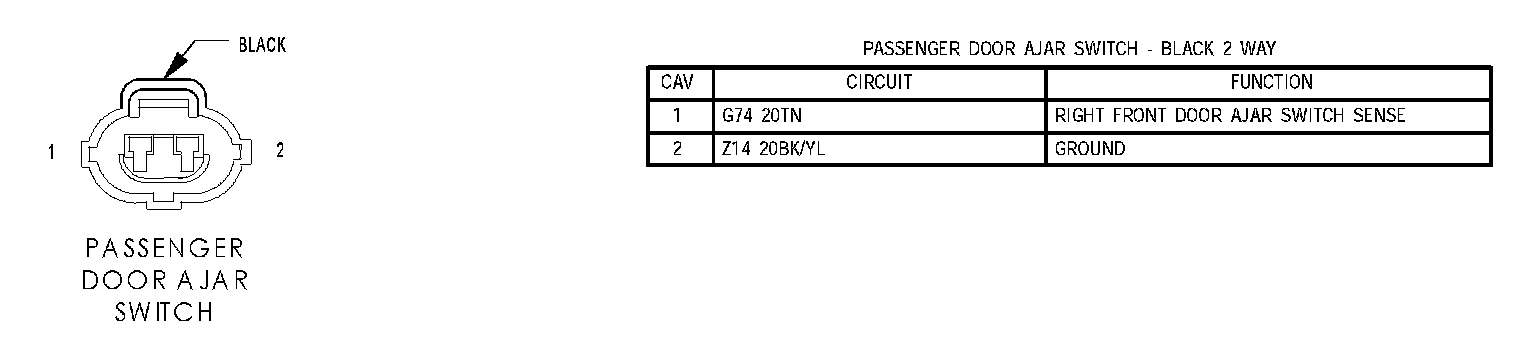

Passenger Door Ajar Switch:

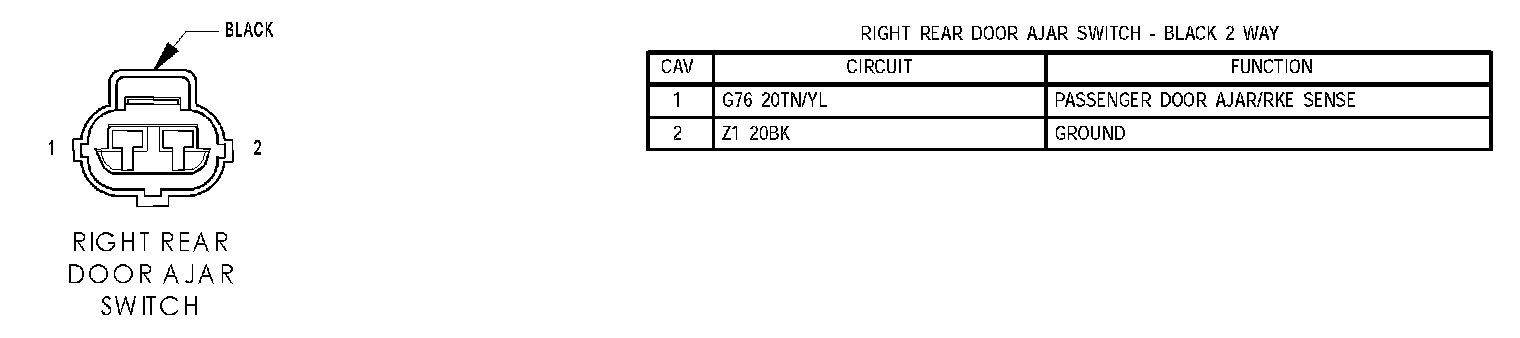

Right Rear Door Ajar Switch:

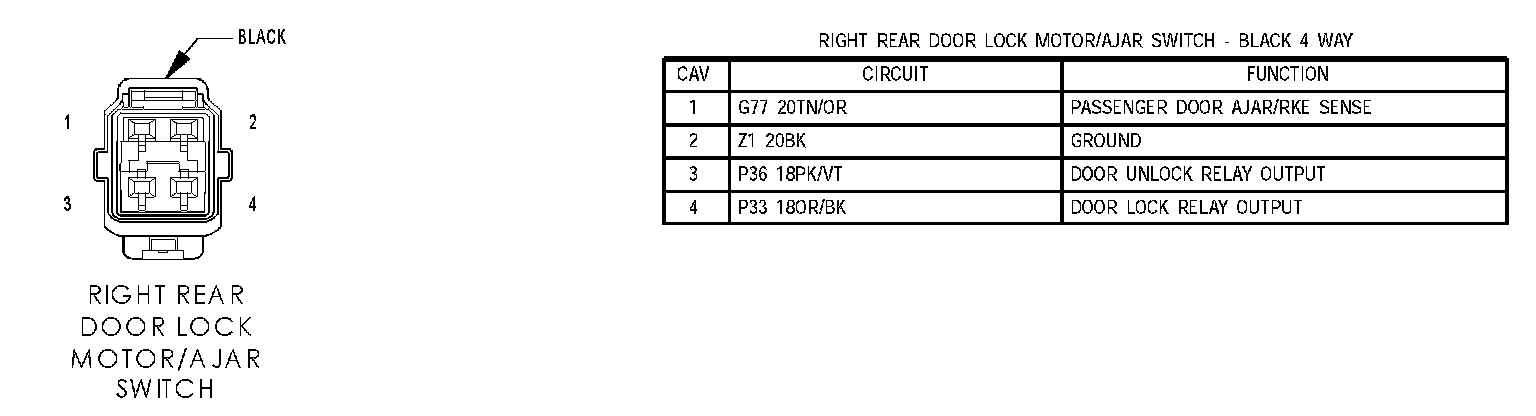

Right Rear Door Lock Motor/Ajar Switch:
