A/C Pressure Sensor/Switch - Cooling Fan
A/C Pressure Sensor/Switch - Cooling Fan

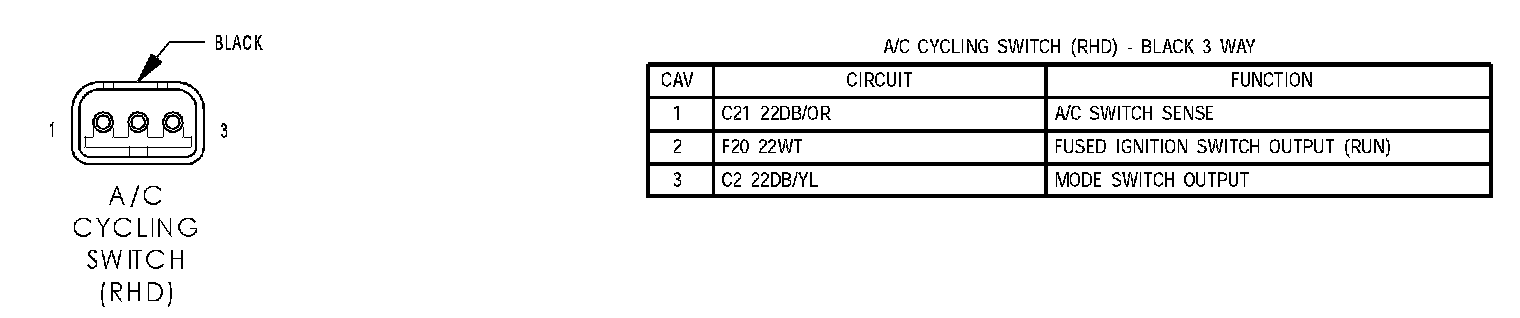

A/c Cycling Switch (RHD):

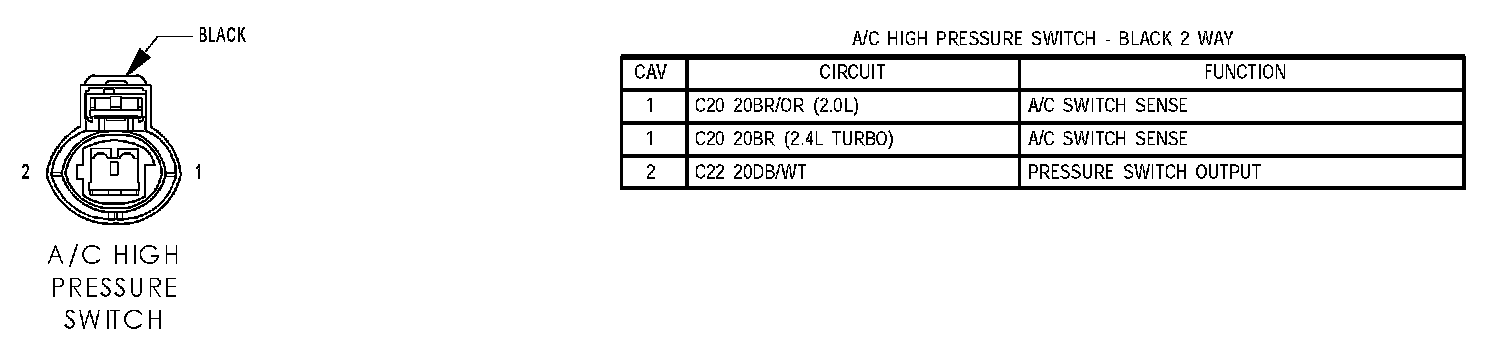

A/c High Pressure Switch:

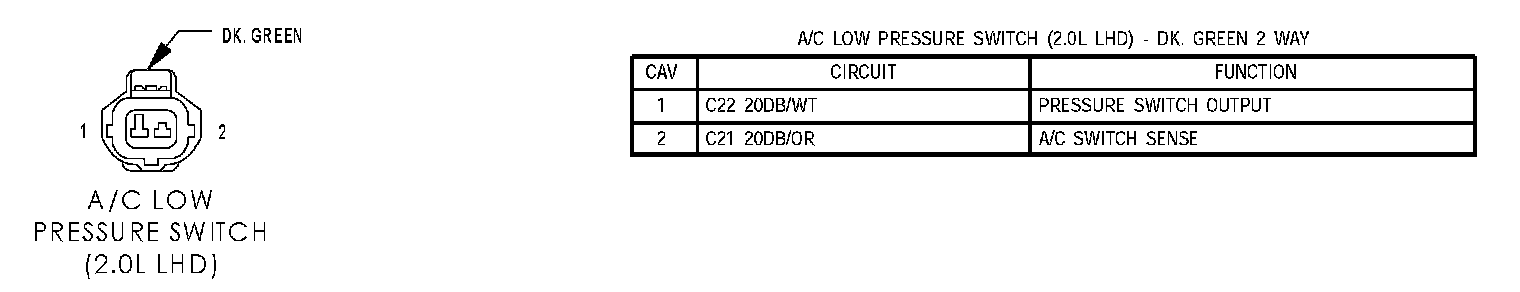

A/c Low Pressure Switch (2.0L LHD):

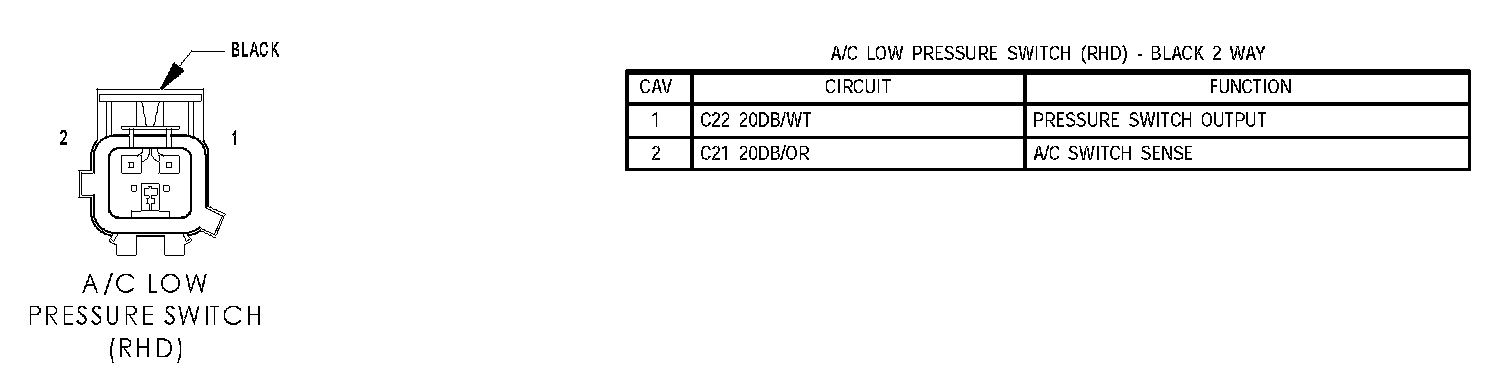

A/c Low Pressure Switch (RHD):
