Spoiler: Service and Repair

SPOILER

REMOVAL

1. Remove the decklid cover. Refer to trim panel.

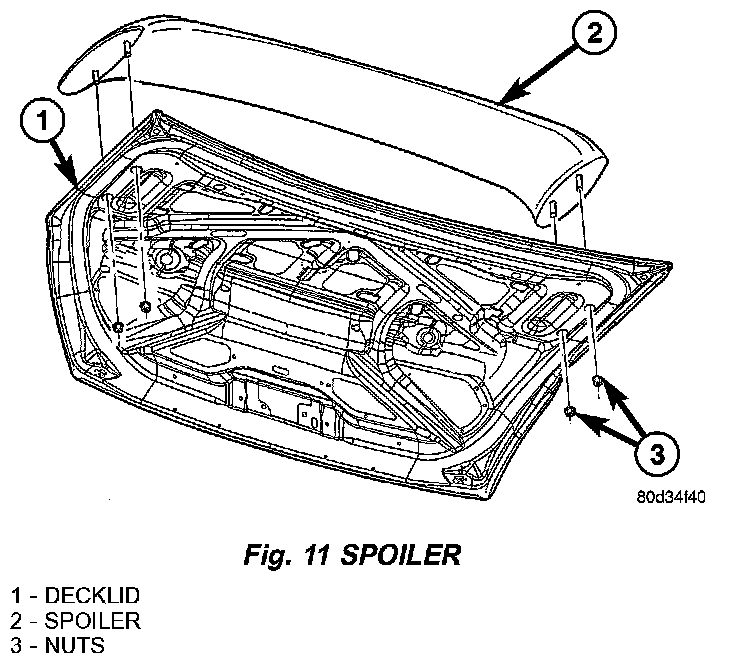

Fig. 11:

2. Remove the four nuts and remove the spoiler. (Fig. 11)

INSTALLATION

1. Install the spoiler and nuts (Fig. 11).
2. Tighten nuts to 3 N.m (30 in.lbs.) torque.
3. Install the decklid cover.
