Instrument Panel

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel top cover.

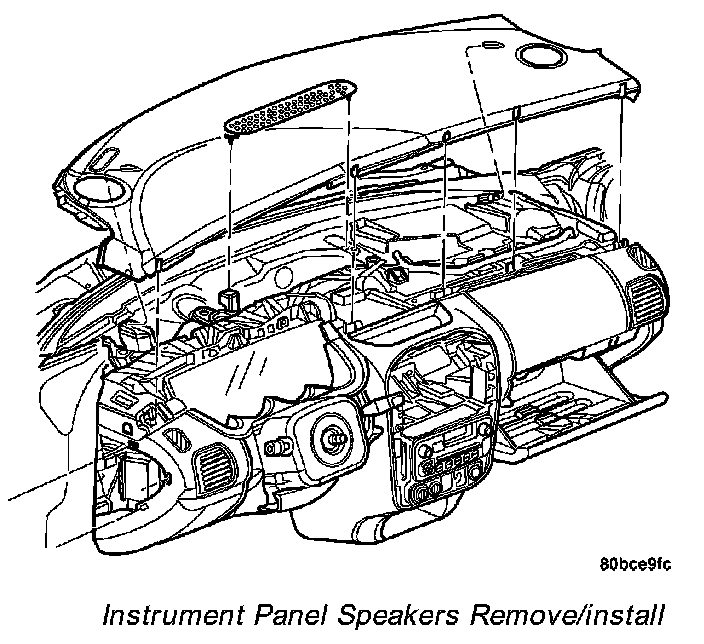

Instrument Panel Speakers Remove/Install:

3. Remove speaker retaining screws.
4. Remove speaker and disconnect wire connector.

INSTALLATION
1. Connect wire harness to the speaker and install speaker to instrument panel.
2. Install speaker retaining screws.
3. Install instrument panel top cover.
4. Connect the battery negative cable.
