Installation
INSTALLATION - PUMP1. Install the power steering pump back in the mounting bracket using the reverse sequence of its removal.

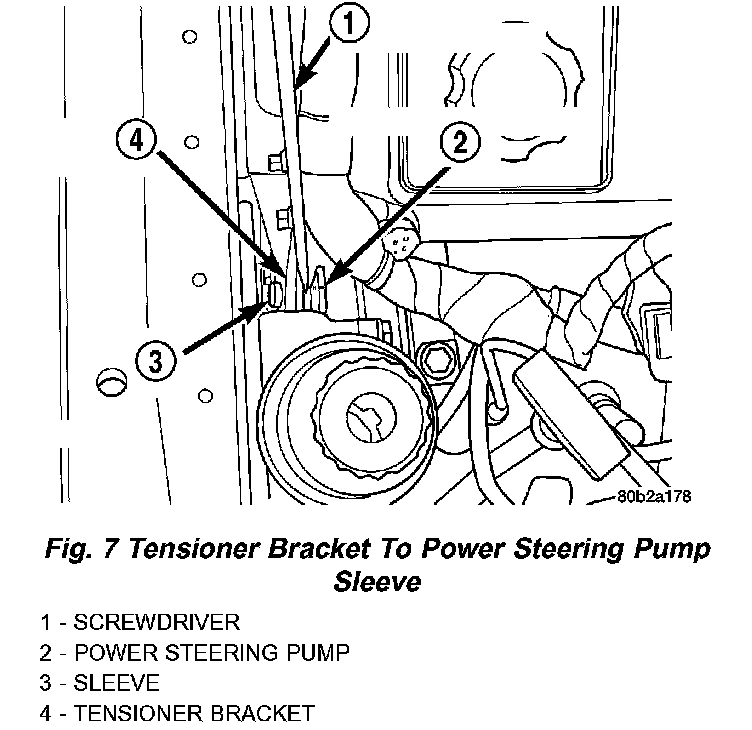

NOTE: The long mounting bolt for the power steering pump is installed in the location where the sleeve is in the tensioner bracket.
2. Loosely install the 3 bolts mounting the power steering pump to the mounting bracket.
NOTE: When tightening the power steering pump mounting bolt going through the sleeve be sure the sleeve is fully seated against the power steering pump.
3. Tighten the power steering pump mounting bolts to a torque of 28 Nm (250 inch lbs.).
4. Install the drive belt on the power steering pump pulley.
5. Securely tighten the lock-nut on the pulley of the drive belt tensioner.

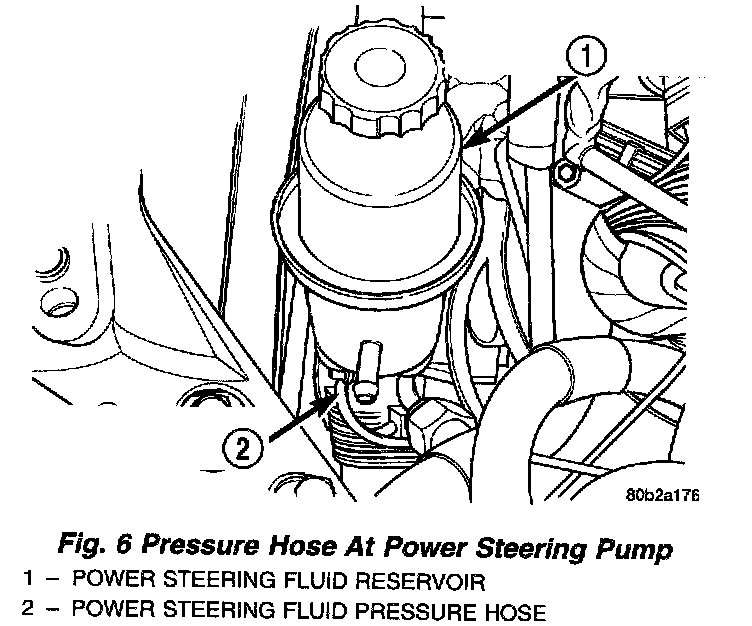

6. Install the power steering pressure hose in the pressure fitting of the power steering pump. Tighten the power steering fluid pressure hose tube nut to a torque of 47 Nm (35 ft. lbs.).
7. Install the power steering fluid return hose on the power steering fluid reservoir. When installing the hose clamp on the power steering fluid return hose be sure the clamp is installed past the upset bead on the nipple of the power steering fluid reservoir.
8. Connect the battery ground cable onto the ground stud located on the strut tower.
9. Perform Power Steering Pump Initial Operation procedure to properly refill and bleed power steering system.
