Resistance Test

INJECTOR CHECK

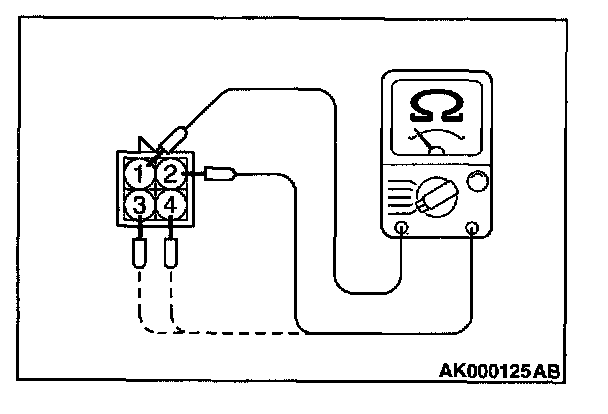

1. Disconnect the injector intermediate connector.
2. Measure the resistance between the injector intermediate connector terminals.

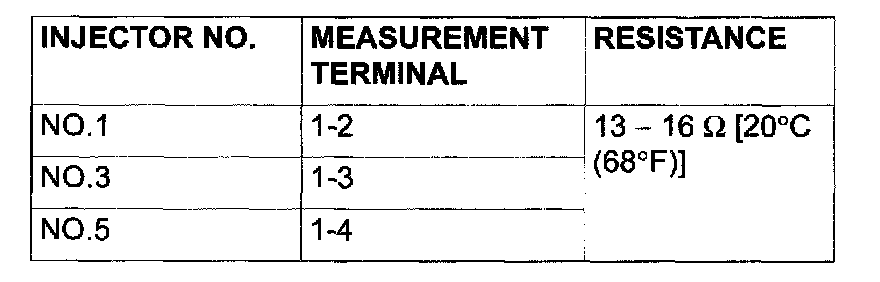

Standard value:





3. Connect the injector intermediate connector.

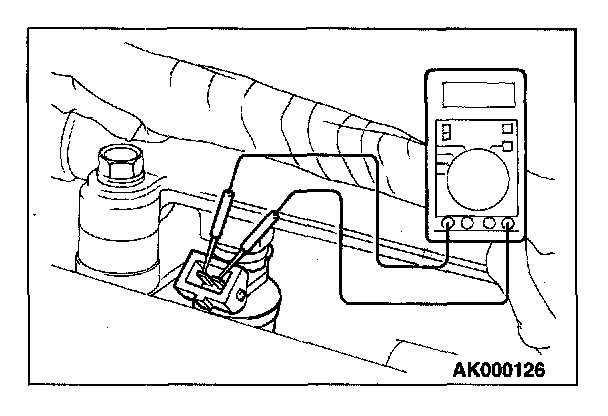

1. Disconnect the injector connector.
2. Measure the resistance between injector side connector terminals 1 and 2.
Standard value: 13 - 16 ohm @ 20 °C (68 °F)
3. Connect the injector connector.
