Home >> Dodge >> 2003 >> Stratus Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Chart

Symptom Chart

NOTE: Check that the engine control module (ECM) or powertrain control module (PCM) ground circuit is normal before checking for the cause of the problem.

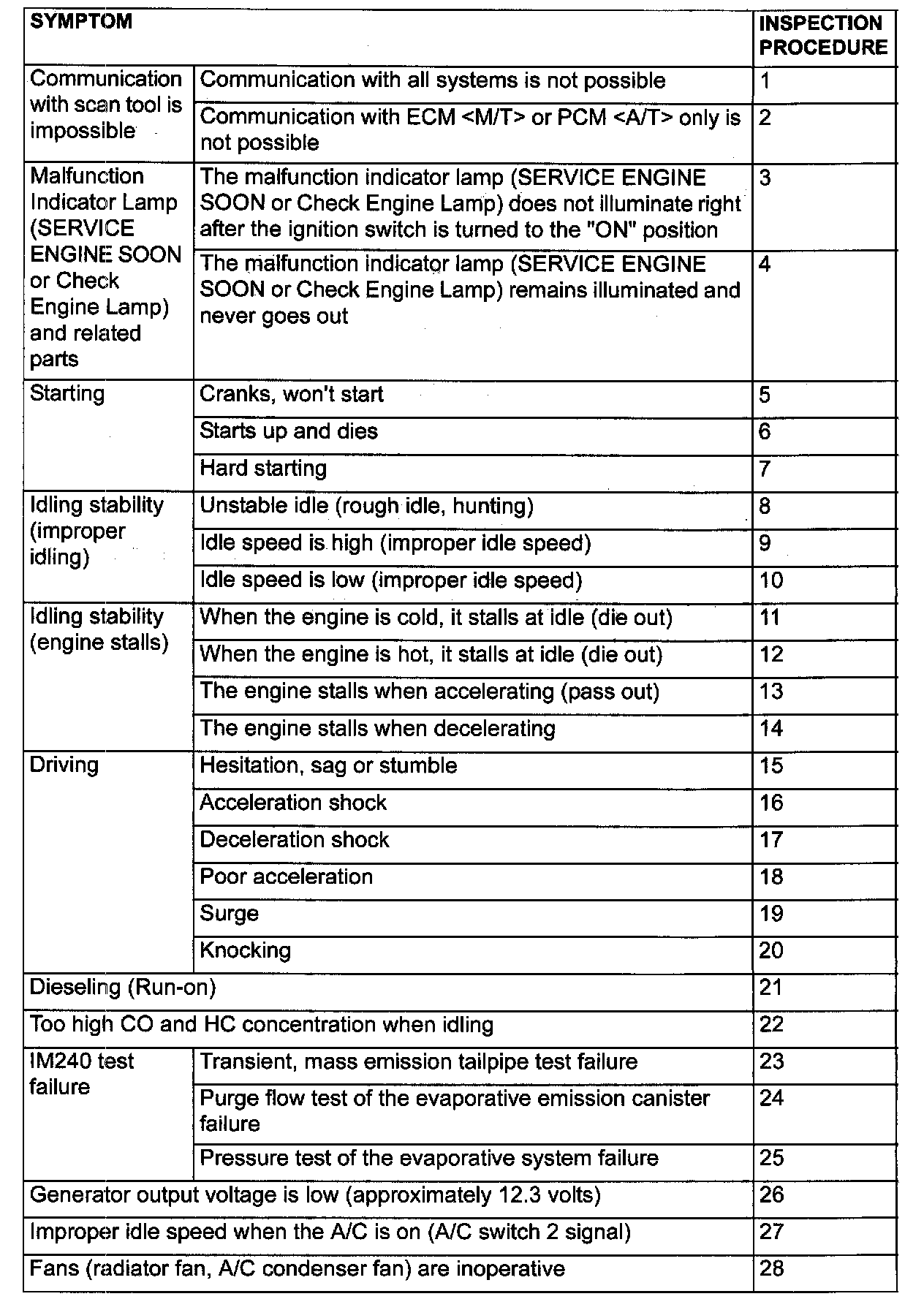

Symptom Chart:




Symptom Chart 2:
