Shift Boot: Service and Repair

T350 - Manual Transmission
GEAR SHIFT KNOB/BOOT ASSEMBLY
REMOVAL
1. Disengage boot from console by lifting up to free retaining tabs.

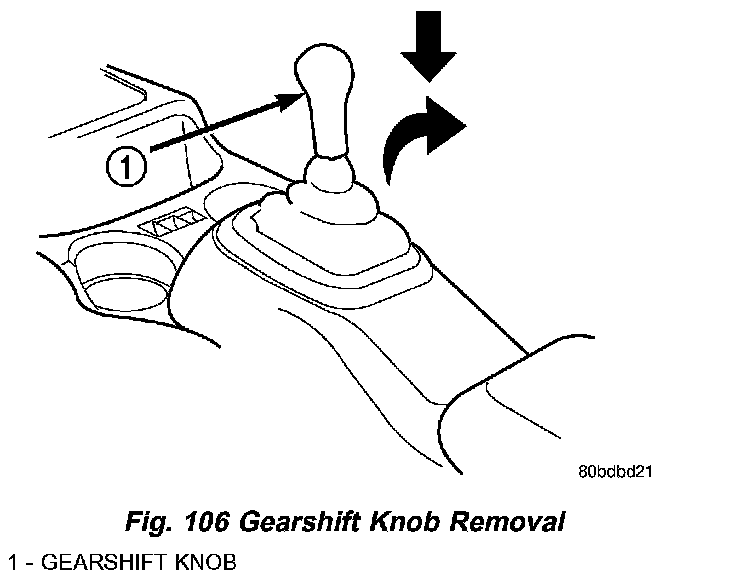

2. Push down on knob and rotate clockwise to remove (Fig. 106).

INSTALLATION
1. Install knob/boot assembly to shifter lever, align knob to three o'clock position, push knob down to engage spring and rotate counter clockwise.
2. Locate boot to console at forward tab and secure to console with retaining tabs.
