Standard Procedure - Fluid Drain and Fill

T350 - Manual Transmission
STANDARD PROCEDURE - FLUID DRAIN AND FILL

NOTE: The fluid required in this transaxle is Mopar ATF +4 (Automatic Transmission Fluid - Type 9602).

T350 - Manual Transmission:

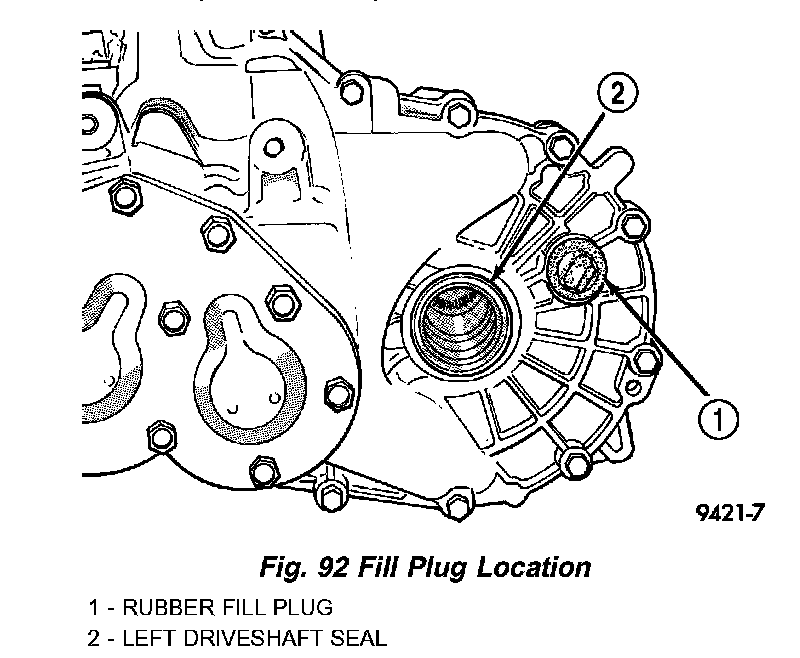

All T350 transaxles are equipped with a fill plug. The fill plug is located on the left side of the transaxle differential area (Fig. 92). The fluid level should be within 3/16 inch from the bottom of the transaxle fill hole (vehicle must be level when checking).

T350 - Manual Transmission:

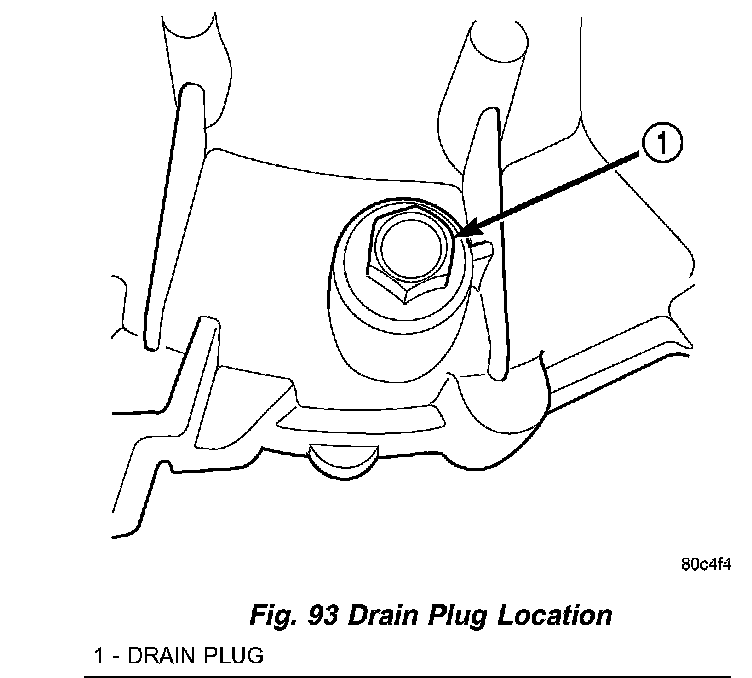

All T350 transaxles are equipped with a drain plug. The drain plug is located on the lower right side of the transaxle differential housing (Fig. 93). Tighten drain plug to 28 Nm (250 inch lbs.).

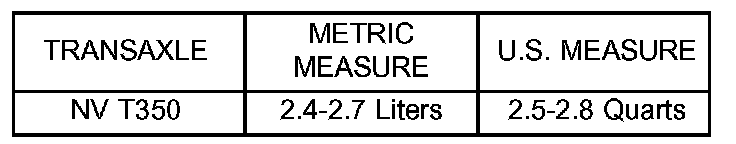

Fill transaxle to capacity. Refer to chart shown. Wipe the outside of the transaxle if any lubricant spills.
