With Automatic Transmission
Starter Motor - 4 Speed Auto ReplacementREMOVAL
Automatic Transmission
1. Disconnect the negative battery cable.
2. Remove the air cleaner box, refer to the air cleaner box removal/installation.

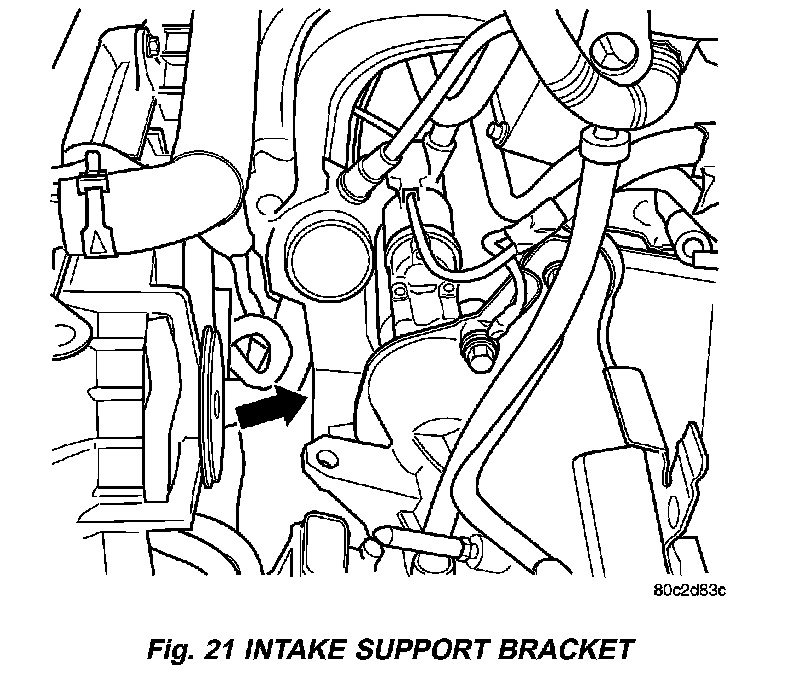

Fig.21 Intake Support Bracket:
3. Remove the 2 upper bracket bolts for the intake support (Fig. 21).
4. Raise vehicle and support.

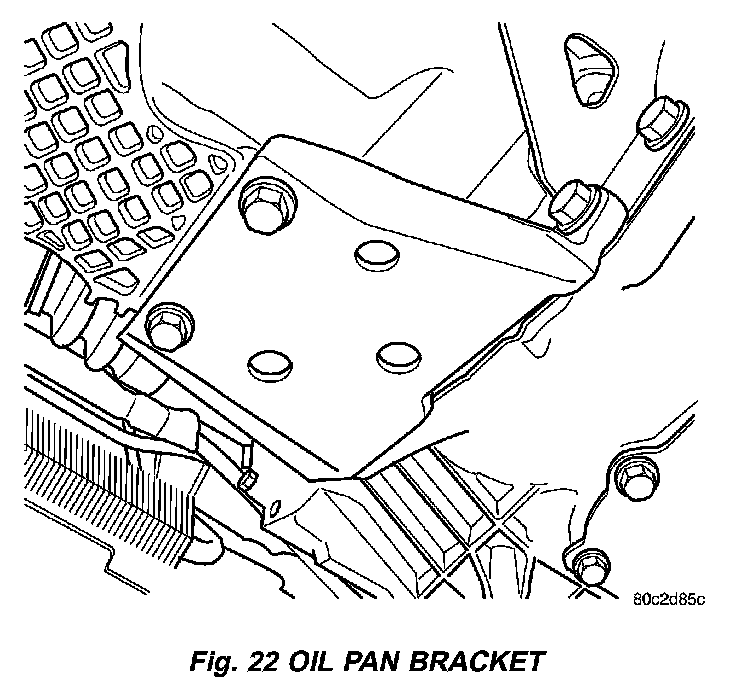

Fig.22 Oil Pan Bracket:
5. Remove the oil pan support bracket (Fig. 22).

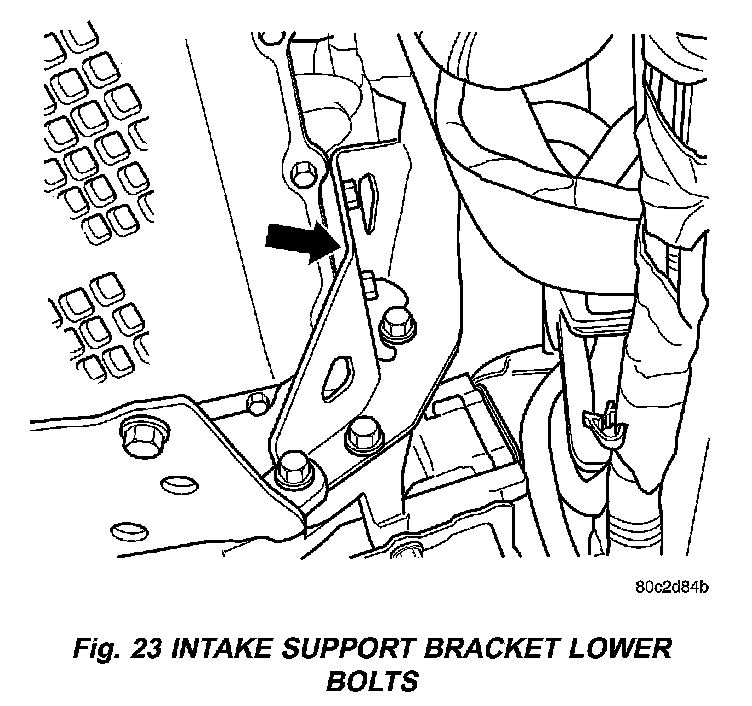

Fig.23 Intake Support Bracket Lower Bolts:
6. Remove the intake support bracket (Fig. 23).
7. Disconnect the battery cable and solenoid connection from the starter.
8. Remove the starter bolts.
9. Remove starter.
INSTALLATION
Automatic Transmission
1. Install starter.
2. Install the starter bolts.
3. Connect the battery cable and solenoid connection from the starter.
4. Install the intake support bracket (Fig. 23).
5. Install the oil pan support bracket (Fig. 22).
6. Lower vehicle.
7. Install the 2 upper bracket bolts for the intake support (Fig. 21).
8. Install the air cleaner box, refer to the air cleaner box removal/installation.
9. Connect the negative battery cable.
