Power Distribution
>>
Wiring Diagram Index
>>
Fuse Block
Fuse Block

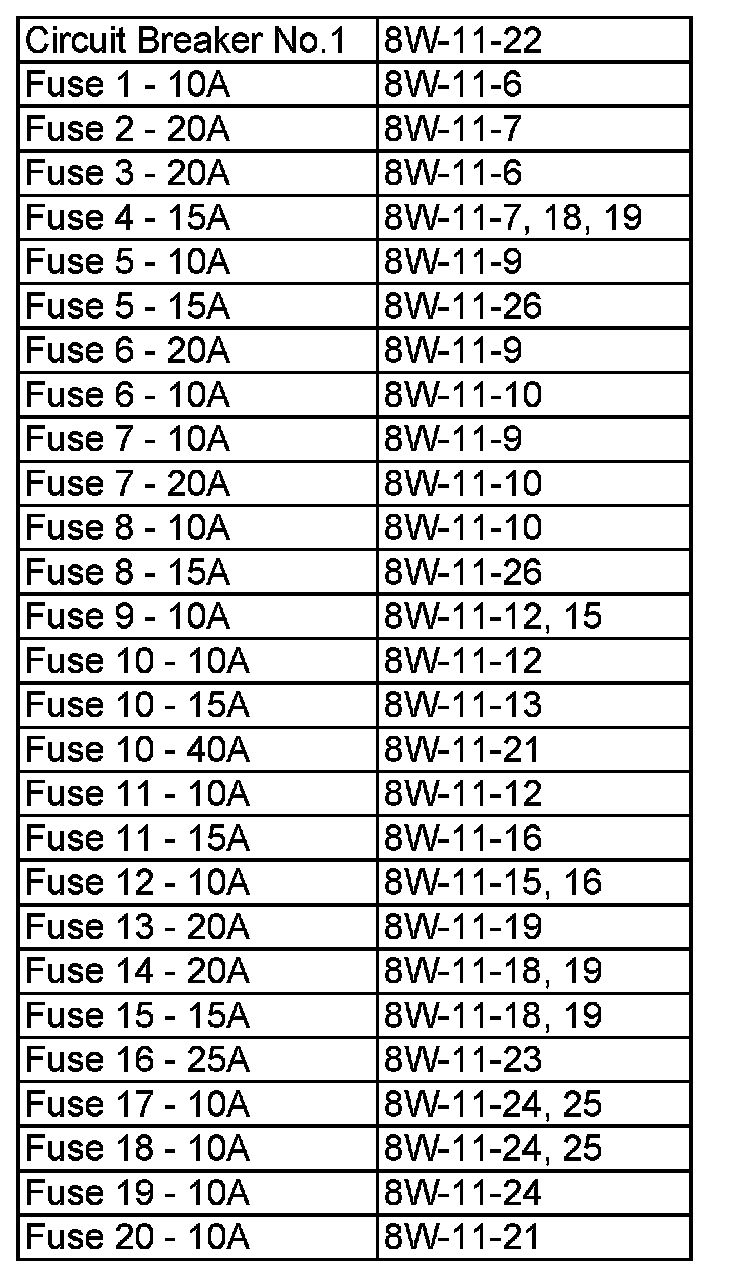

Fuse Block Circuit Breaker No. 1 - Fuse 20:
