Home >> Dodge >> 2003 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Circuit Breaker >> Locations

Circuit Breaker: Locations

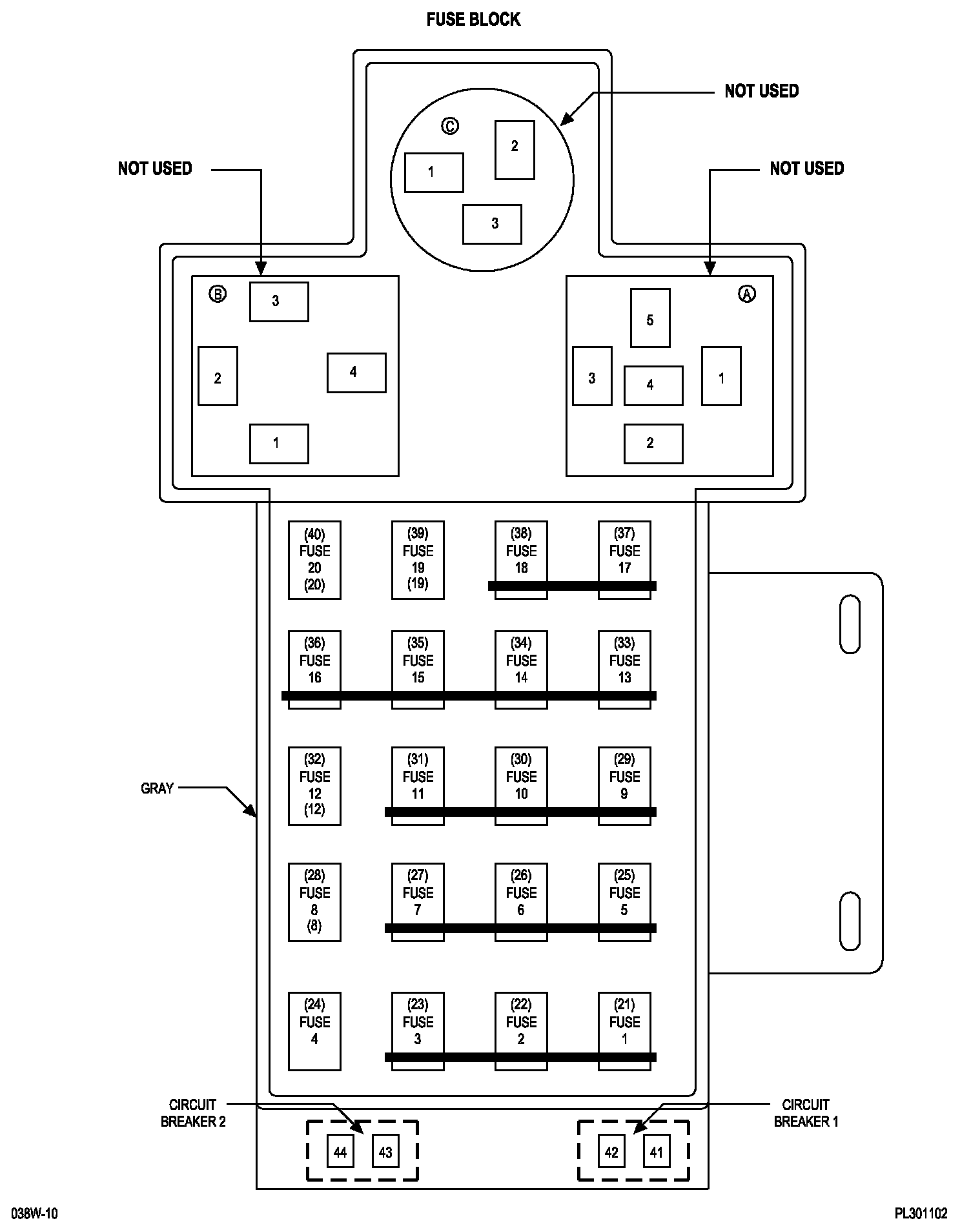

8w-11-2 (LHD):

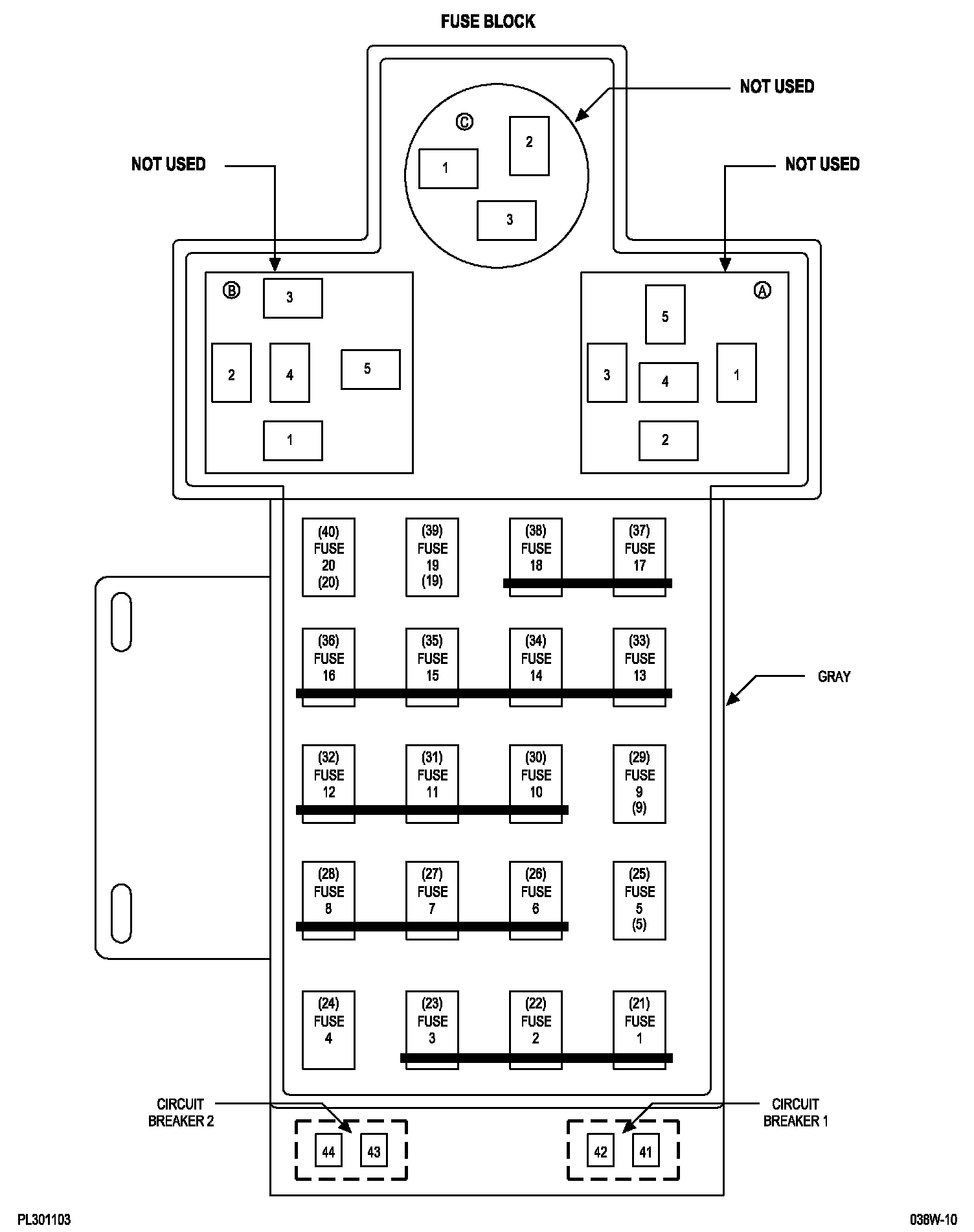

8w-11-3 (RHD):

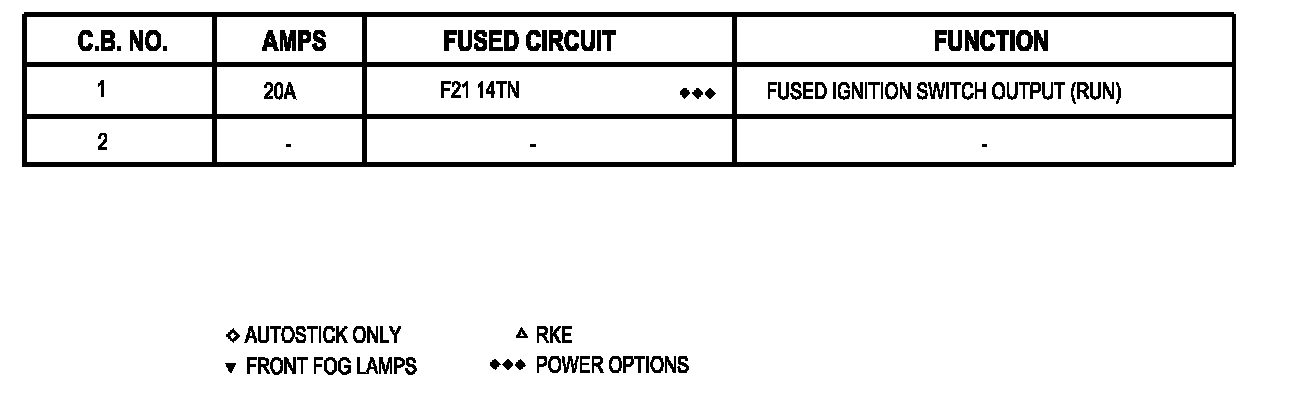

Circuit Breakers:

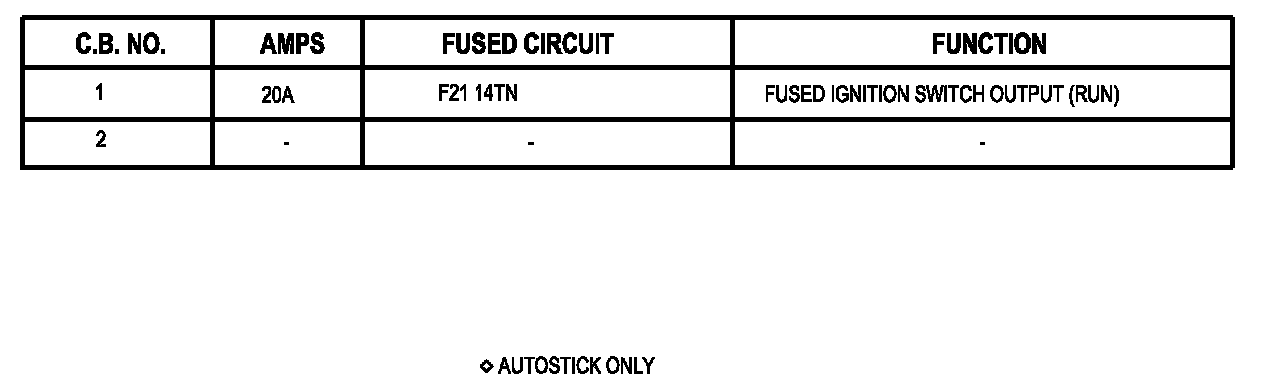

Circuit Breakers:
