Home >> Dodge >> 2003 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Ambient Temperature Sensor / Switch HVAC >> Locations

Ambient Temperature Sensor / Switch HVAC: Locations

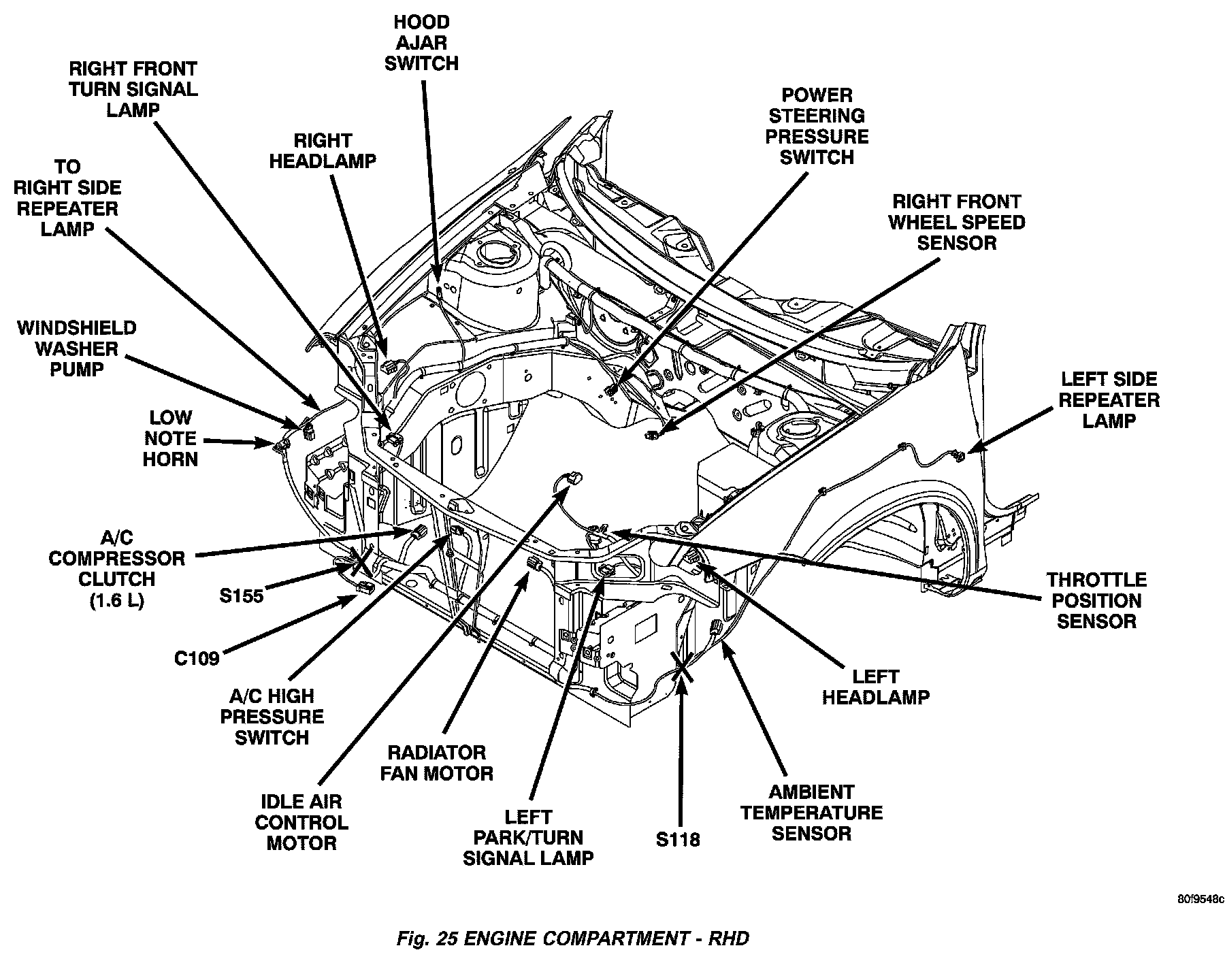

Fig. 25 Engine Compartment - RHD:
