Connector Locations

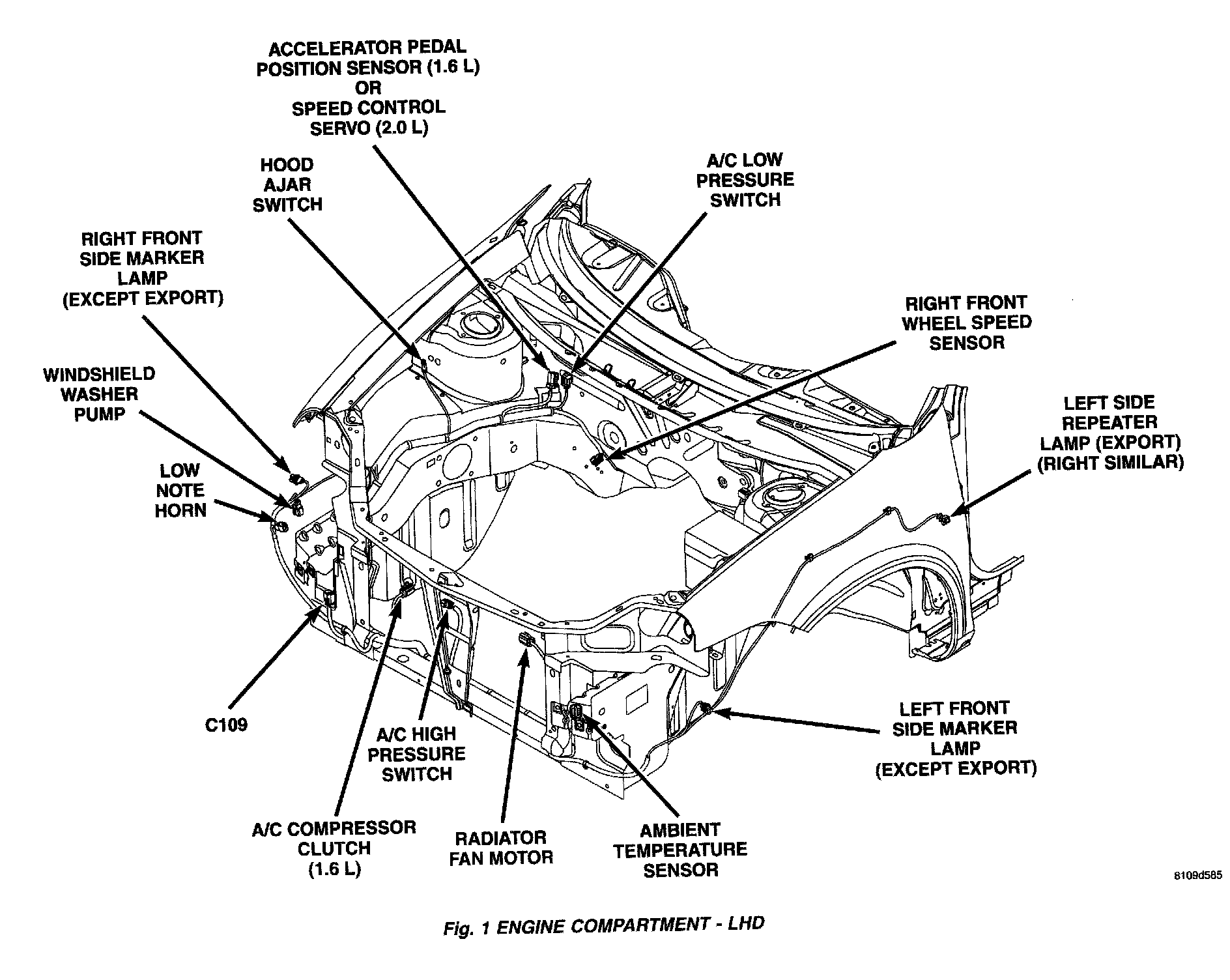

Fig. 1 Engine Compartment - LHD:

Fig. 2 Engine Compartment (Left Side) - LHD:

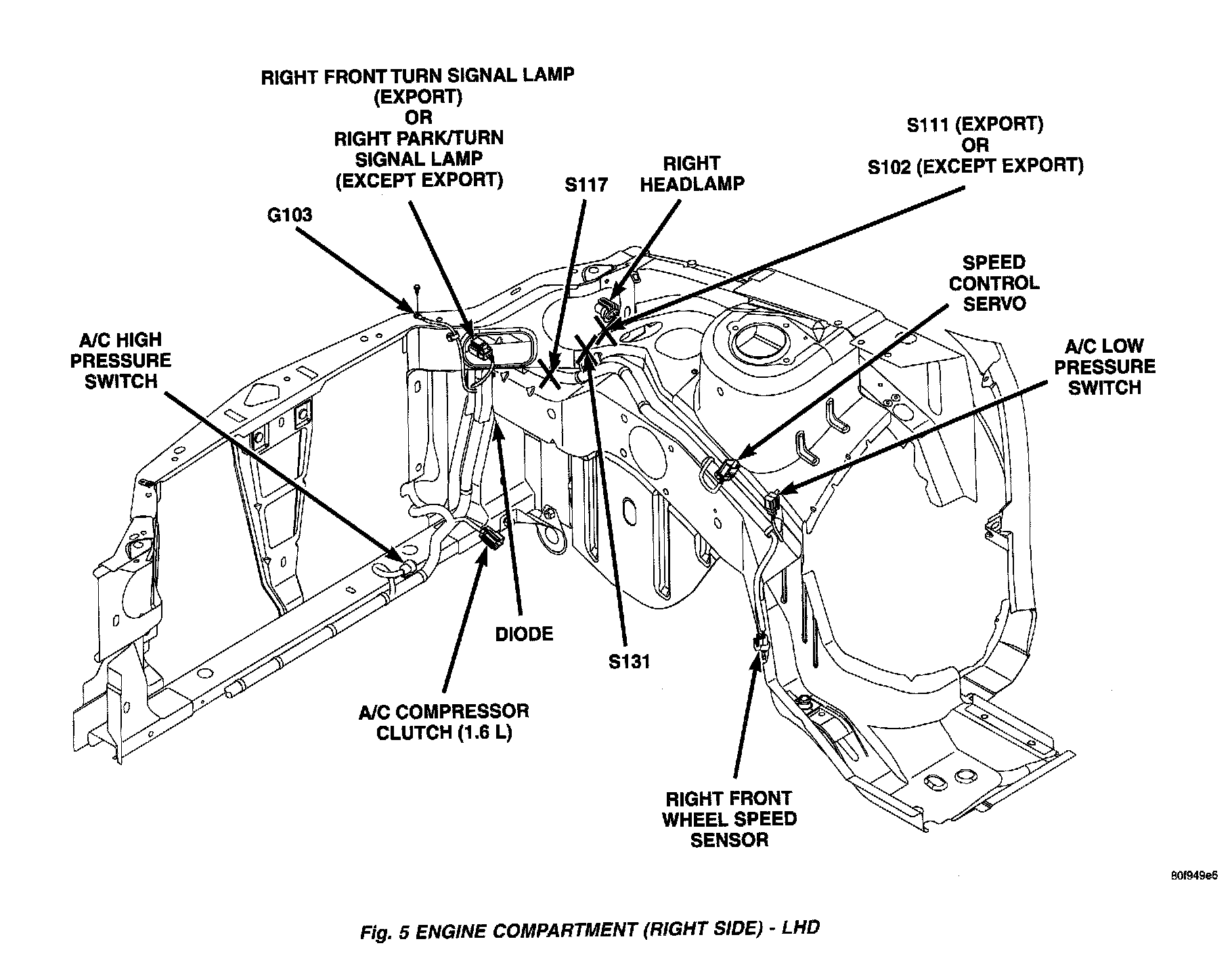

Fig. 5 Engine Compartment (Right Side) - LHD:

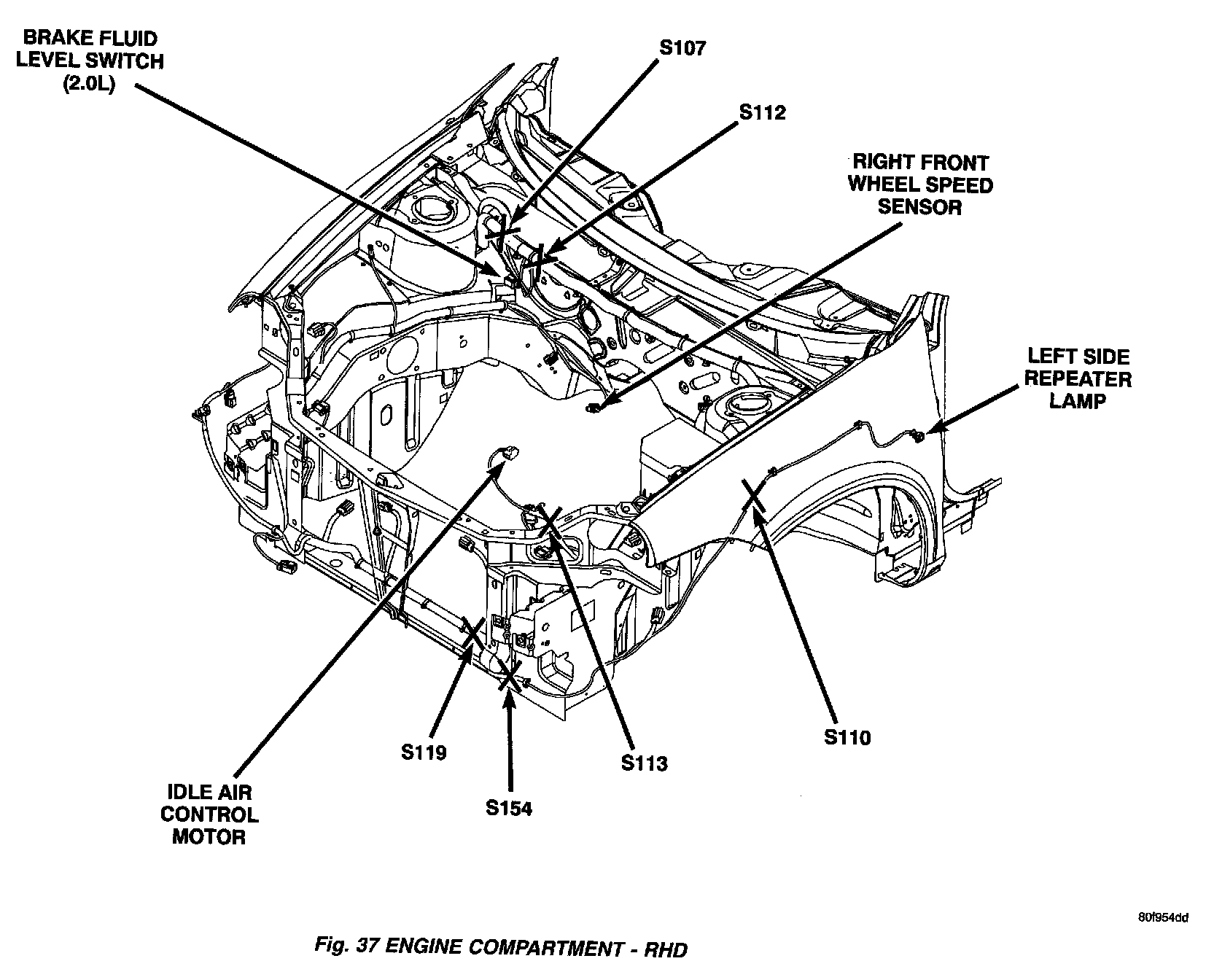

Fig. 36 Engine Compartment - RHD:

Fig. 37 Engine Compartment - RHD:

Fig. 38 Engine Compartment (Left) - RHD:

Fig. 39 Engine Compartment (Left Front) - RHD:

Fig. 40 Engine Compartment (Right Side) - RHD:
