Powertrain Control Module
REMOVAL - 2.0L1. Disconnect the negative battery cable.

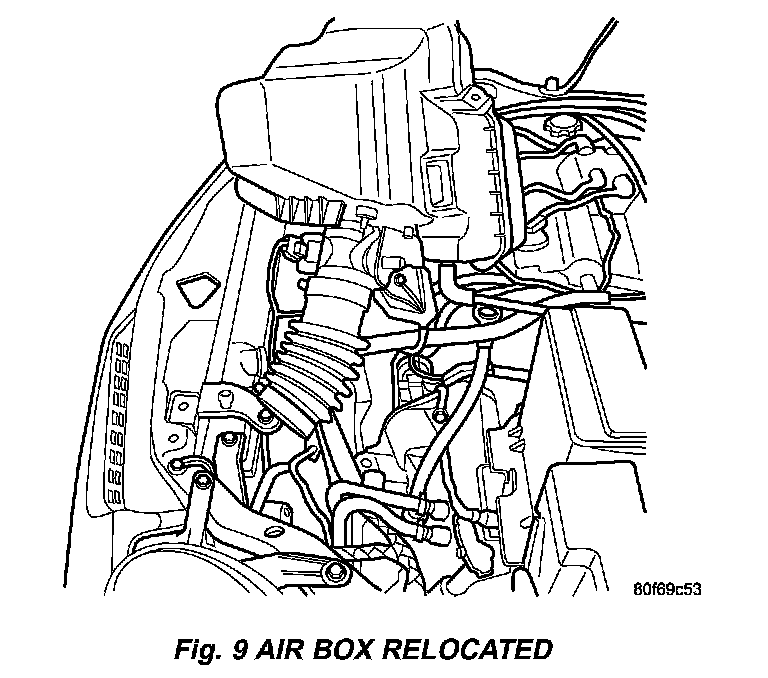

Fig.9 Air Box Relocated:
2. Remove and relocate the air cleaner box, refer to the Engine/Air Intake/Air Cleaner Housing for more information.

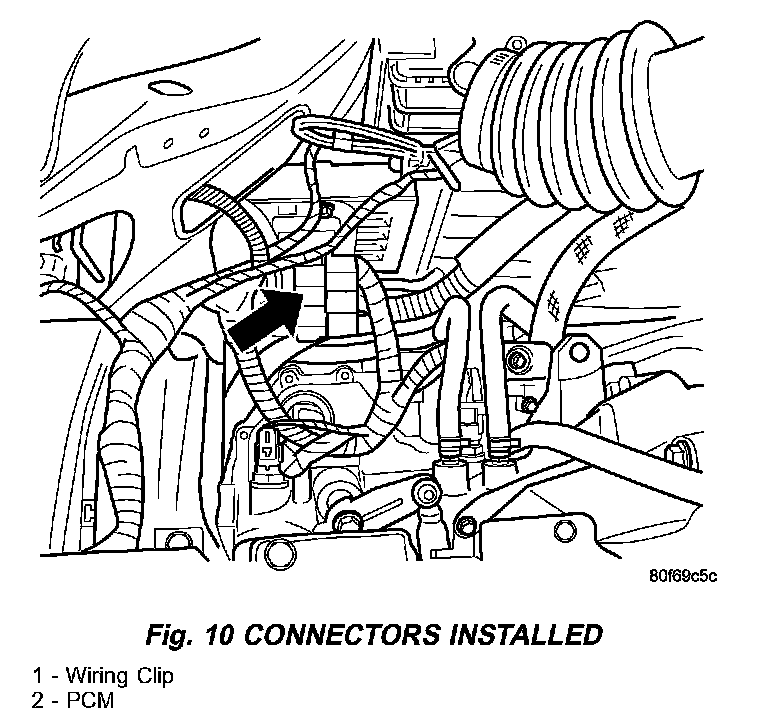

Fig.10 Connectors Installed:
3. Unlock and disconnect the electrical connectors at the PCM.

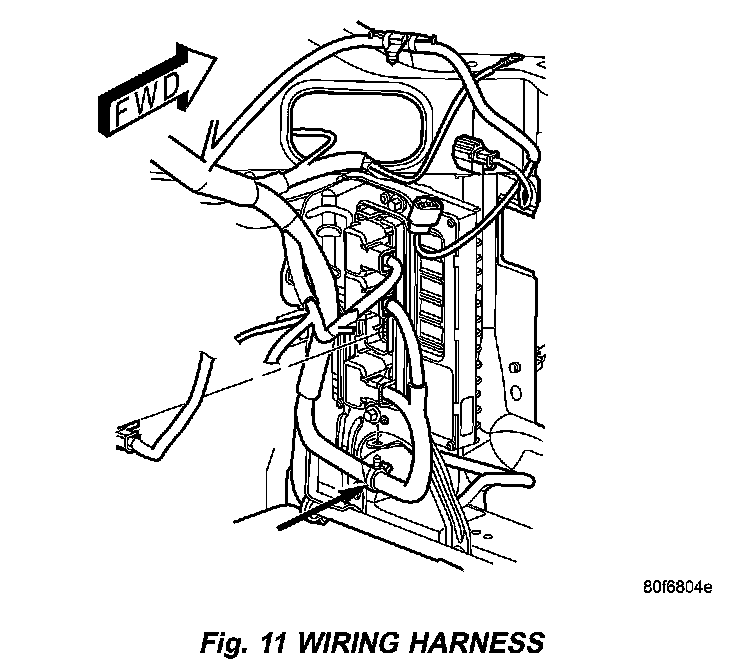

Fig.11 Wiring Harness:
4. Remove the wiring harness clip from the PCM bracket.

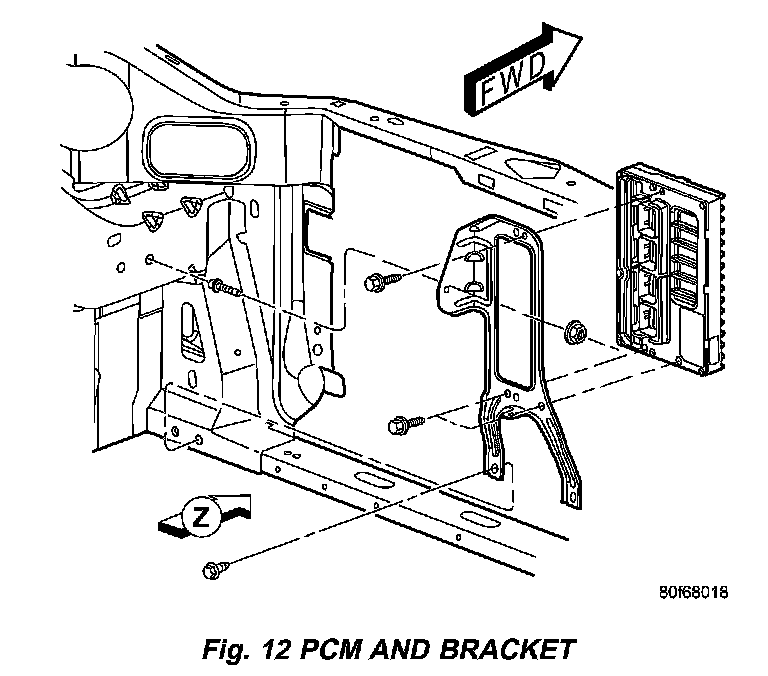

Fig.12 PCM And Bracket:
5. Remove the mounting bolts from the bottom of the PCM bracket.
6. Remove the nut.
7. Remove the assembly, PCM and bracket.
INSTALLATION - 2.0L
1. Install the assembly, PCM and bracket.
2. Loose install the mounting nut.
3. Install the mounting bolts to the bottom of the PCM bracket.
4. Tighten the mounting nut, tighten to.
5. Install the wiring harness clip to the PCM bracket.
NOTE: The electrical connector for the PCM are COLOR Coded.
6. Connect the electrical connectors and lock at the PCM.
7. Install the air cleaner box, refer to the Engine/Air Intake/Air Cleaner Housing for more information.
8. Connect the negative battery cable.
