Turn Signal Lamp: Diagrams

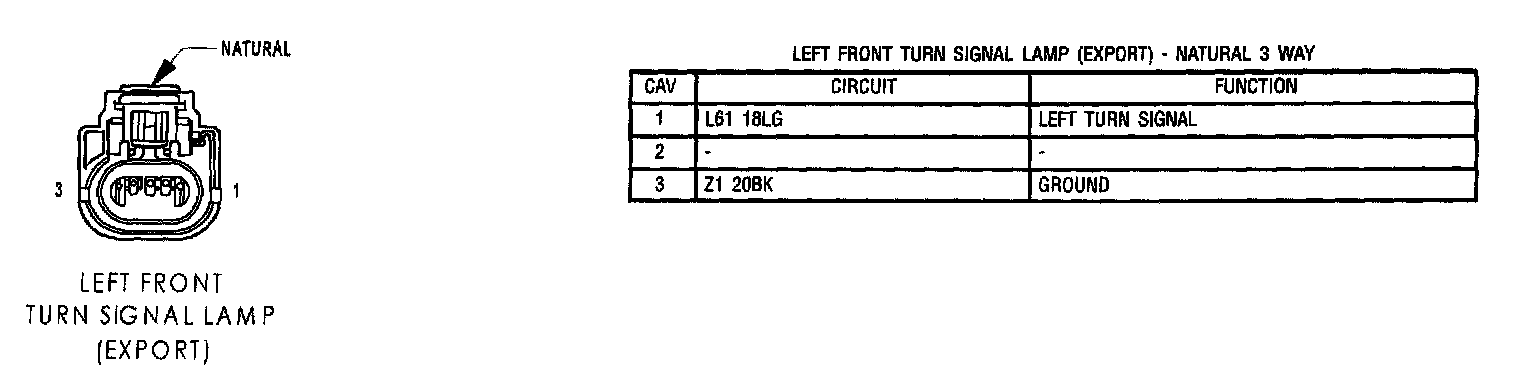

Left Front Turn Signal Lamp (Export):

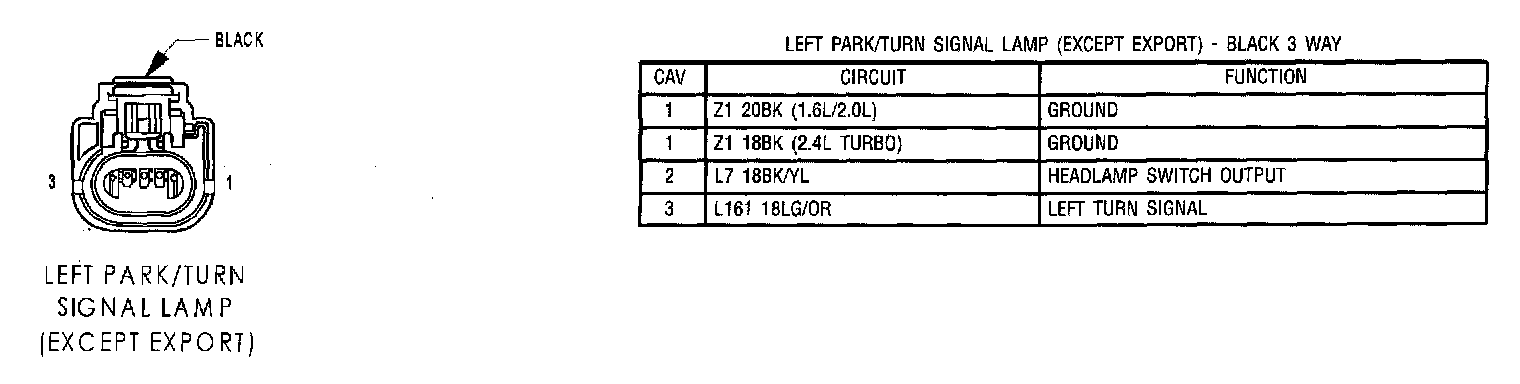

Left Park/Turn Signal Lamp (Except Export):

Left Rear Turn Signal Lamp (Export):

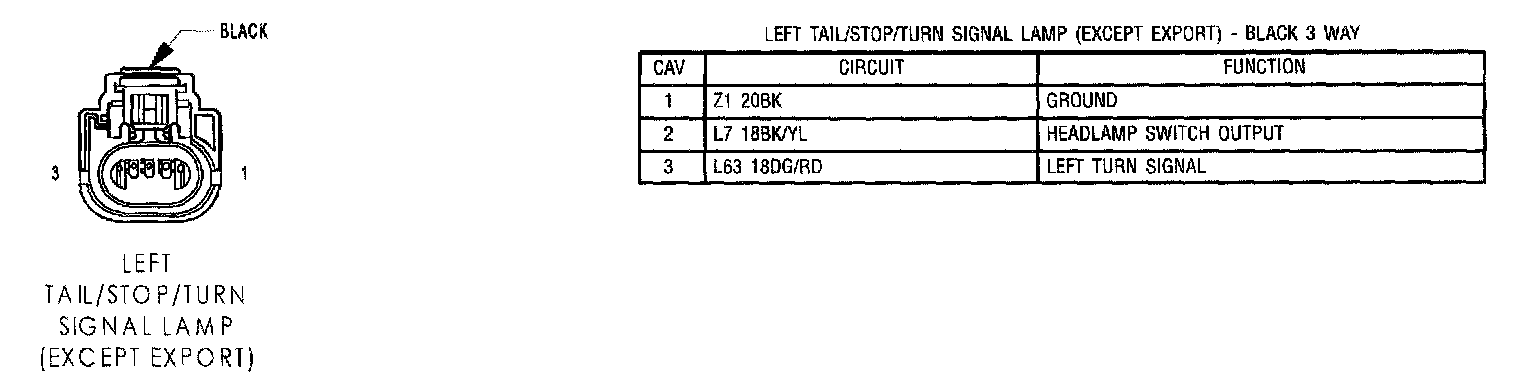

Left Tail/Stop/Turn Signal Lamp (Except Export):

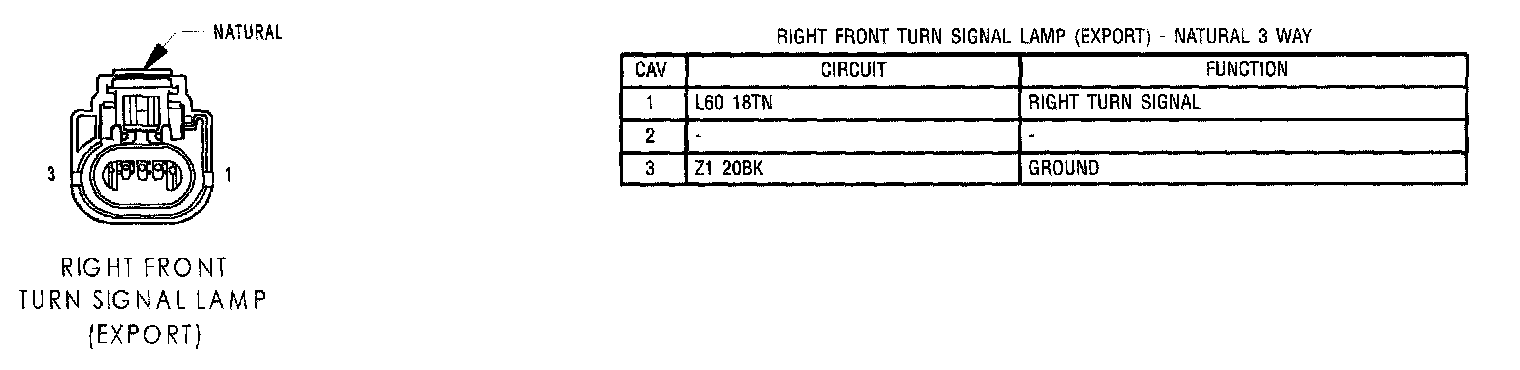

Right Front Turn Signal Lamp (Export):

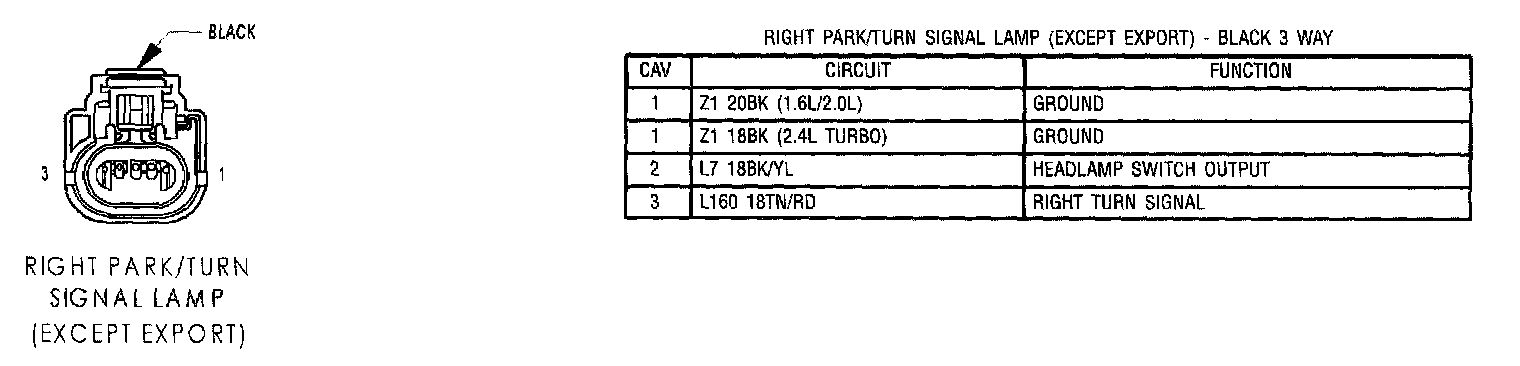

Right Park/Turn Signal Lamp (Except Export):

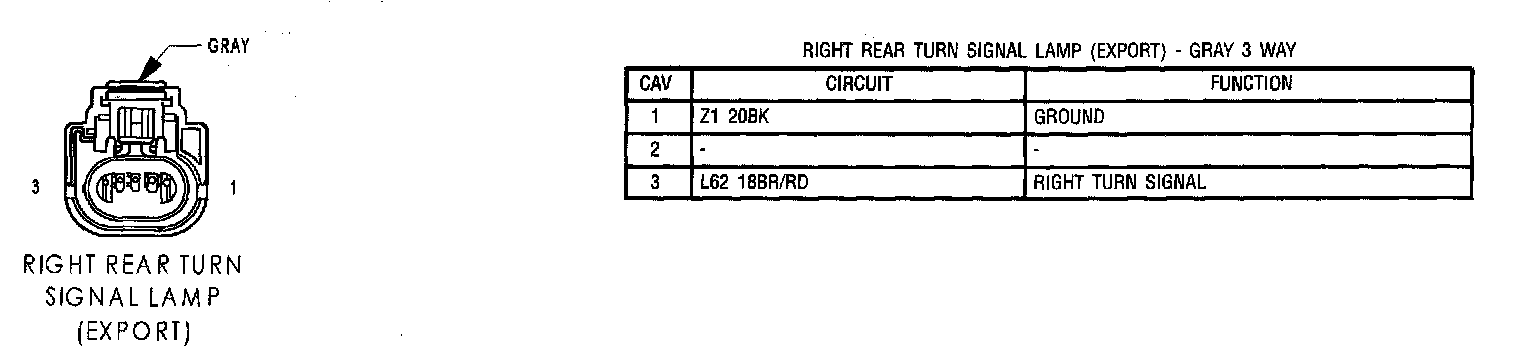

Right Rear Turn Signal Lamp (Export):

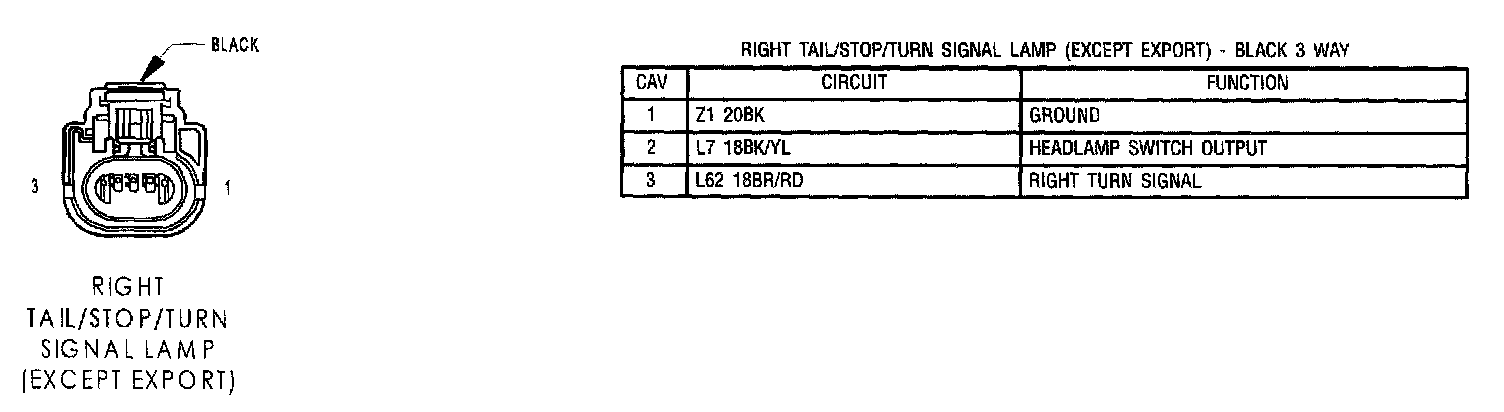

Right Tail/Stop/Turn Signal Lamp (Except Export):
