Headlamp Aiming (Export)

ADJUSTMENT - HEADLAMP AIMING (EXPORT)

ALIGNMENT SCREEN PREPARATION
1. Position the vehicle on a level surface 10 meters in front of a flat wall or aiming board.

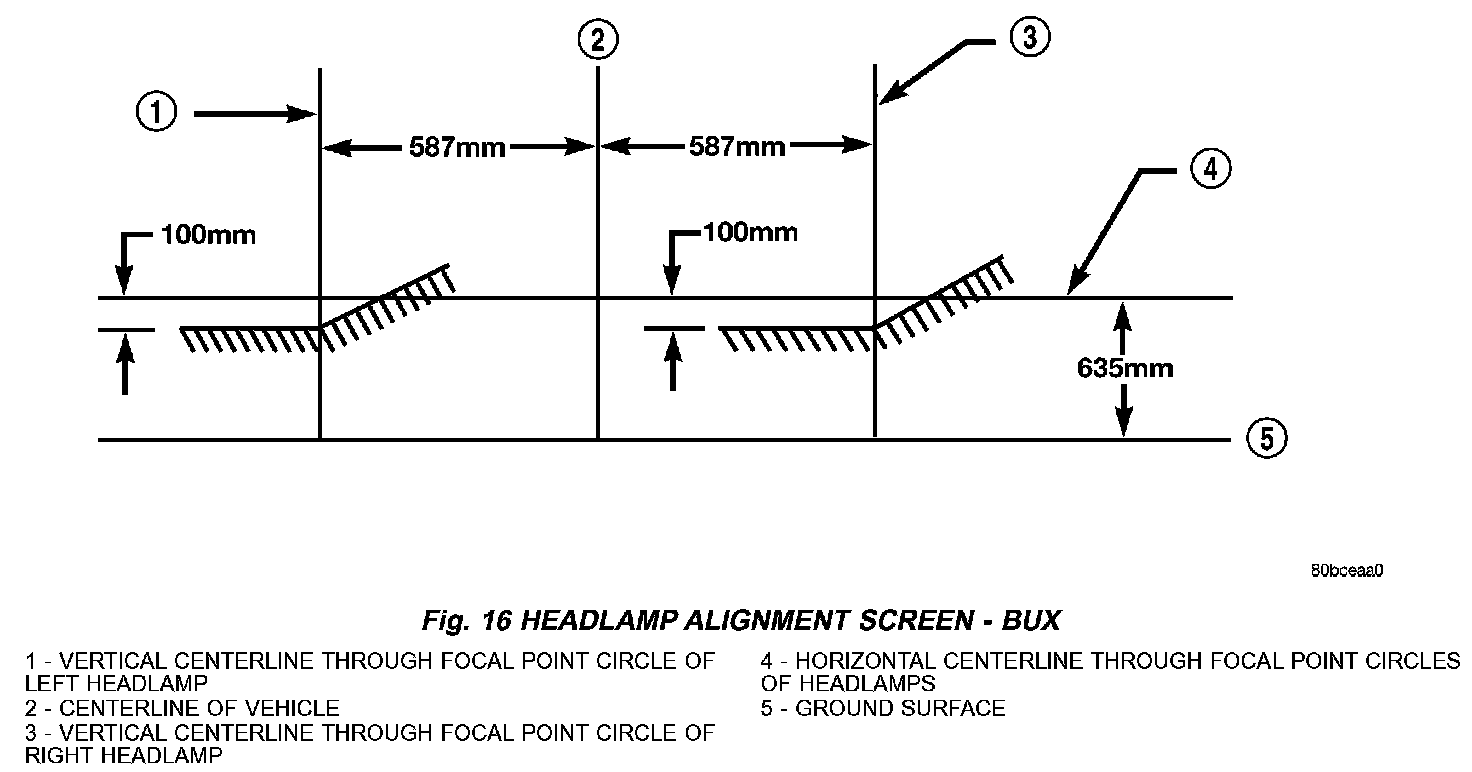

Fig.16 Headlamp Alignment Screen - BUX:

2. Tape a vertical line on the wall extending 1 meter up from the floor, making sure this line is even with the centerline of the vehicle.
3. Measure the cross-car distance between the two headlamp focal point circles (1174 mm). Transfer half of this distance (587 mm to the left of the vehicle centerline and tape another vertical line up from the floor 1 meter. Repeat for the right side of the centerline also.
4. Measure the distance from the floor to the focal point circle on the headlamp lens (635 mm, but may vary due to variations in tire size and vehicle suspension height). Transfer this measurement to the wall and tape a horizontal line extending approximately 1 meter beyond each vertical focal point line.

HORIZONTAL ADJUSTMENT
The horizontal position of the passing (low) beam pattern is adjusted by turning the T-15 Torx screw, located through the slot in the upper crossmember, between the two attaching straps of the headlamp.

VERTICAL ADJUSTMENT
The vertical position of the passing (low) beam pattern is adjusted by turning the Phillips screw on top of the headlamp leveling motor, located between the headlamp housing and the upper crossmember, just inboard of the fender.
