Fog Lamp Unit Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.

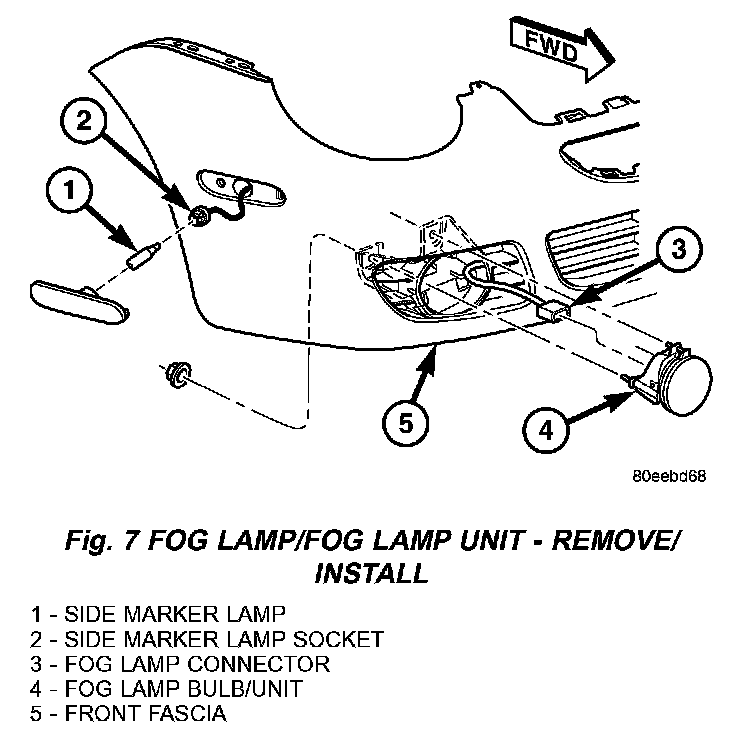

Fig.7 Fog Lamp/Fog Lamp Unit - Remove/Install:

2. Remove nuts attaching fog lamp to fascia.
3. Disconnect wire connector from fog lamp.

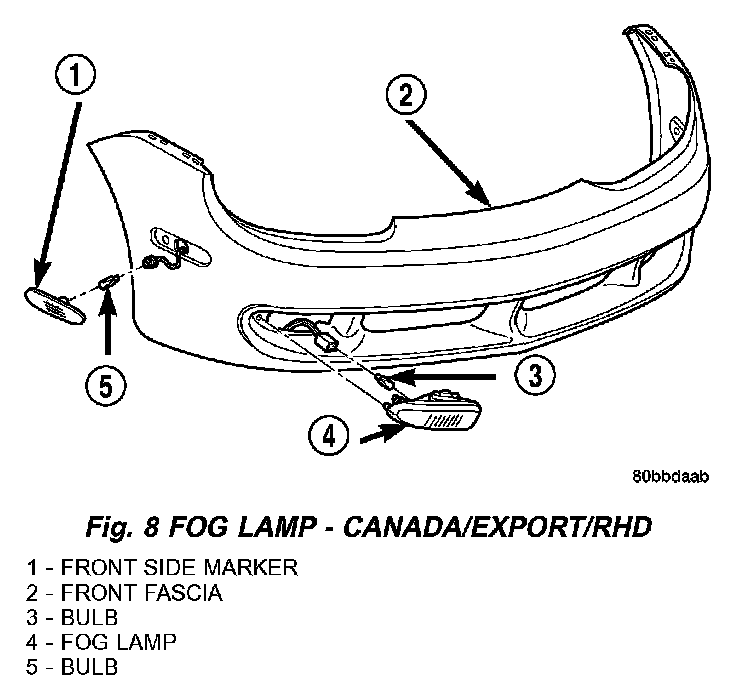

Fig.8 Fog Lamp - Canada/Export/RHD:

4. Remove bulb from lamp unit.

INSTALLATION

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

1. Place lamp into position.
2. Connect wire connector to the fog lamp.
3. Install nuts attaching fog lamp to fascia.
4. Connect the battery negative cable.
