Compressor Clutch Relay: Testing and Inspection

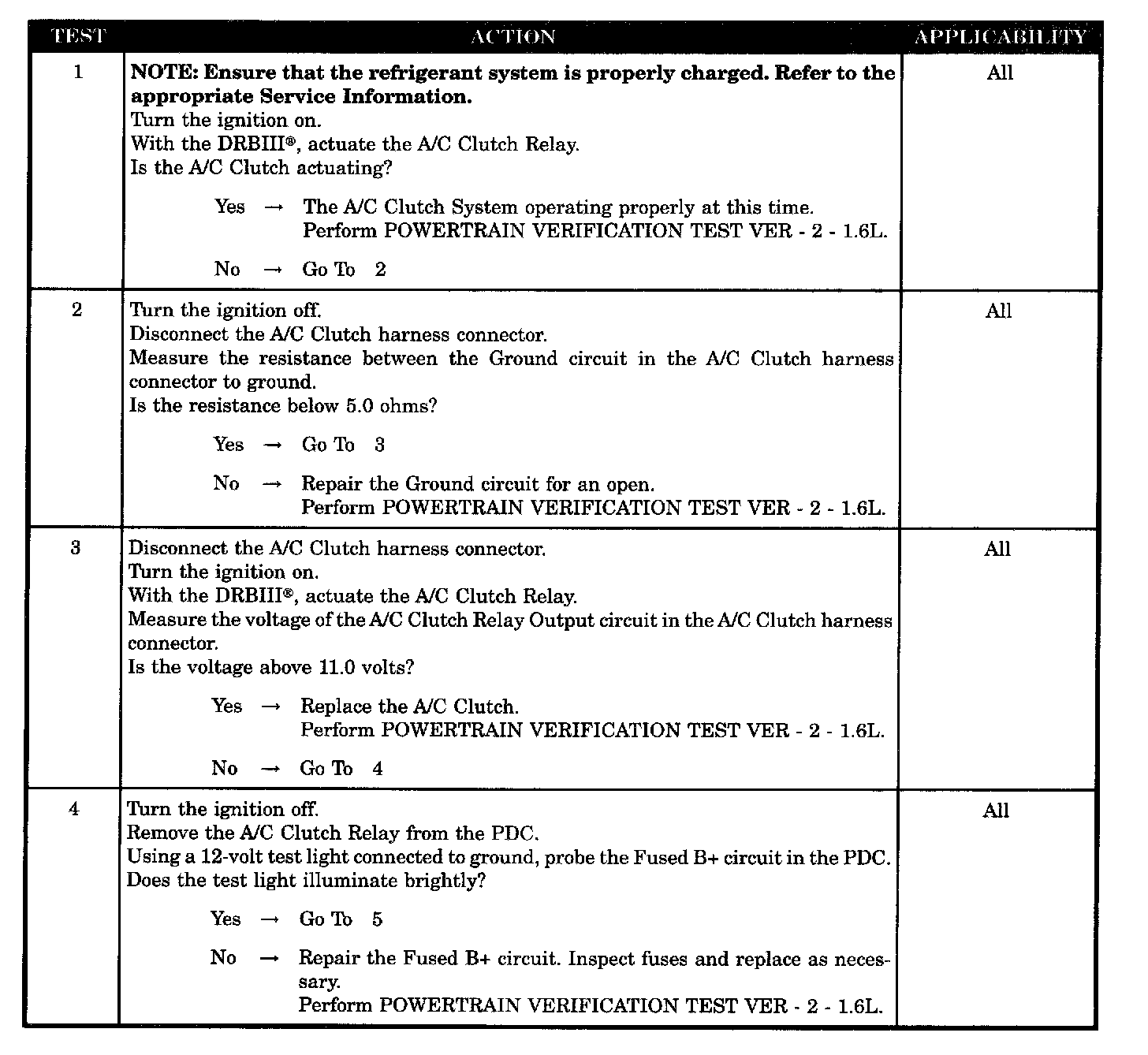

Test 1 - 4:

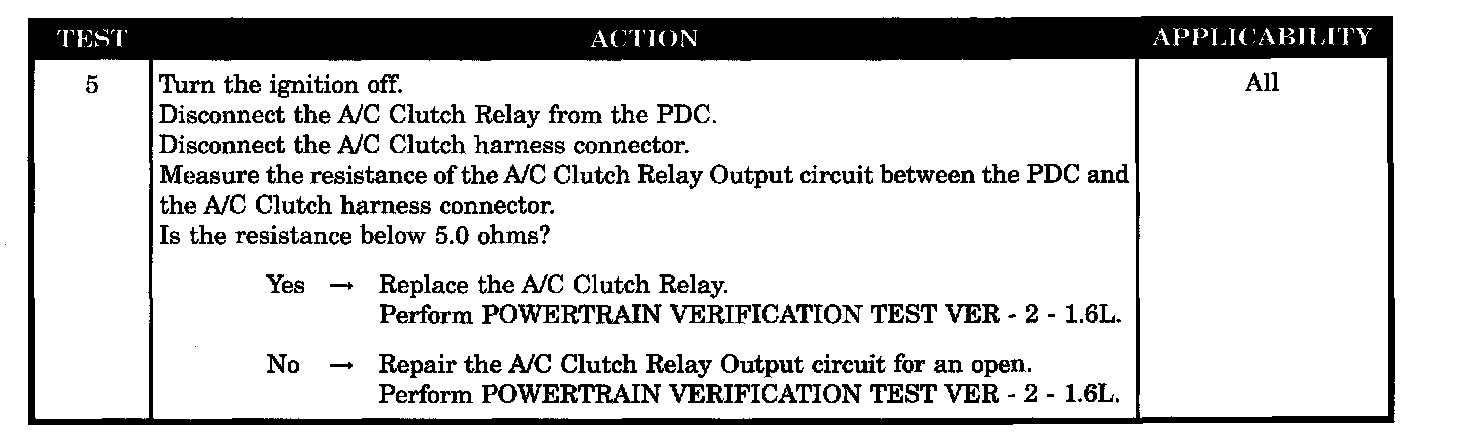

Test 5:

SYMPTOM
CHECKING THE A/C RELAY OUTPUT

POSSIBLE CAUSES
- A/C clutch relay operation
- Ground circuit open
- A/C clutch
- Fused B+ circuit
- A/C clutch output circuit
- A/C clutch relay
