Blower Motor Resistor: Service and Repair

CAUTION: Stay clear of the blower motor and resistor block (Hot). Do not operate the blower motor with the resistor block removed.

REMOVAL
1. Remove windshield wipers.
2. Remove cowl top screen.

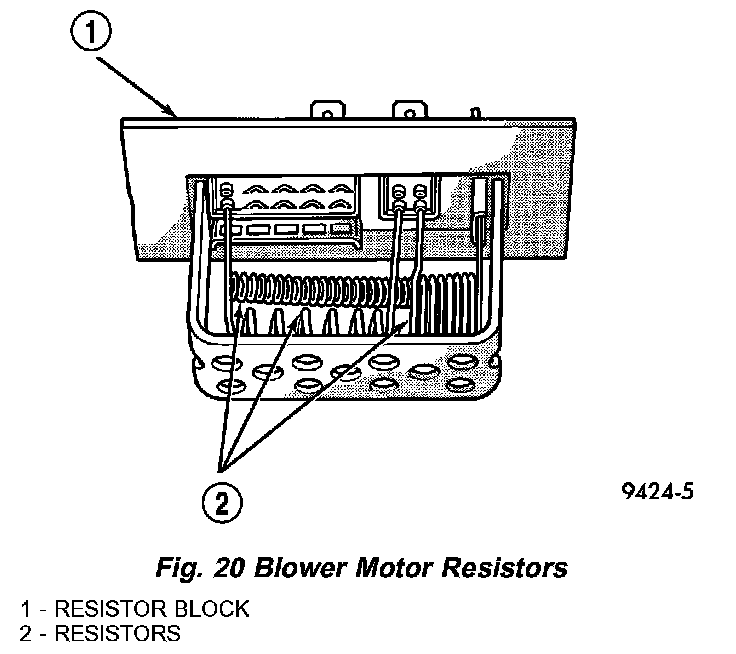

Fig.20 Blower Motor Resistors:

3. Disconnect the resistor block wiring connector.
4. Remove/unsnap resistor block from vehicle.
5. Remove the resistor block from the vehicle.

INSTALLATION

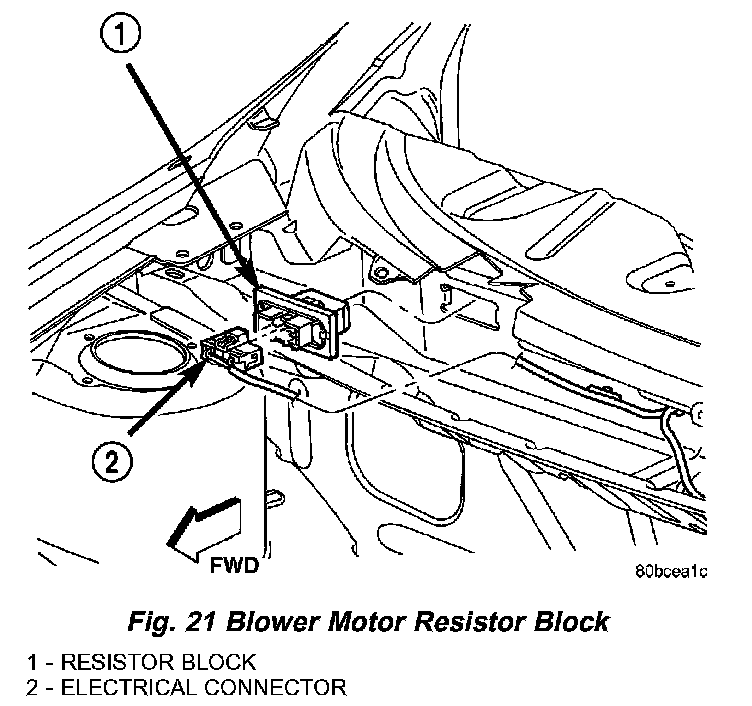

Fig.21 Blower Motor Resistor Block:

1. Snap the new Blower Motor Resistor Block into place.
2. Connect the resistor block wiring connector.
3. Install the cowl top screen.
4. Install the windshield wipers.
5. Reconnect the battery negative cable.
