CENTER AIR OUTLET DUCT

REMOVAL

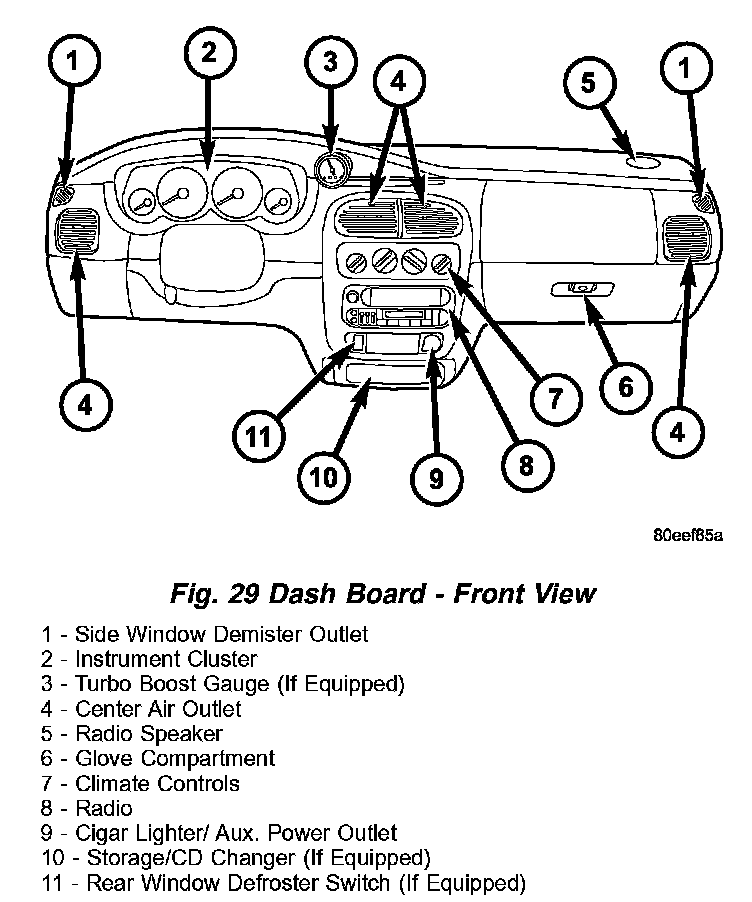

Fig.29 Dash Board - Front View:

1. Remove the center bezel from the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument panel, Service and Repair, Instrument Panel Service Procedures, Instrument Panel Center Bezel Replacement, Instrument Panel Center Bezel

2. Remove the screws that secure the center air outlet duct to the instrument panel.
3. Disengage the center air outlet duct from the air outlet distribution duct.
4. Remove the center air outlet duct from the instrument panel.

INSTALLATION
1. Install the center air outlet duct to the instrument panel.
2. Engage the center air outlet duct to the air outlet distribution duct.
3. Install the screws that secure the center air outlet duct to the instrument panel. Tighten to 2.3 Nm (20 in. lbs.).
4. Install the center bezel to the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument panel, Service and Repair, Instrument Panel Service Procedures, Instrument Panel Center Bezel Replacement, Instrument Panel Center Bezel
