Removal
REMOVAL - CRANKSHAFT SPROCKET1. Remove timing belt

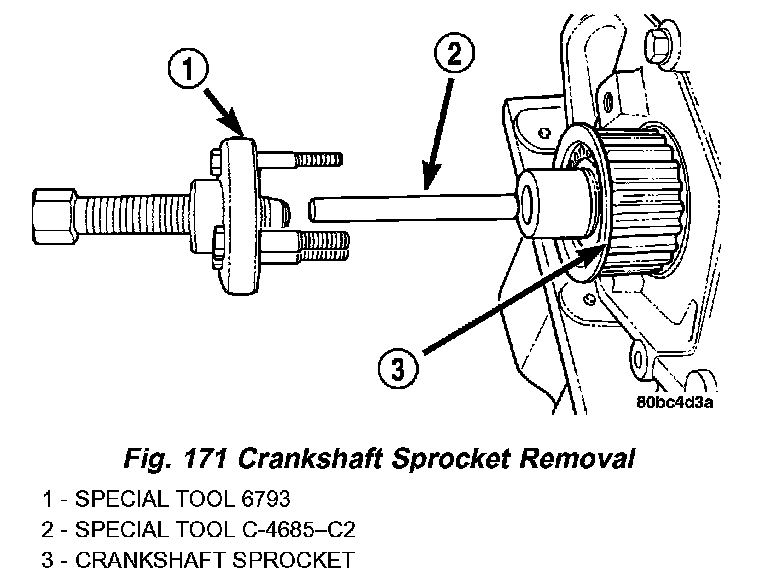

2. Remove the crankshaft sprocket using Special Tool 6793 and insert C-4685-C2 (Fig. 171).
1. Remove timing belt
2. Remove the crankshaft sprocket using Special Tool 6793 and insert C-4685-C2 (Fig. 171).
