Splice Location Index

PLEASE NOTE:
If a link on the index chart to a figure is not provided, that means that the ground and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

Splices S102 - S117:

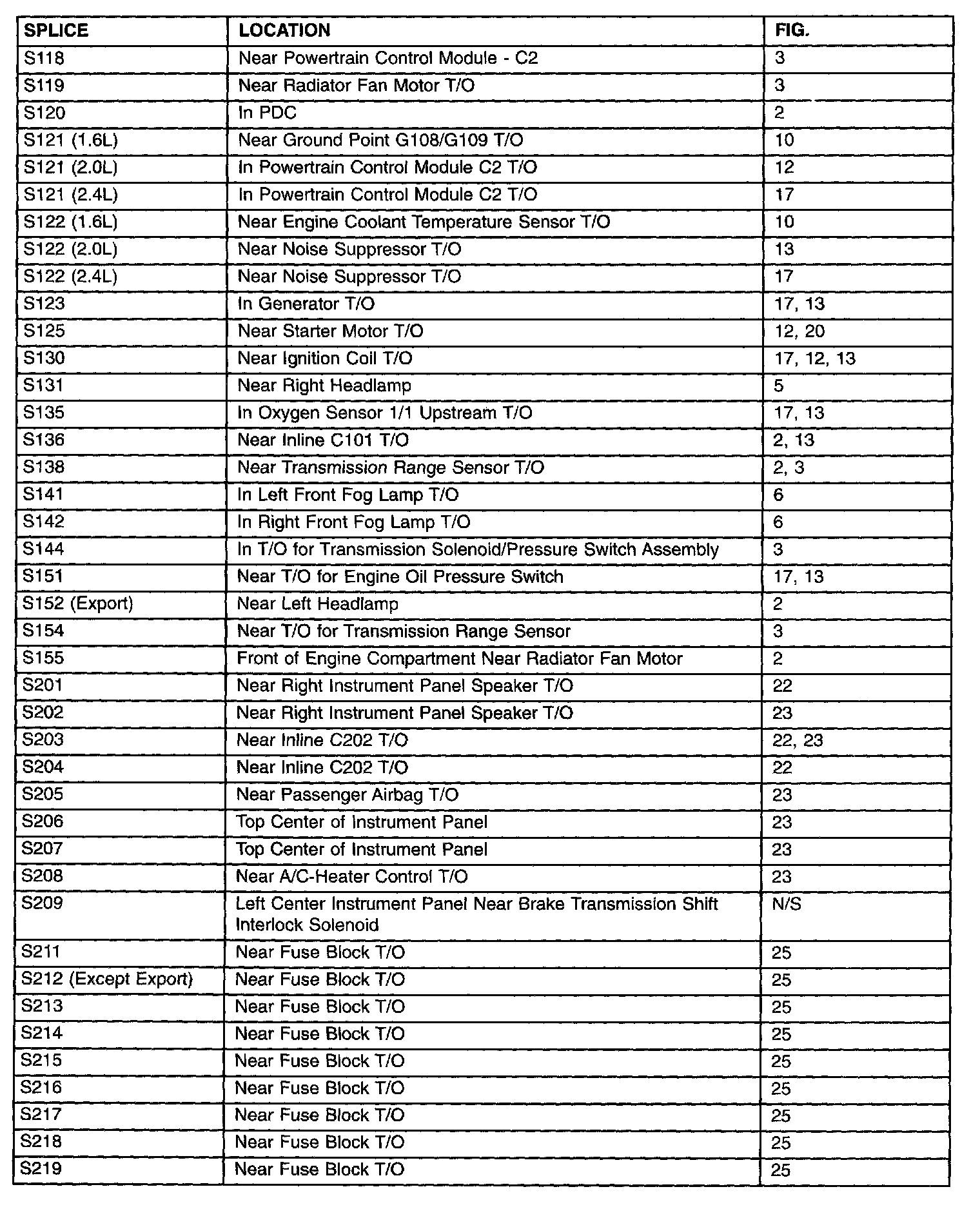

S118 - S219:

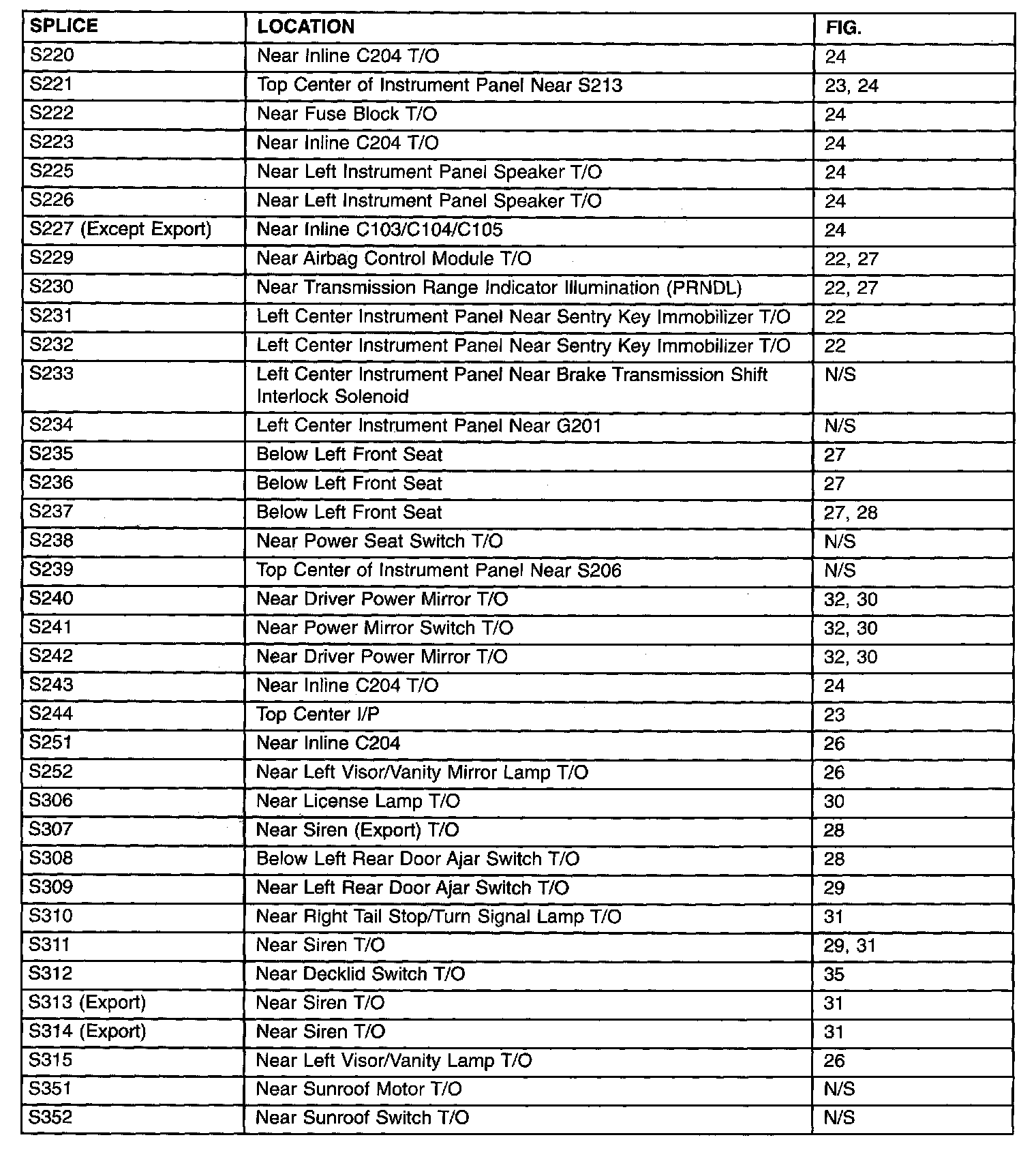

S220 - S352:

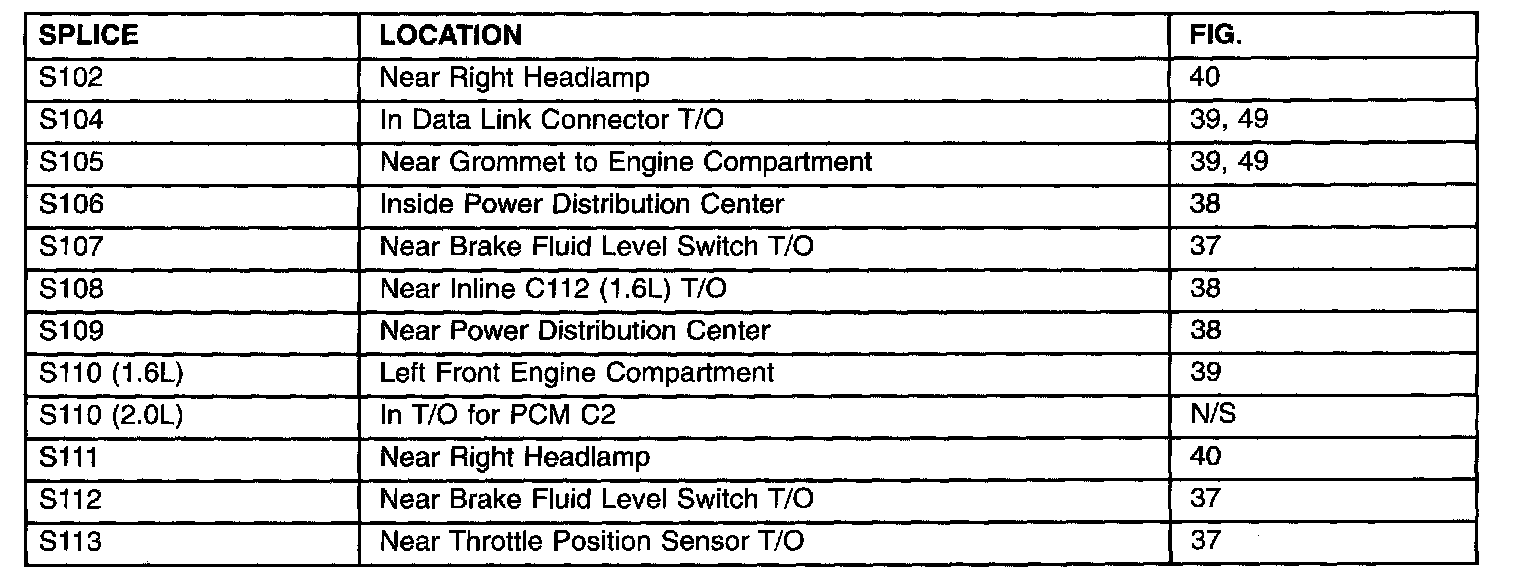

Splices S102 - S113:

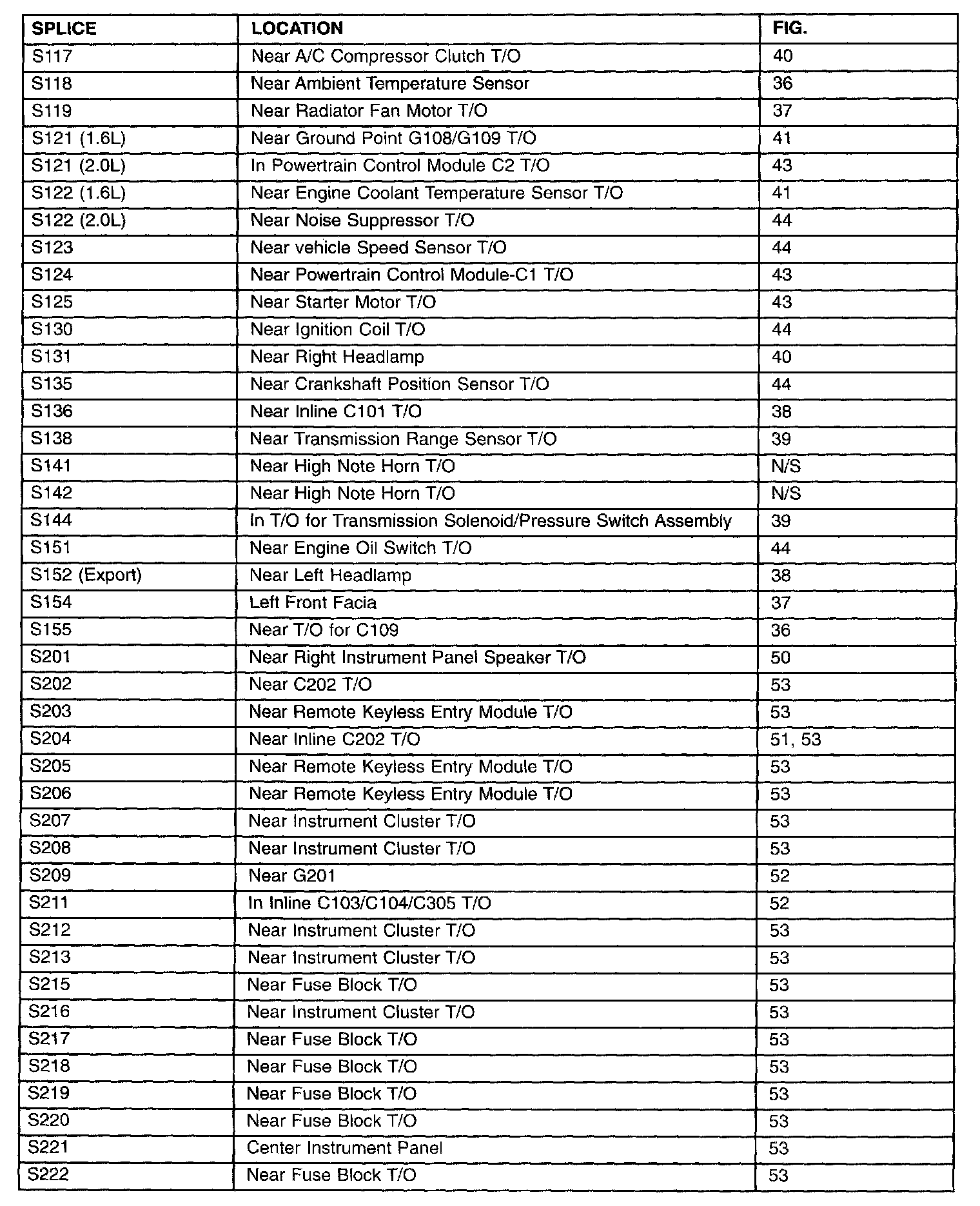

Splices S117 - S222:

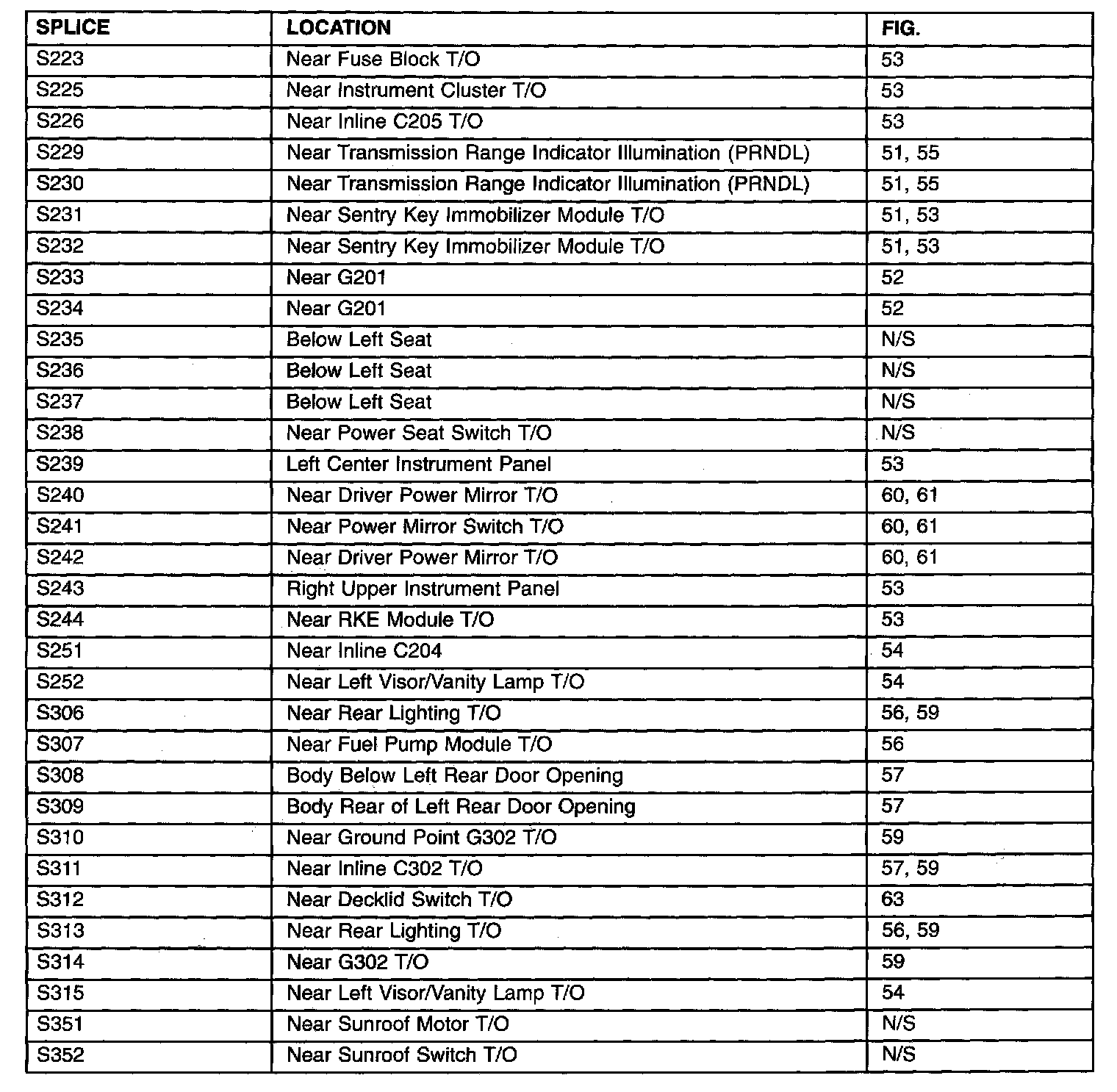

Splices S223 - S352:
