Diagrams
>>
Connector Views
>>
Power Distribution Module
Power Distribution Module

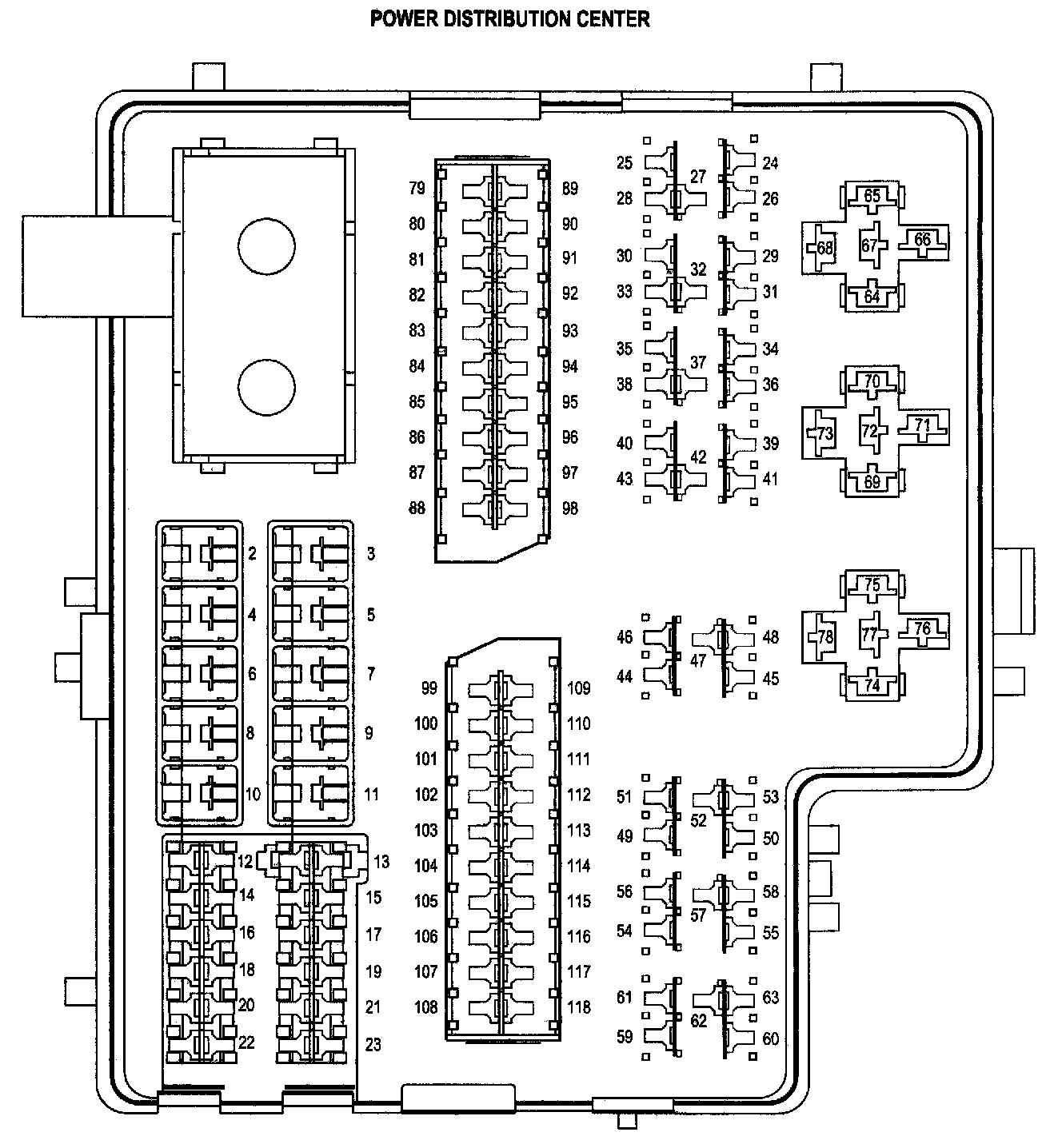

Power Distribution Center:

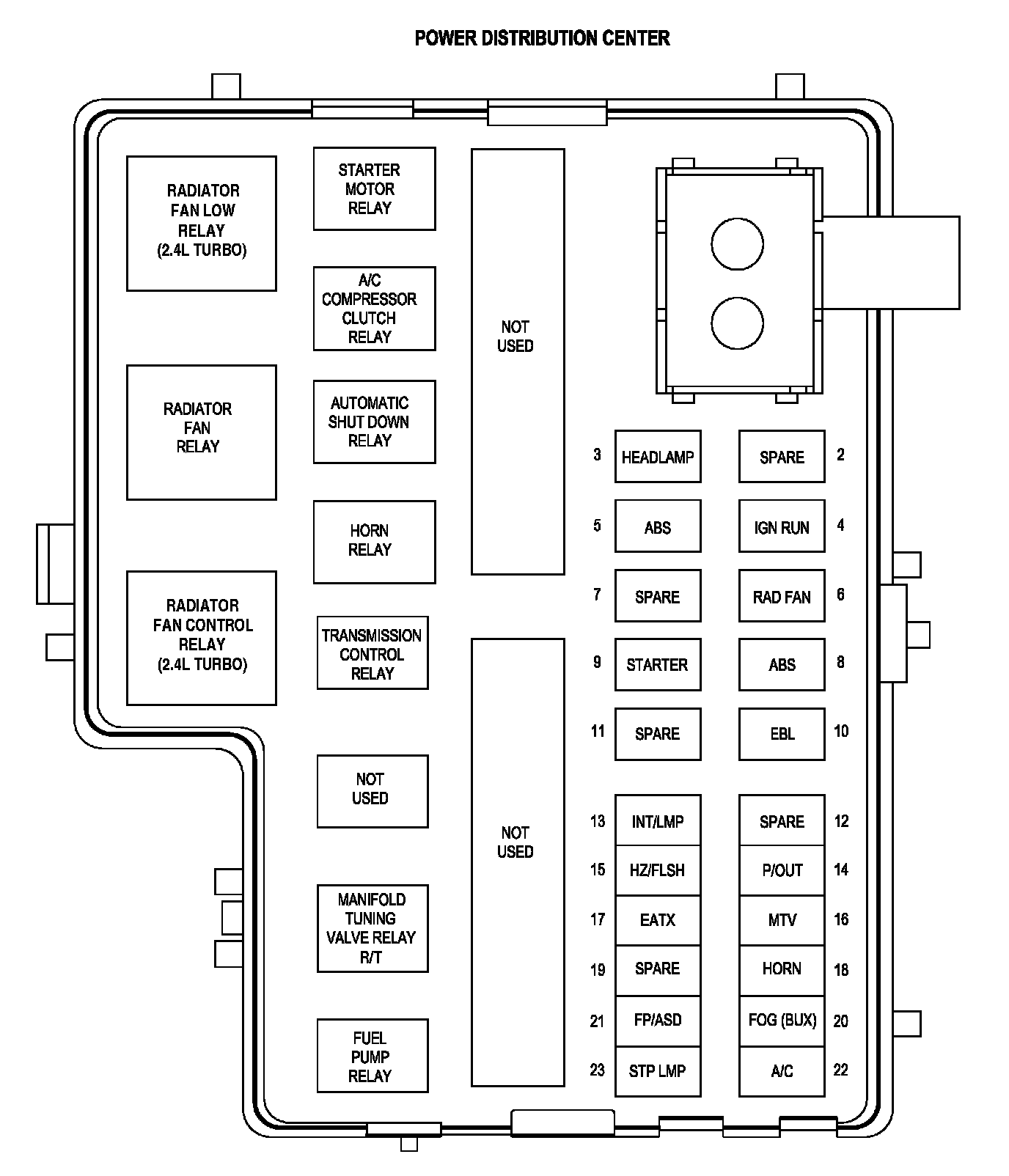

Power Distribution Center:

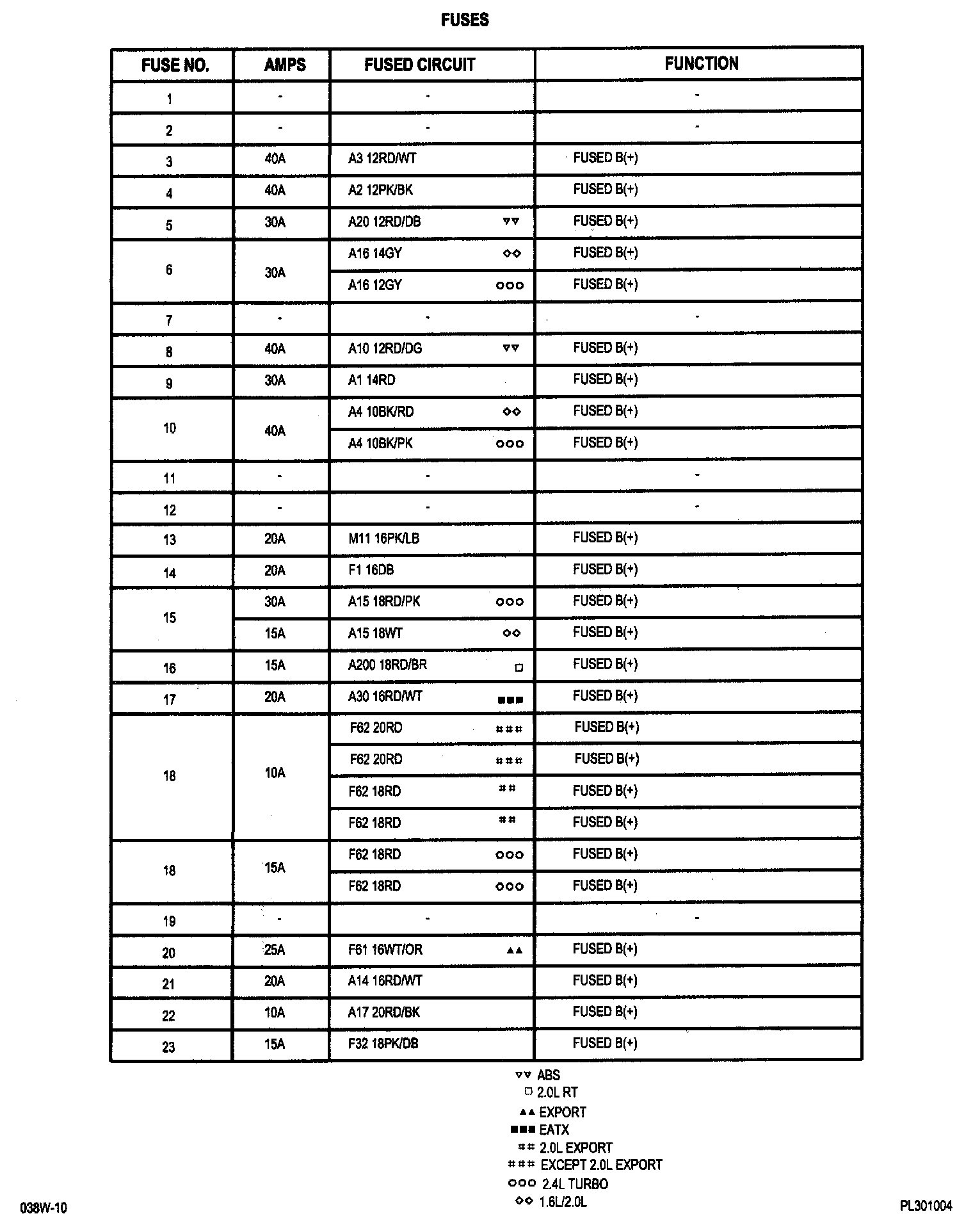

Fuses (PDC):
8w-10-5:

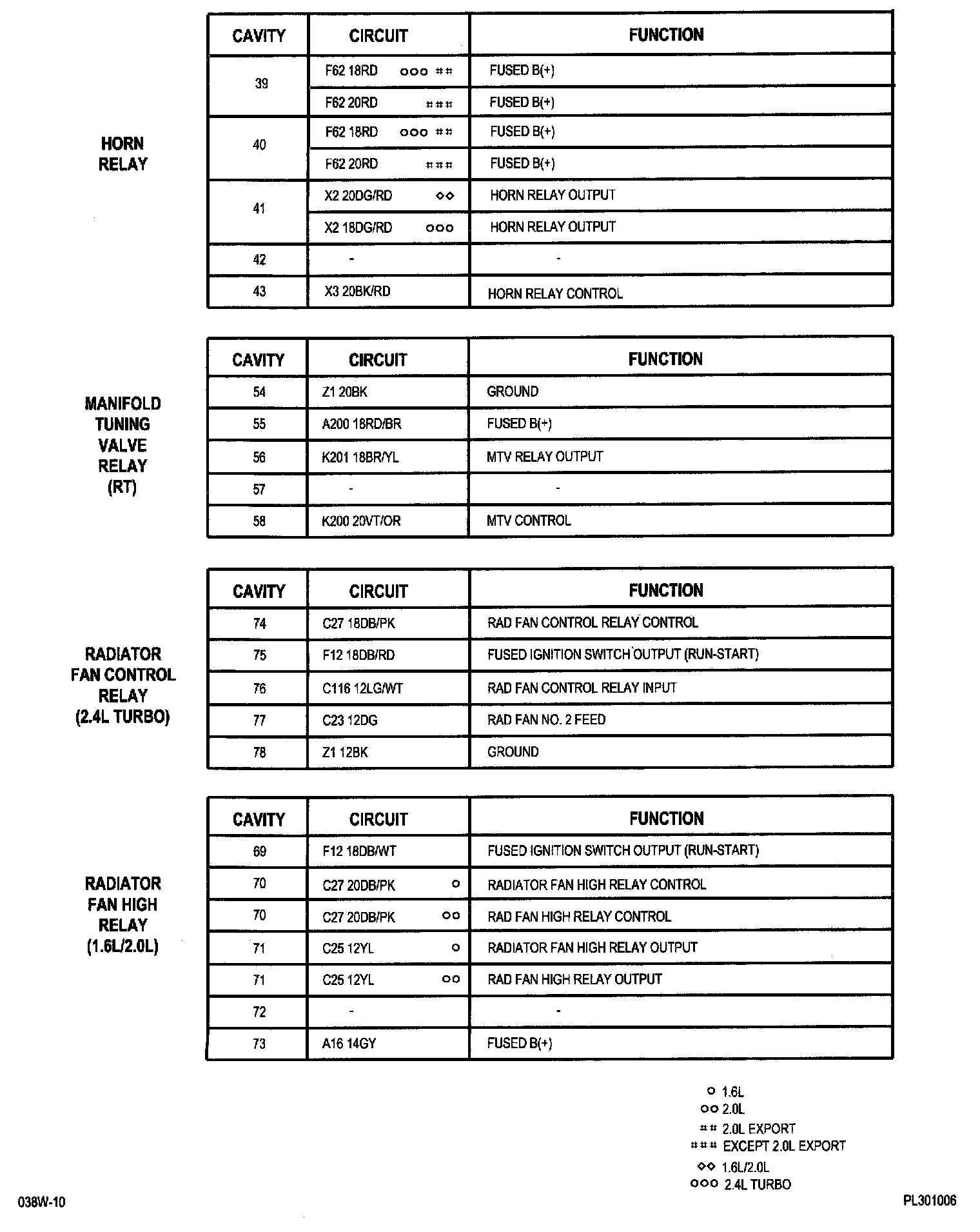

8w-10-6:

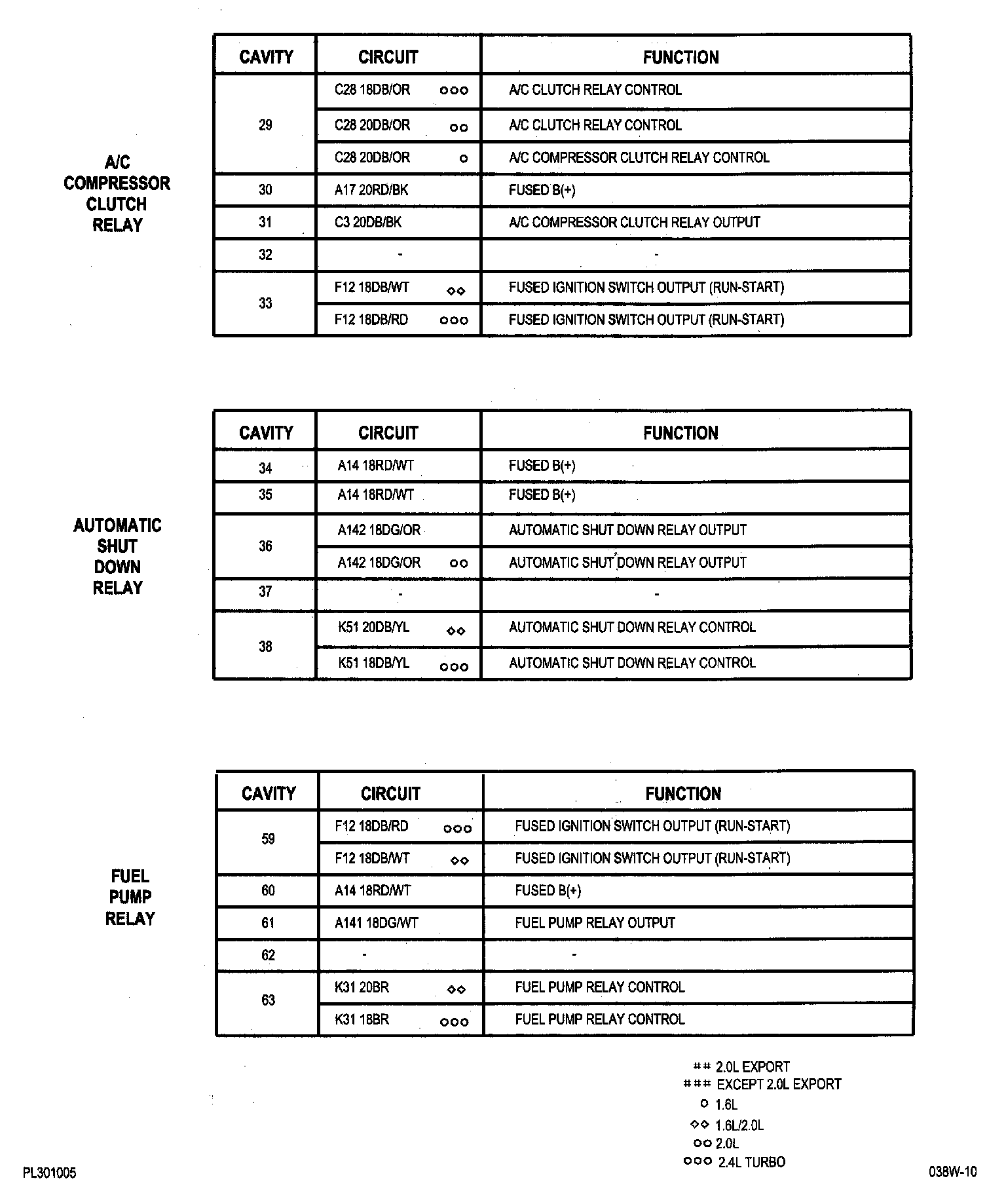

8w-10-7:
