Fog/Driving Lamp
>>
System Diagram
System Diagram

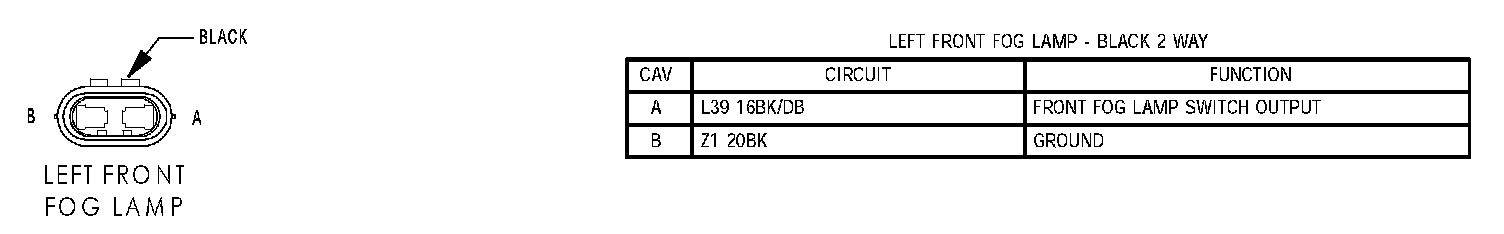

Left Front Fog Lamp:
Right Front Fog Lamp:

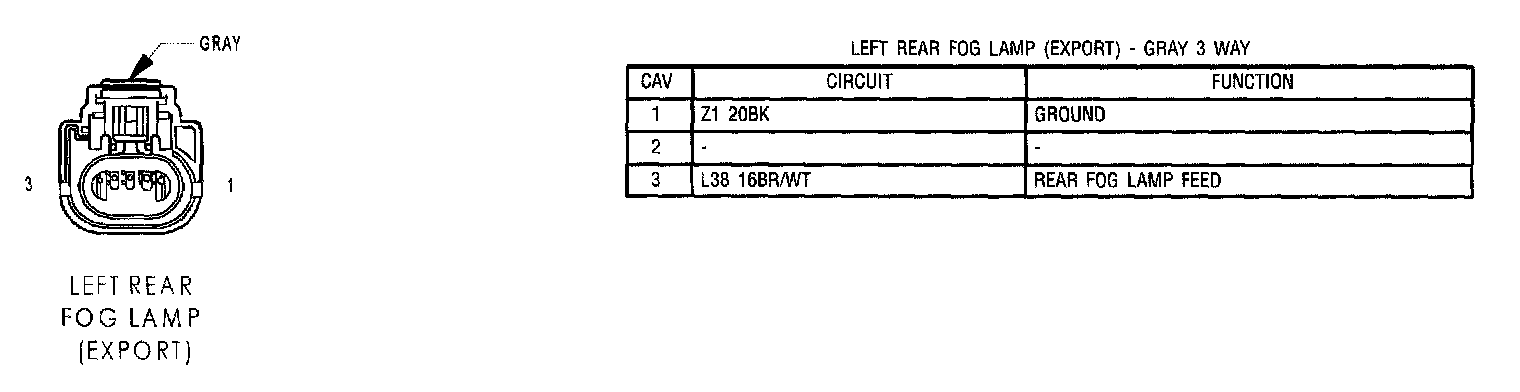

Left Rear Fog Lamp (Export):

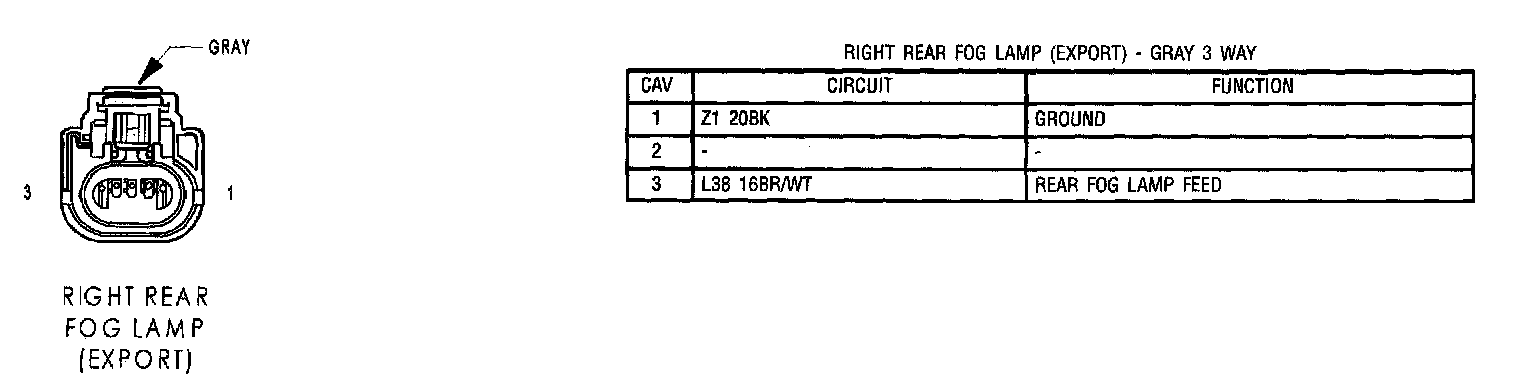

Right Rear Fog Lamp (Export):
