Home >> Dodge >> 2003 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

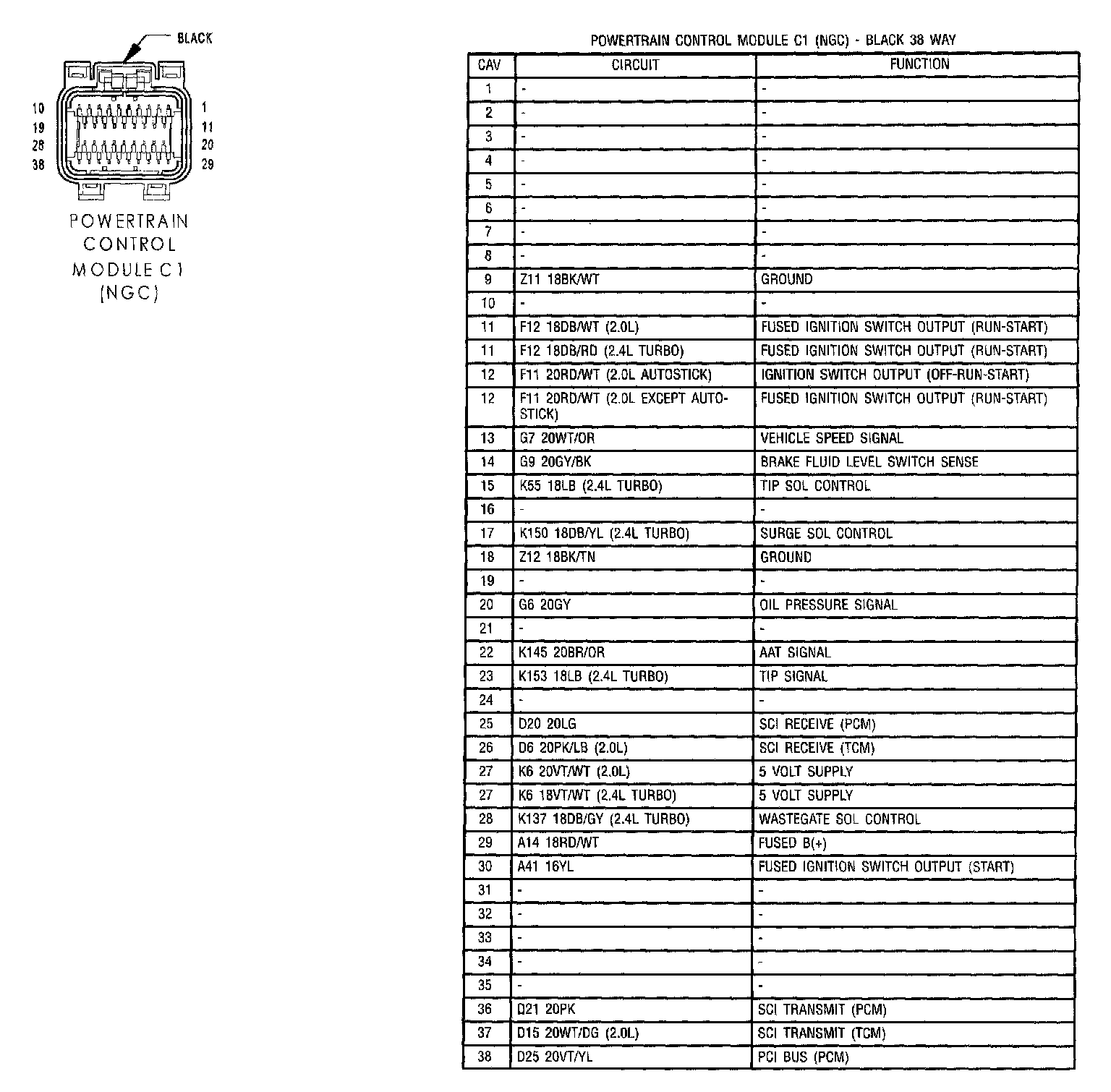

Powertrain Control Module C1 (NGC):

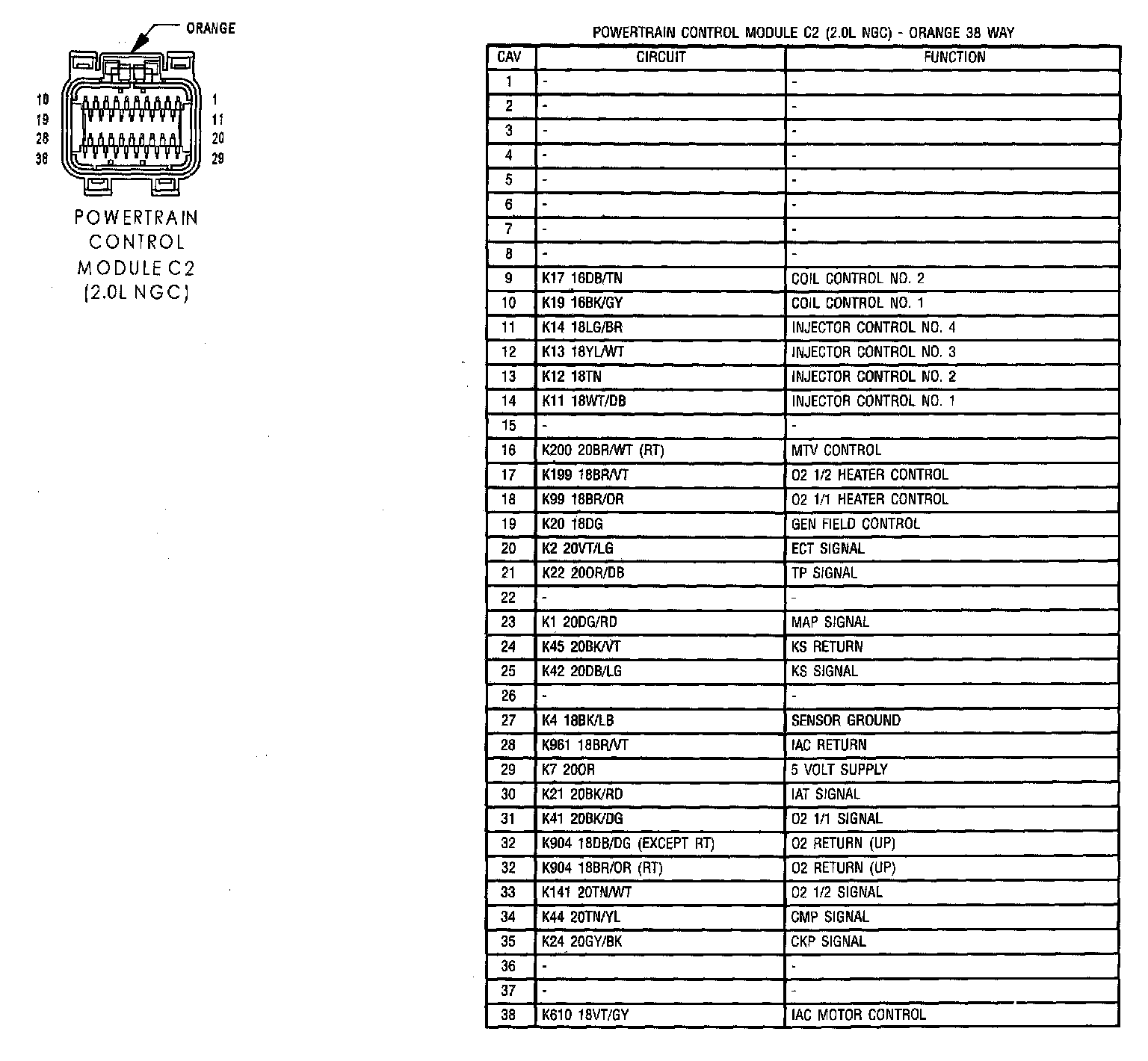

Powertrain Control Module C2 (2.0L NGC):

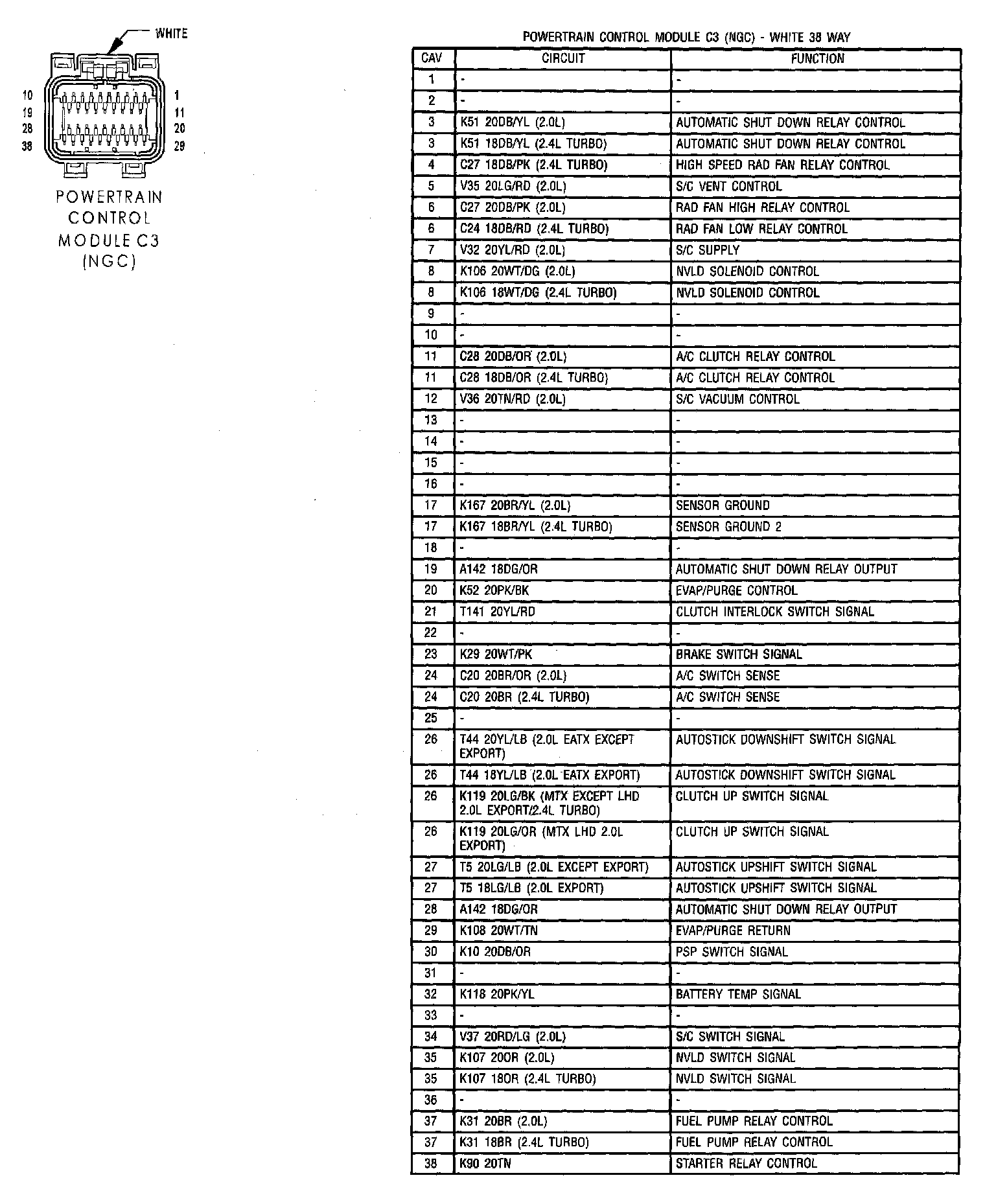

Powertrain Control Module C3 (NGC):

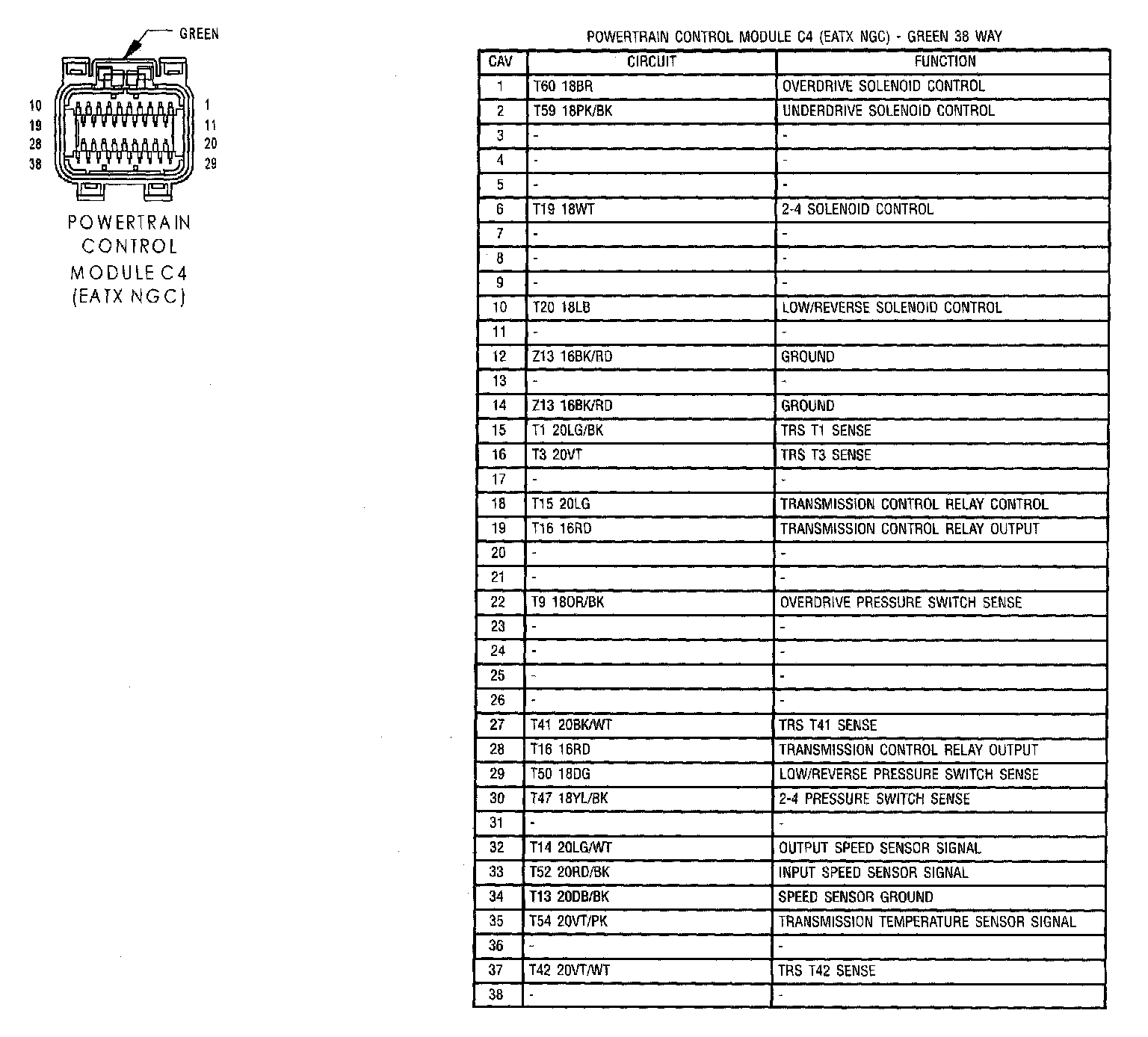

Powertrain Control Module C4 (EATX NGC):
