Diagnosis By Symptom

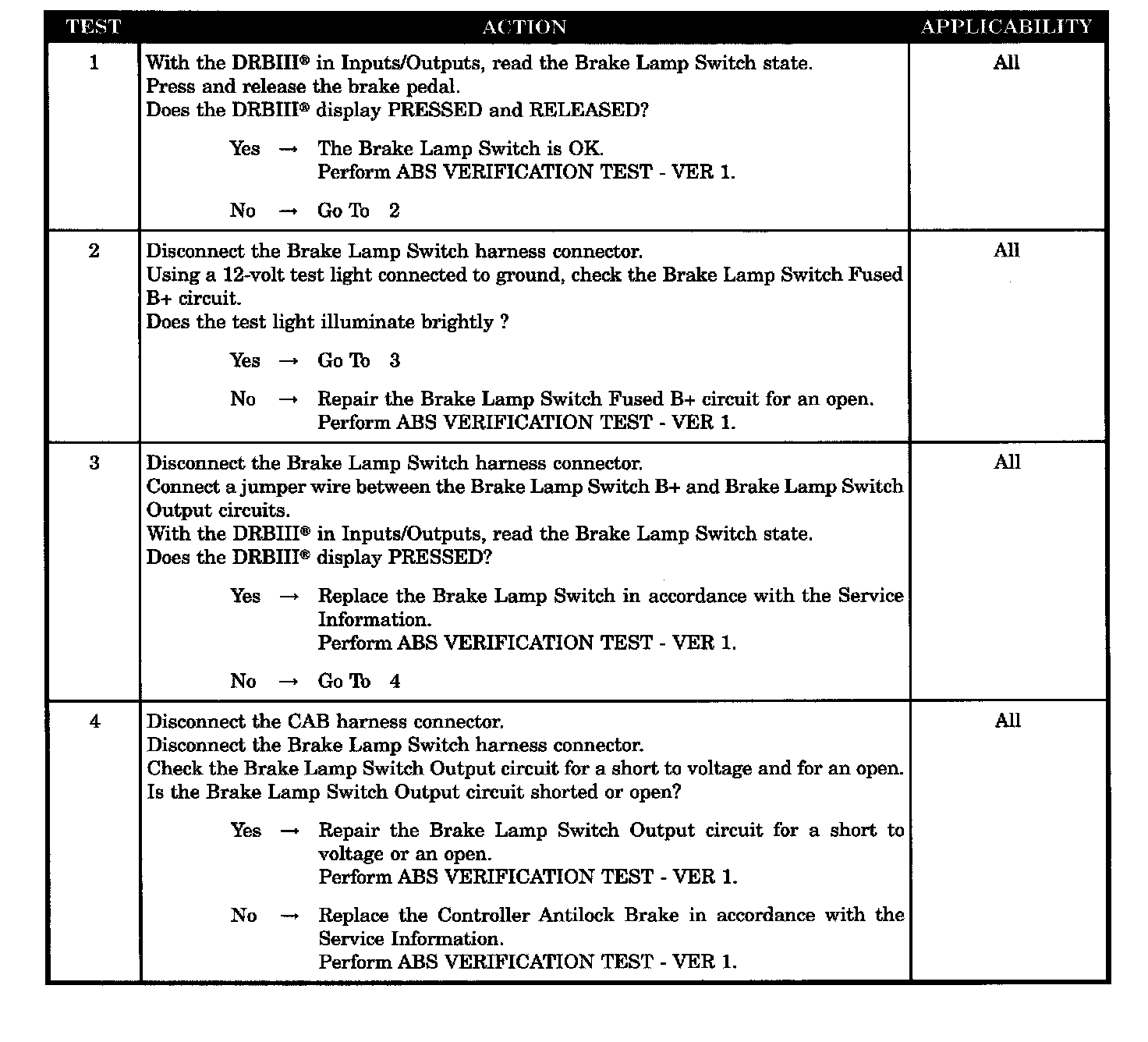

Test 1 - 4:

SYMPTOM:
*BRAKE LAMP SWITCH INOPERATIVE

POSSIBLE CAUSES:
- CHECK BRAKE LAMP SWITCH OUTPUT
- BRAKE LAMP SWITCH B+ OPEN
- BRAKE LAMP SWITCH OPEN
- BRAKE LAMP SWITCH OUTPUT CIRCUIT SHORT OR OPEN
- CAB - INTERNAL OPEN
