Accessory Switch Bezel

REMOVAL

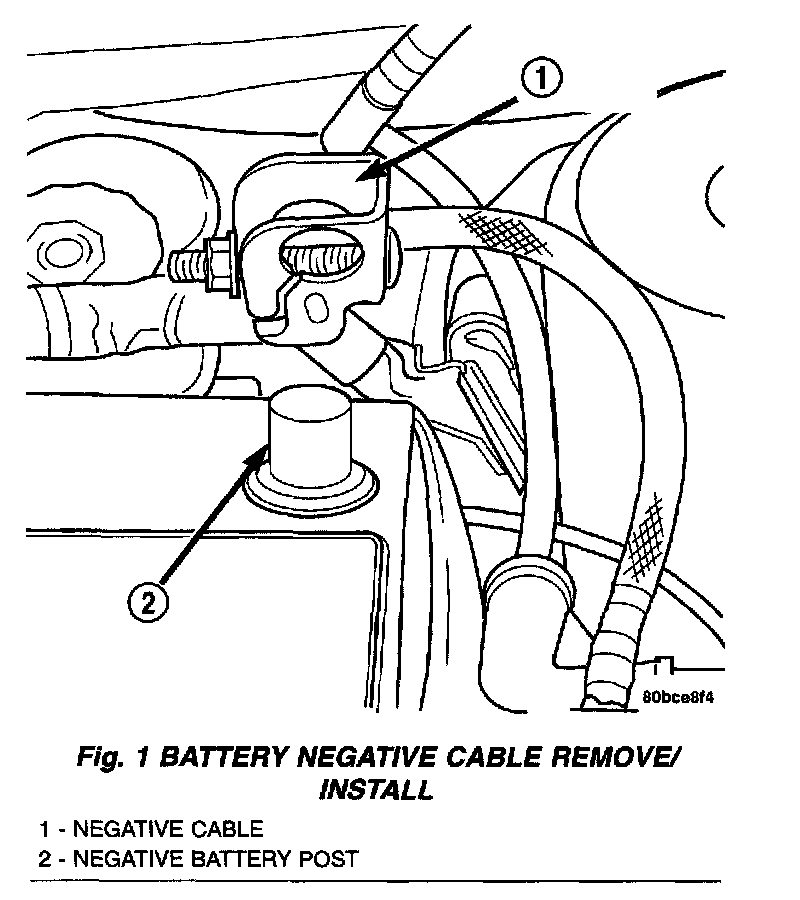

Fig. 1 Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable (Fig. 1)
2. Remove the instrument panel center bezel. Instrument Cluster Bezel Replacement
3. Remove four screws retaining accessory switch bezel.
4. Disconnect the harness connectors to the following:
- Rear Window Defogger Switch (if equipped)
- Cigar Lighter/Power Outlet

The accessory switches are not serviced separately, but the cigar lighter/power outlet is and must be transferred to the new bezel.

INSTALLATION
The accessory switches are not serviced separately, but the cigar lighter/power outlet is and must be transferred to the new bezel.
1. Connect the harness connectors to the following:
- Cigar Lighter/Power Outlet
- Rear Window Defogger Switch (if equipped)

2. Install the four screws retaining the accessory switch bezel.
3. Install the instrument panel center bezel. Instrument Cluster Bezel Replacement
4. Connect the battery negative cable (Fig. 1).
