Radio/Stereo: Service and Repair

RADIO

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel center bezel

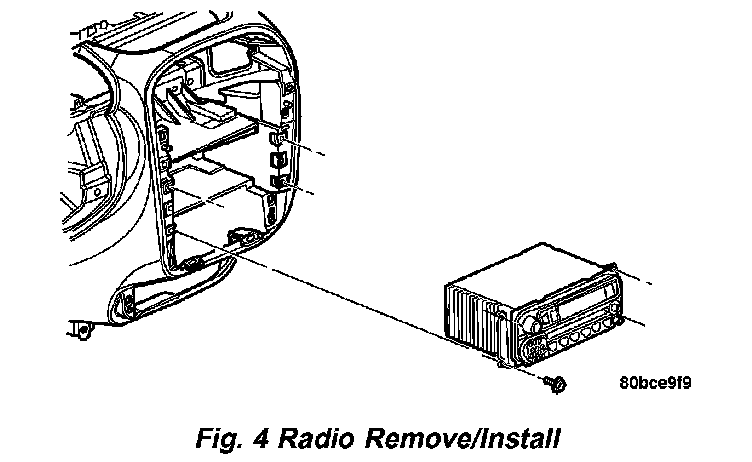

Fig.4 Radio Remove/Install:

3. Remove four mounting screws on the radio and pull out of instrument panel.

CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

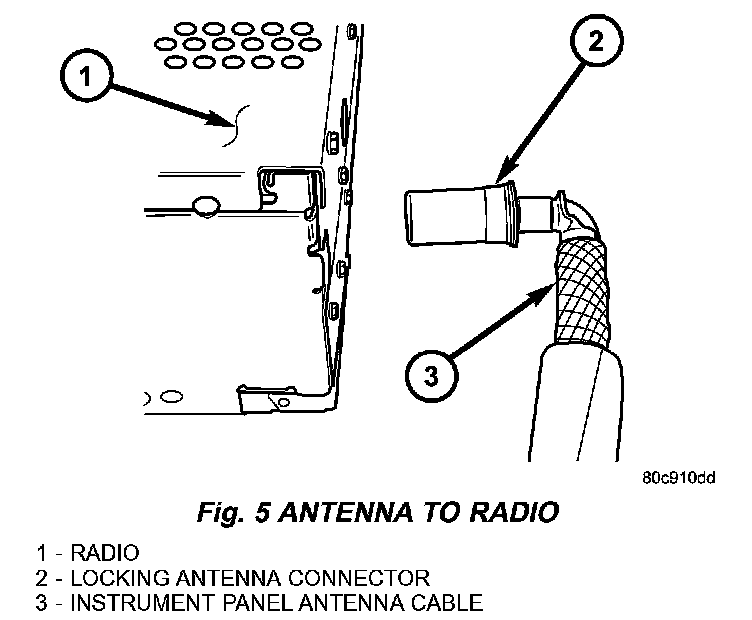

Fig.5 Antenna To Radio:

4. Disconnect the antenna cable by pulling the locking antenna connector away from the radio.
5. Disconnect wire harness connector from radio.
6. Remove radio from vehicle.

INSTALLATION
1. Connect wire harness connector and antenna cable to radio.
2. Install radio to vehicle.
3. Install mounting screws.
4. Install instrument panel center bezel.
5. Connect battery negative cable.
