Alarm Horn: Service and Repair

SIREN (EXPORT)

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the left rear wheel well splash shield.
3. Remove the air blocker to see siren.
4. Disconnect the siren electrical connector.

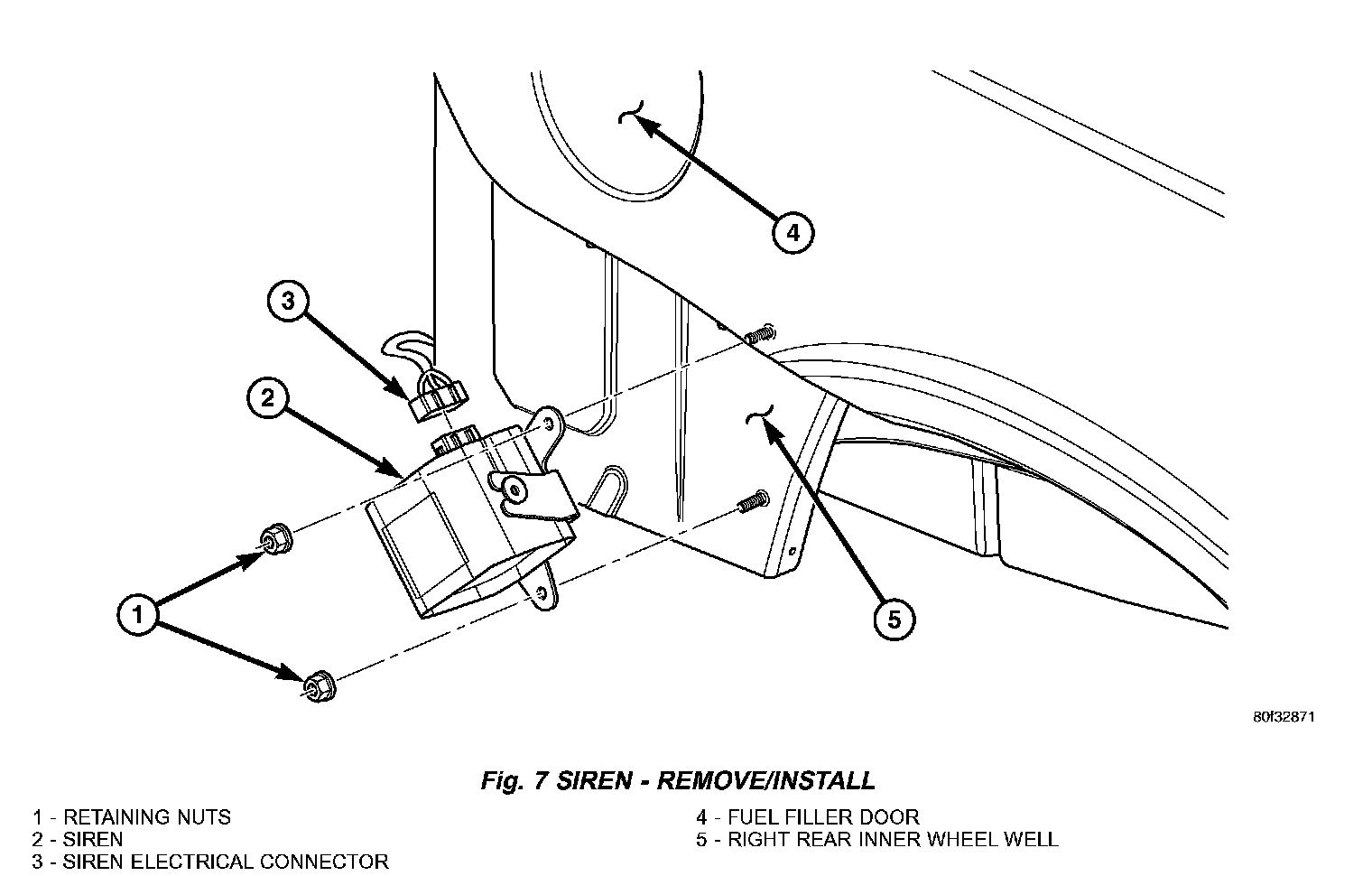

Fig.7 Siren - Remove/Install:

5. Remove the siren retaining screws and remove the siren from the vehicle.

INSTALLATION
1. Position siren and install retaining screws.
2. Connect the siren electrical connector.
3. Install air blocker in original position.
4. Install the left rear wheel well splash shield.
5. Connect the battery negative cable.
