P0522

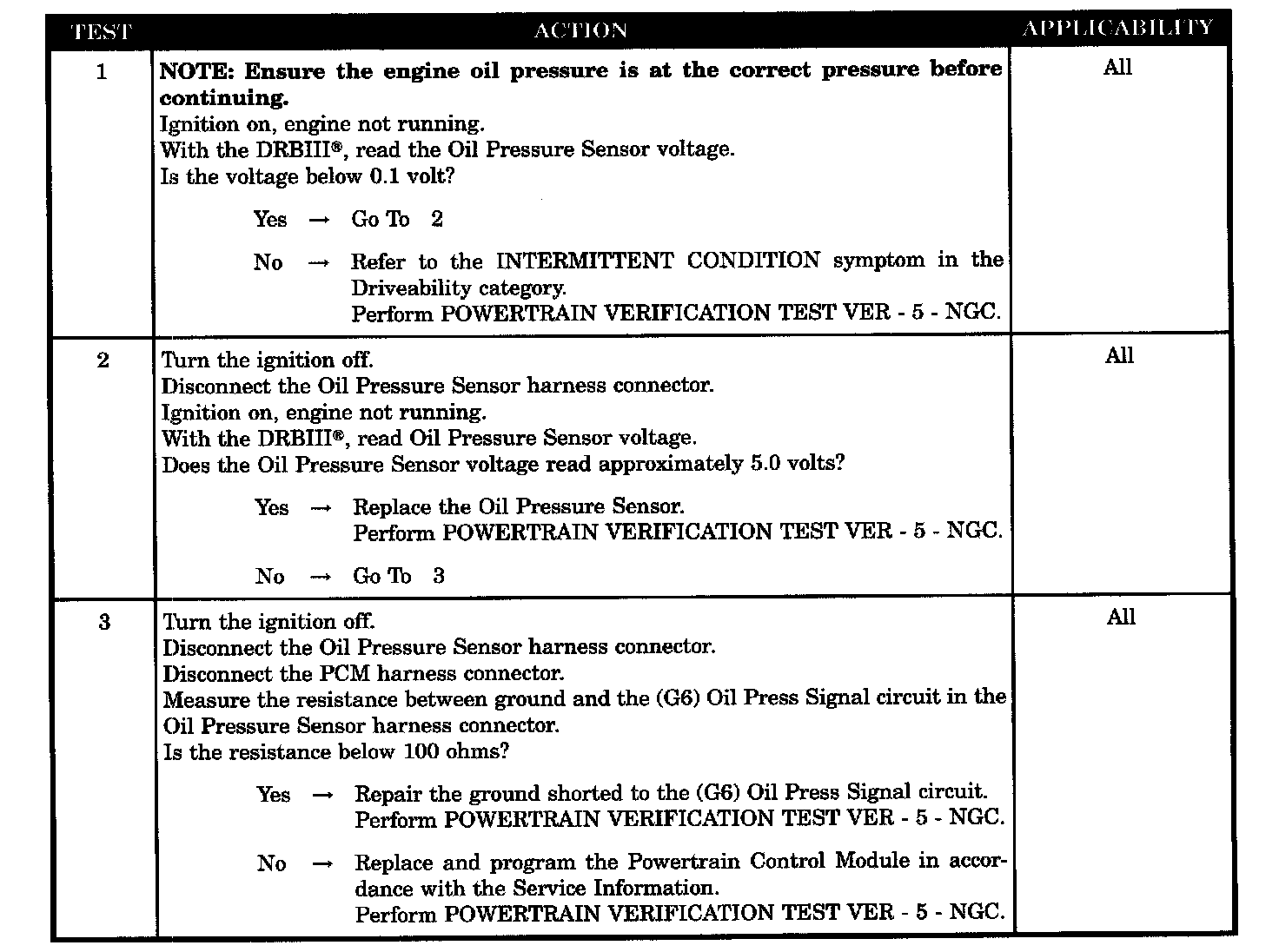

Test 1 - 3:

SYMPTOM
P0522-OIL PRESSURE SENSOR LOW

WHEN MONITORED
With the ignition key on and battery voltage above 10.4 volts.

SET CONDITION
The oil pressure sensor voltage at PCM goes below 0.1 volts for 0.5 of a second.

POSSIBLE CAUSES
- Oil pressure sensor voltage below 0.1 volts
- Oil pressure sensor internal failure
- (G6) oil press signal shorted to ground
- PCM
