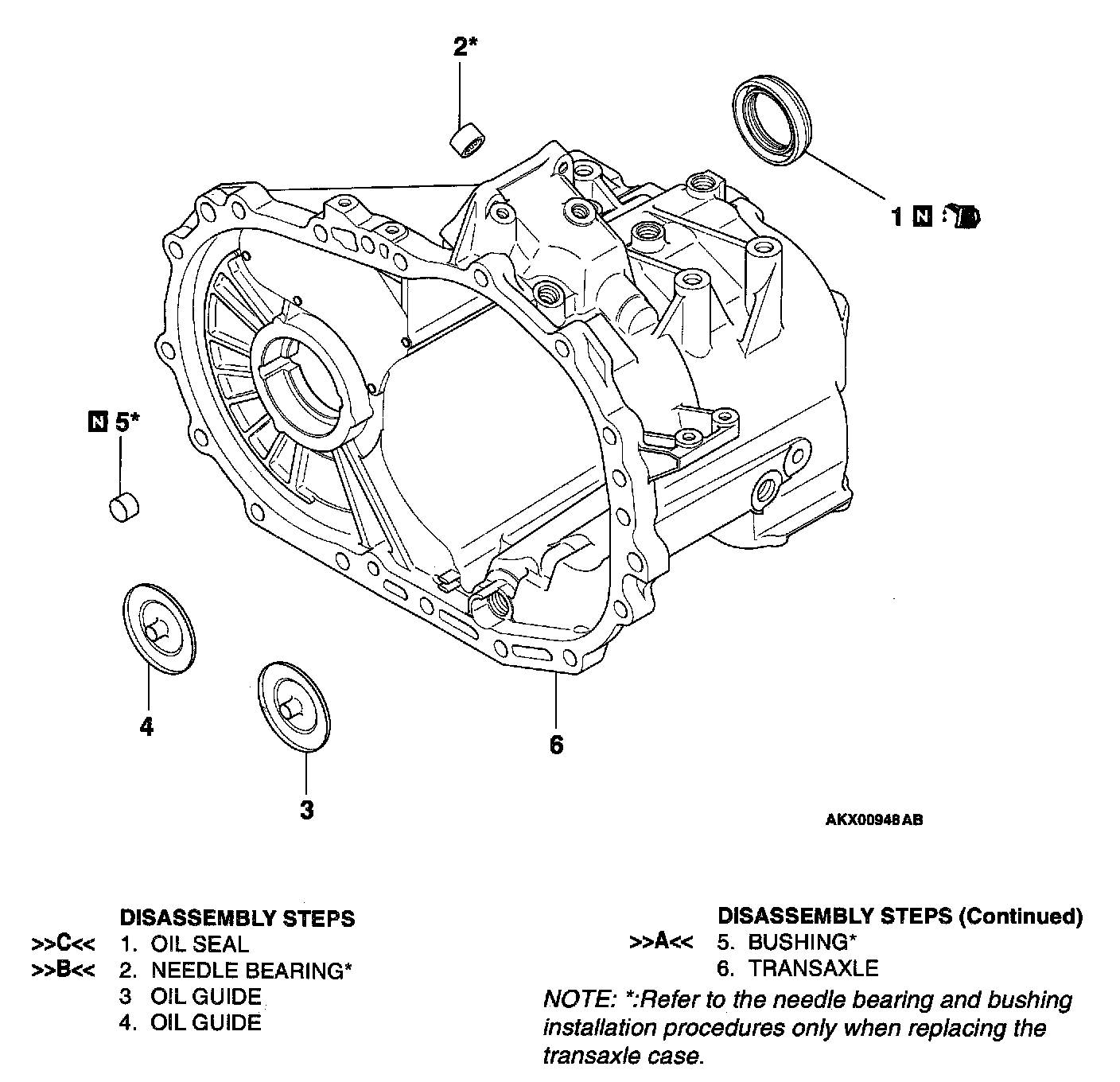

Transmission Case
Transmission Case / <F5M51> 3.0L:
INSTALLATION SERVICE POINTS
>> A <<
BUSHING INSTALLATION

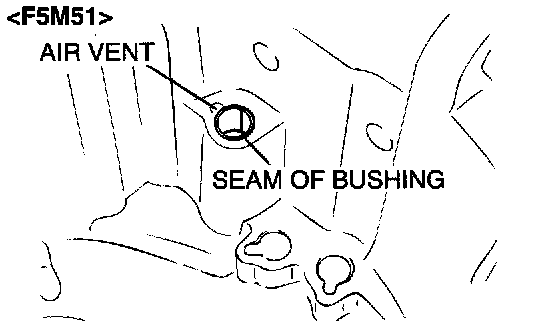

1. Press fit the bushing so the seam is away from the air vent.

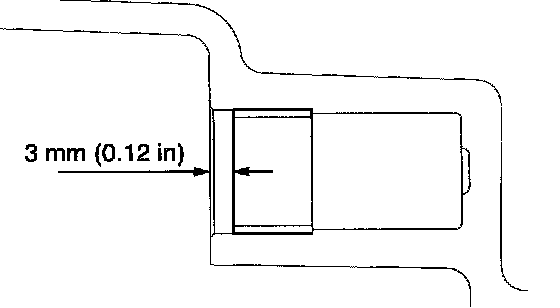

2. Be sure the bushing is fully seated as shown.
It must be 3 mm (0.12 inch) below the housing surface.
>> B <<
NEEDLE BEARING INSTALLATION

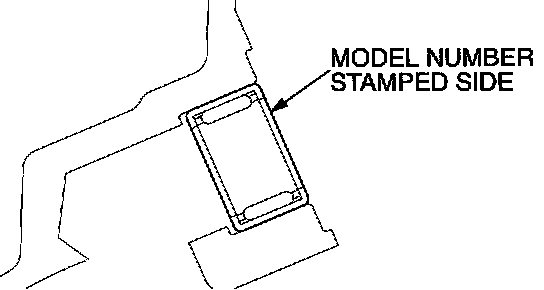

1. Check the installation direction of the needle bearing.
2. Press fit the needle bearing until it is flush with the case.
>> C <<
OIL SEAL INSTALLATION
1. Apply.gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4).

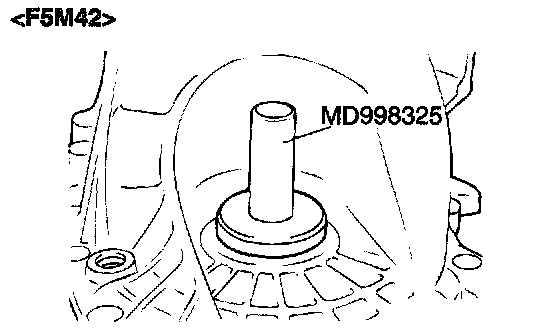

2. Using special tool MD998325
