Installation

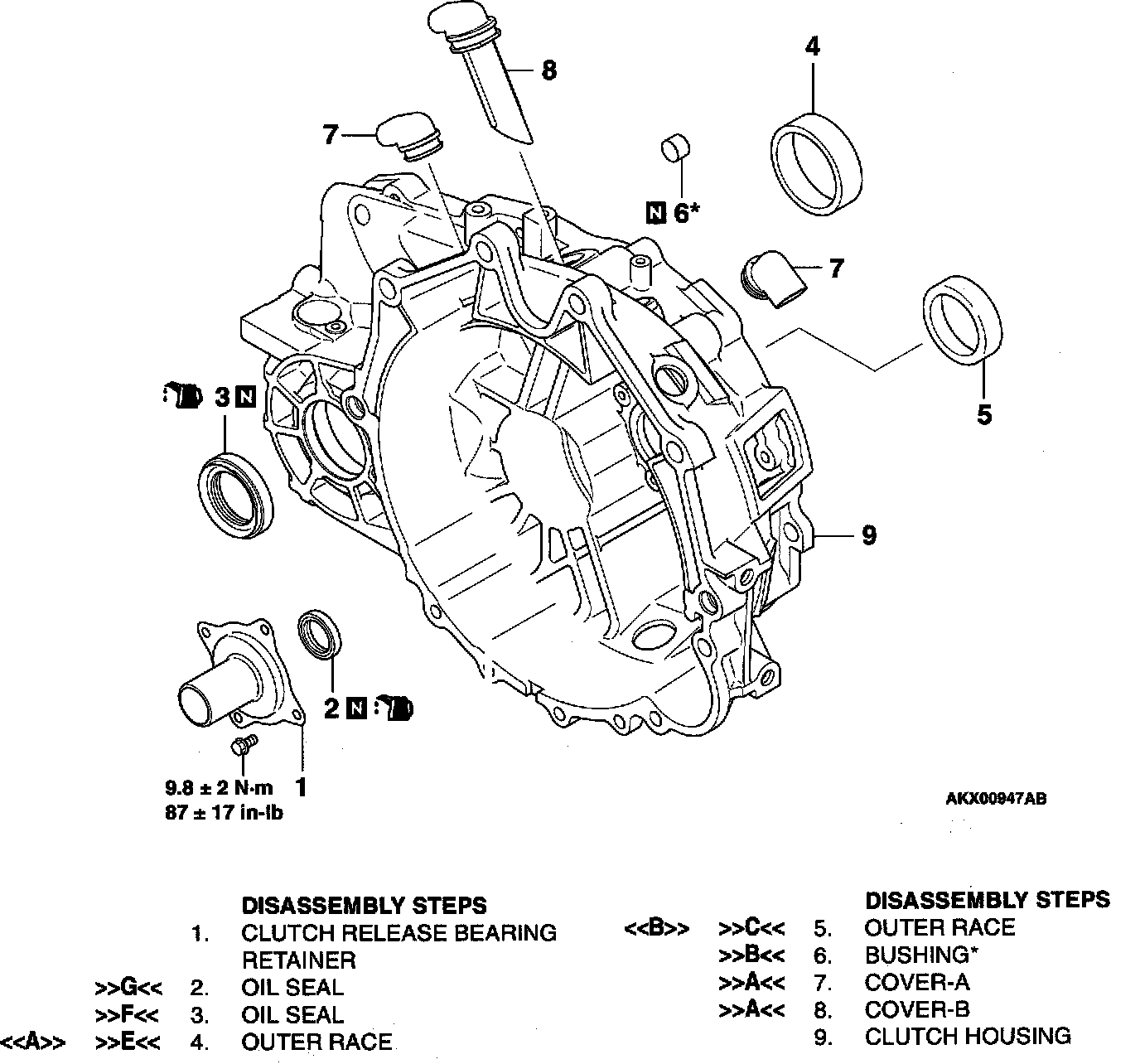

Clutch Housing / <F5M51> 3.0L:

INSTALLATION SERVICE POINTS






>> A <<

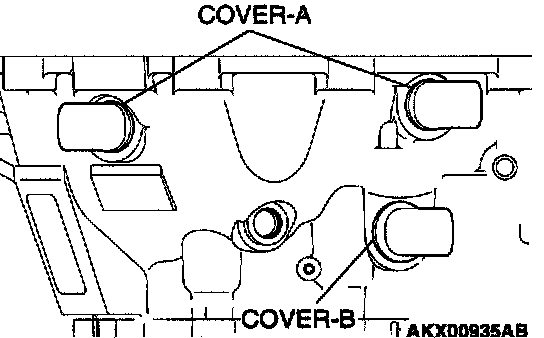

COVER-B / COVER-A INSTALLATION
Install the covers directed as shown in the illustration.










>> B <<
BUSHING INSTALLATION

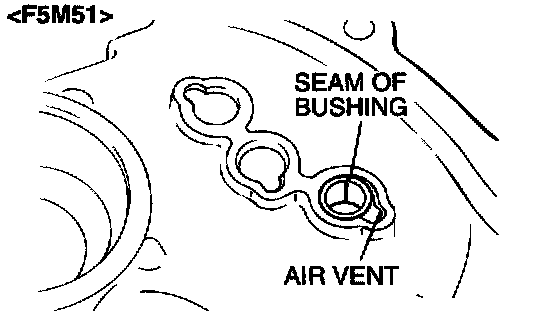

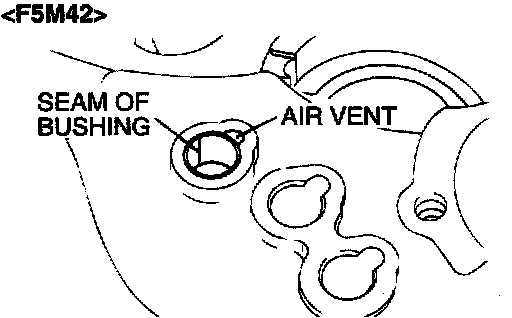

1. Press fit the bushing so the seam is away from the air vent.

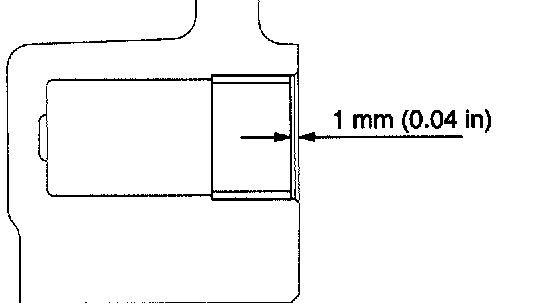

2. Be sure the bushing is fully seated as shown. It must be 1 mm (0.04 inch) below the housing surface.







>> C <<
OUTER RACE INSTALLATION
1. Check the installation direction of the outer race.

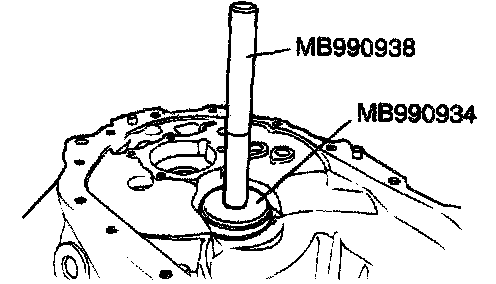

2. Using special, tools MB990938 and M13990934, press fit the outer race into the clutch housing.







>> D <<
OUTER RACE INSTALLATION

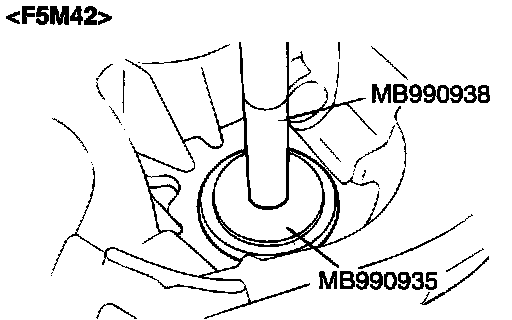

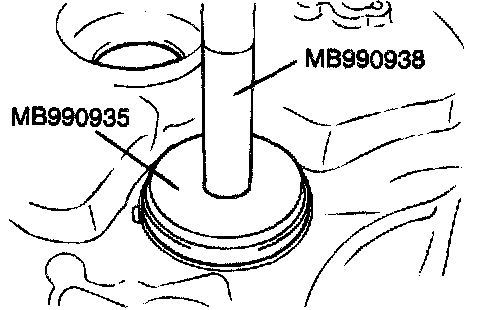

Using special tools MB990938 and M13990935, press fit the outer race into the clutch housing.










>> E <<
OUTER RACE INSTALLATION
1. Check the installation direction of the outer race.
2. Using special tools M13990938, MB990935 and MB991445 , press fit the outer race into the clutch housing.







>> F <<
OIL SEAL INSTALLATION

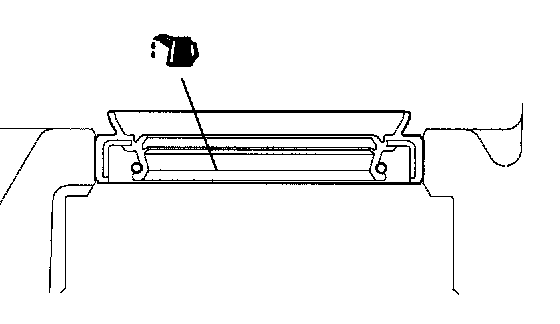

1. Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4) to the oil seal lip.

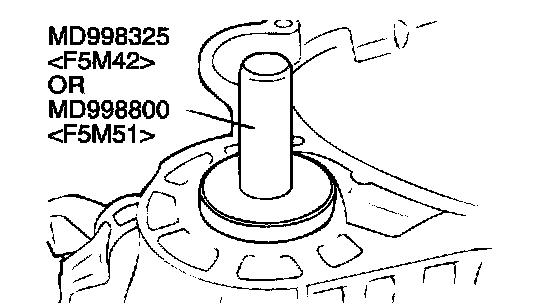

2. Using special tool MD998325 or MD998800 , press fit the oil seal into the clutch housing.

>> G <<

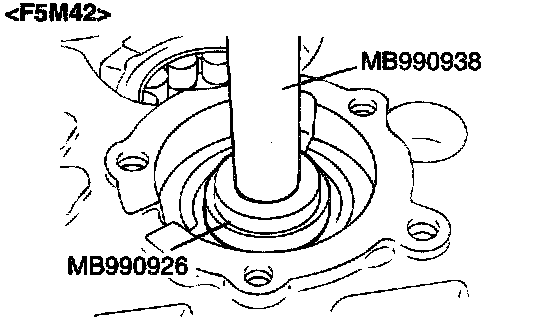

OIL SEAL INSTALLATION
1. Apply transmission oil (Hypoid gear oil SAE 75W-90 or 75W85W conforming to API classification GL-4) to the oil seal lip.

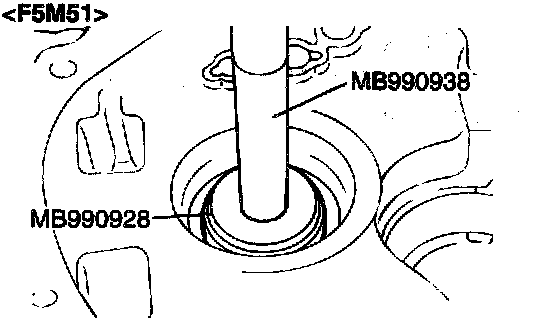

2. Using special tools M13990938, MB990926 and MB990928 , press fit the oil seal into the clutch housing.
