Clutch Slave Cylinder: Service and Repair

<3.0L ENGINE>:

Clutch Release Cylinder

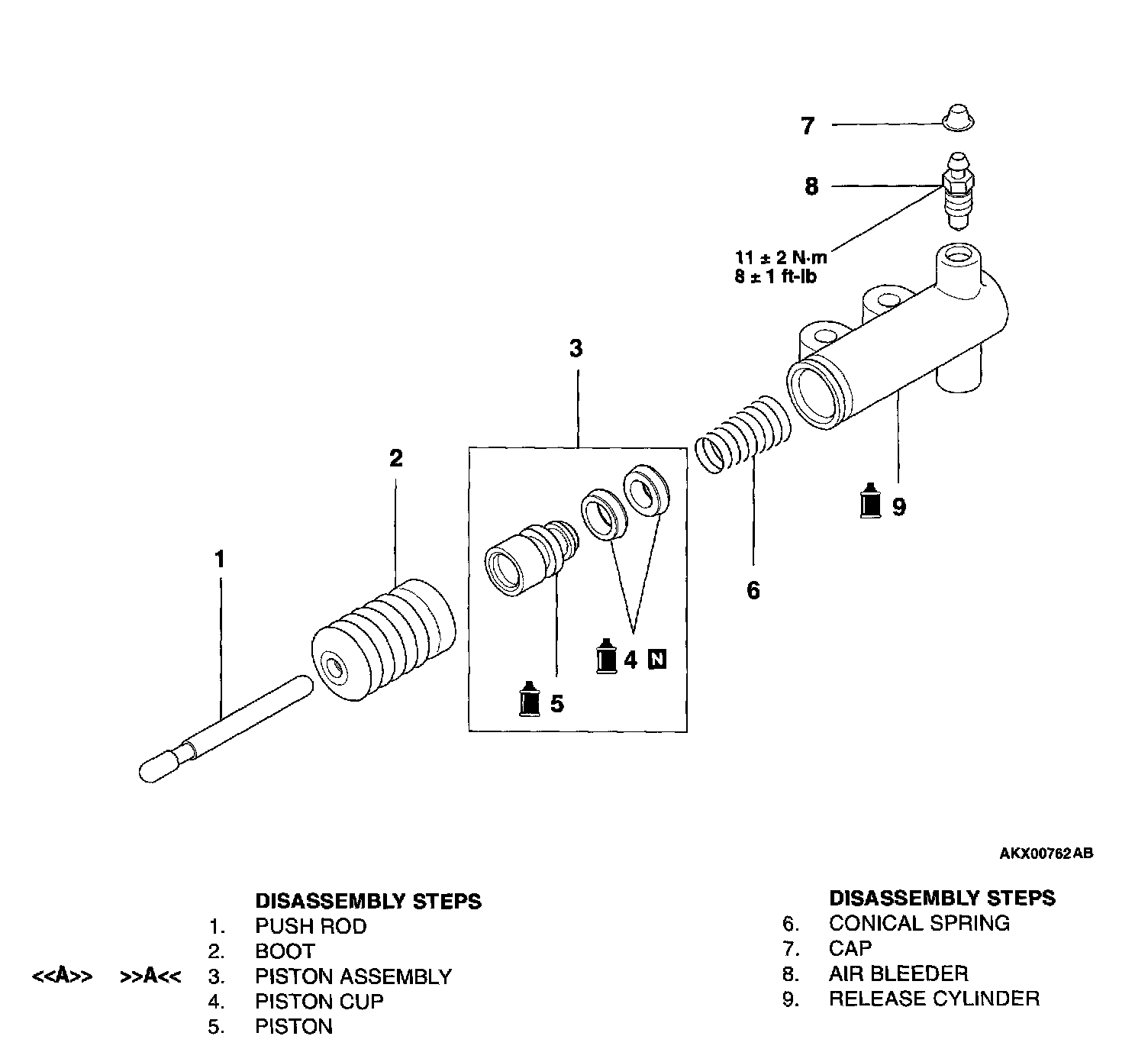

DISASSEMBLY AND REASSEMBLY
SERVICE POINTS

<>

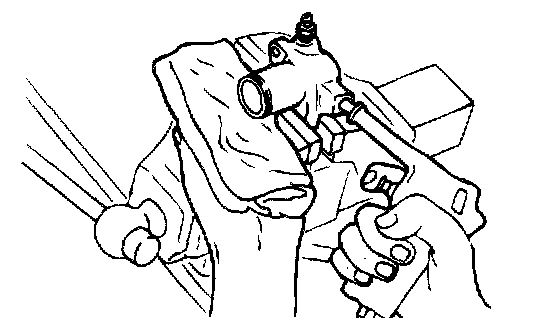

PISTON ASSEMBLY REMOVAL
1. Cover with a shop towel to prevent the piston from popping out.

CAUTION: Apply compressed air slowly to prevent brake fluid from splashing.

2. Apply the compressed air into the tube mounting hole to remove the piston assembly.

>>A<<
PISTON ASSEMBLY INSTALLATION

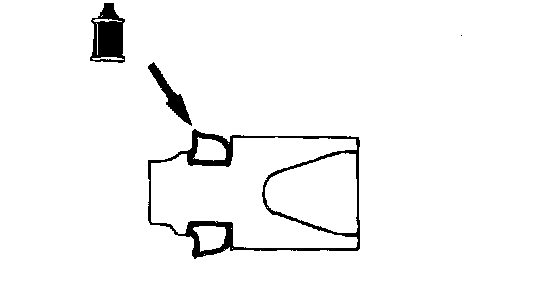

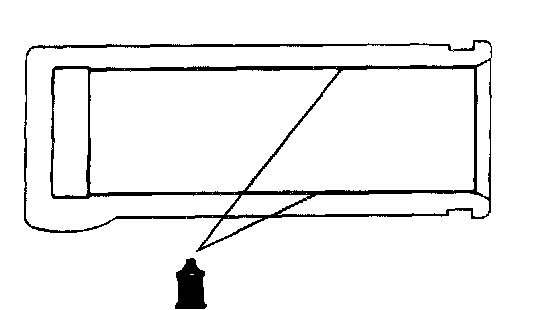

1. Apply brake fluid SAE J1703 (DOT3) to the piston cup and inner surface of the release cylinder.
2. Insert the piston assembly into the release cylinder.
