Clutch Master Cylinder: Service and Repair

Clutch Controls / Removal And Installation:

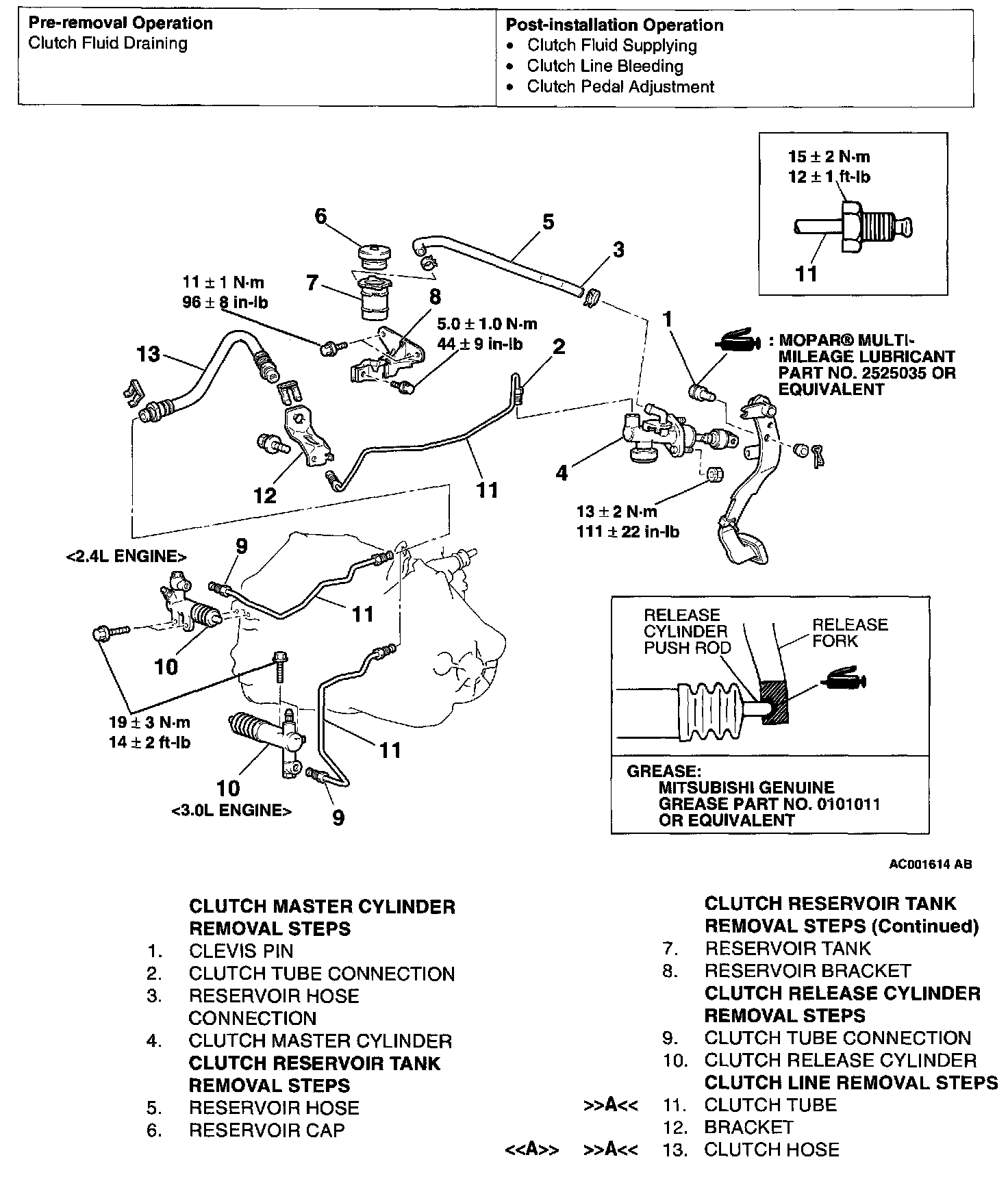

CLUTCH CONTROLS / Removal - Installation
SERVICE POINTS






<< A >>
CLUTCH HOSE REMOVAL

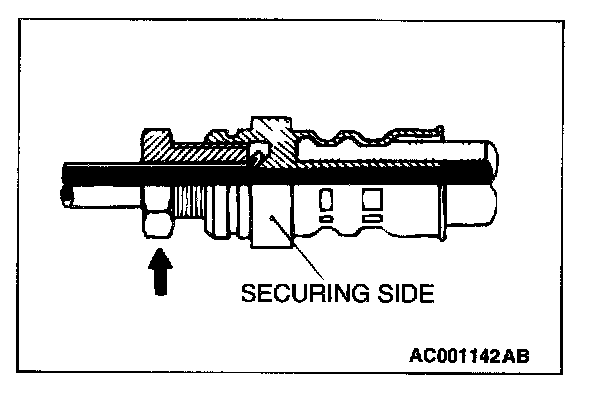

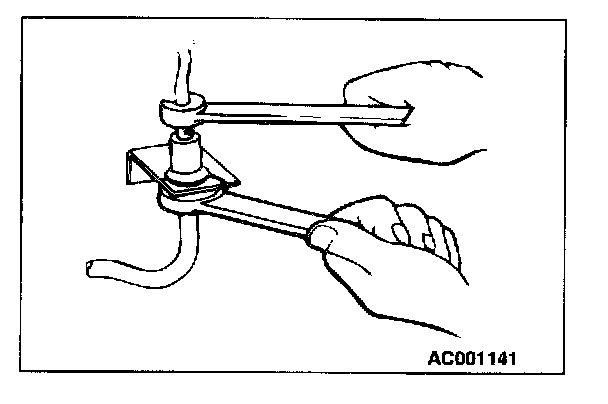

Holding the nut at the clutch hose side, loosen the flare nut on the clutch tube.







>> A <<
CLUTCH HOSE/CLUTCH TUBE INSTALLATION
1. Temporarily tighten the clutch tube flare nut by hand, and then tighten it to the specified torque, being careful that the clutch hose does not become twisted.
2. After tightening the clutch tube flare nut, check to be sure there is no leakage of the clutch fluid.



INSPECTION
Check the bushing for wear.

Check the master cylinder or clutch hose for fluid leakage.

Check the clutch hose or tube for cracks or clogging.


CLUTCH CONTROLS / Disassembly - Assembly
SERVICE POINTS

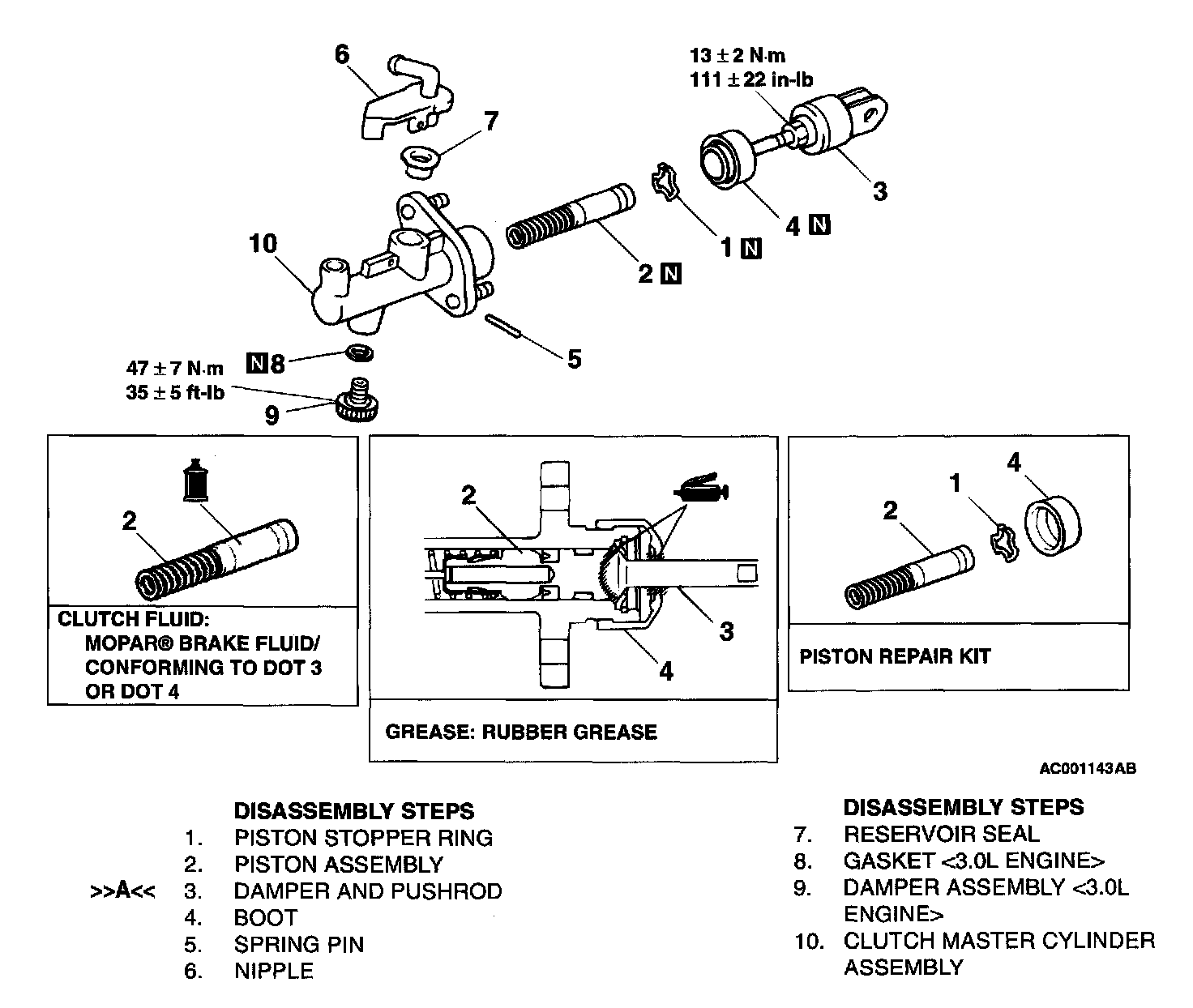

CLUTCH CONTROLS / DISASSEMBLY AND ASSEMBLY:

>> A <<
DAMPER AND PUSHROD INSTALLATION

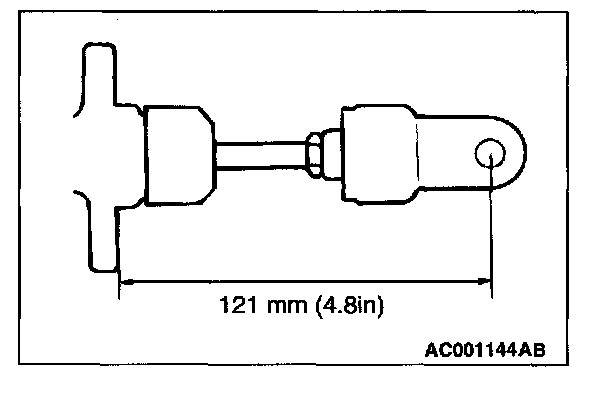

Set the length of the pushrod assembly to the shown dimension to make the adjustment of the clutch pedal easier.

INSPECTION
Check the inside cylinder body for rust and scars.

Check the piston cup for wear and deformation.

Check the piston for rust and scars.

Check the pipe connection for clogging.
