Control Module Pinout Values

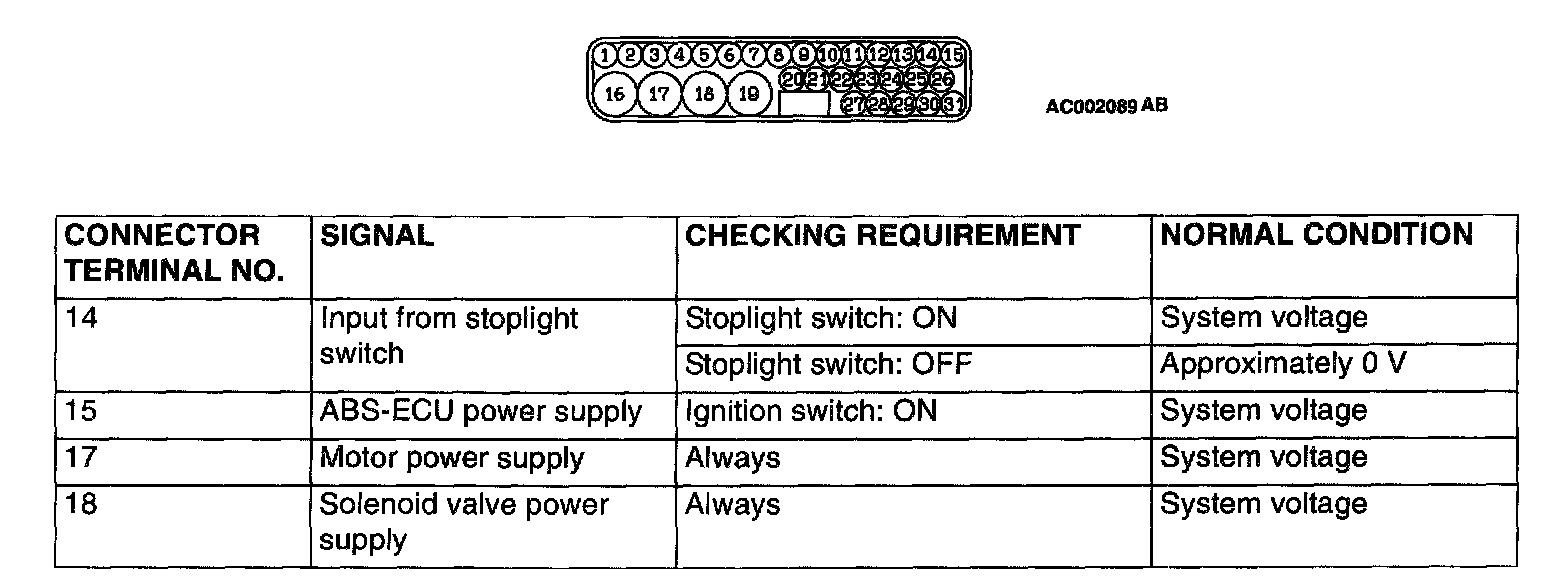

CHECK AT ABS-ECUTERMINAL VOLTAGE CHECK CHART
1. Measure the voltages between terminals (16), (19) and (30) (ground terminals) and each respective terminal.
2. The terminal layouts are shown in the illustrations.
NOTE: Do not measure terminal voltage for approximately three seconds after the ignition switch is fumed to "ON." The ABS-ECU performs the initial check during that period.

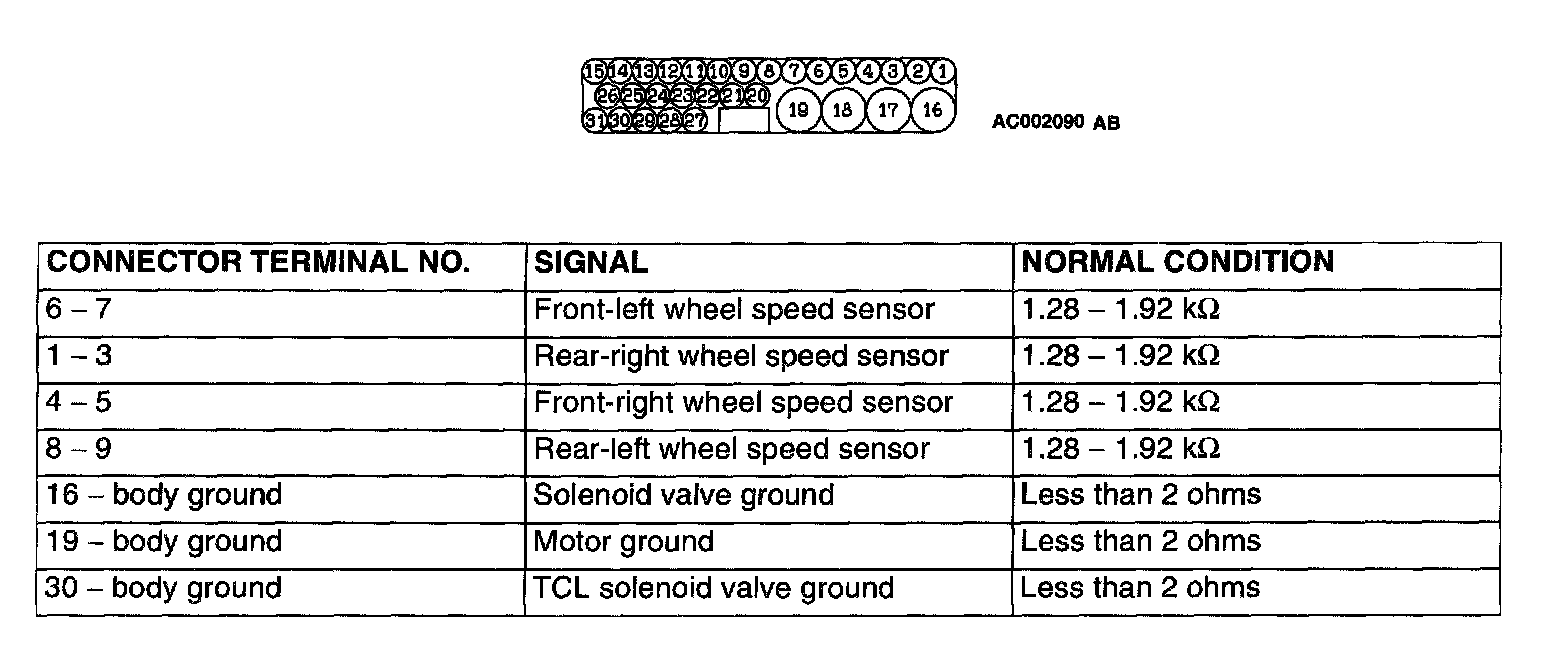

RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS
1. Turn the ignition switch to the "LOCK" (OFF) position and disconnect the ABS-ECU connectors before checking resistance and continuity.
2. Check between the terminals indicated in the table.
3. The terminal layouts are shown in the illustration.
