Home >> Dodge >> 2001 >> Stratus Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

Taillight, Position Light, Rear Side Marker Light And License Plate Light <Stratus> Part 1:

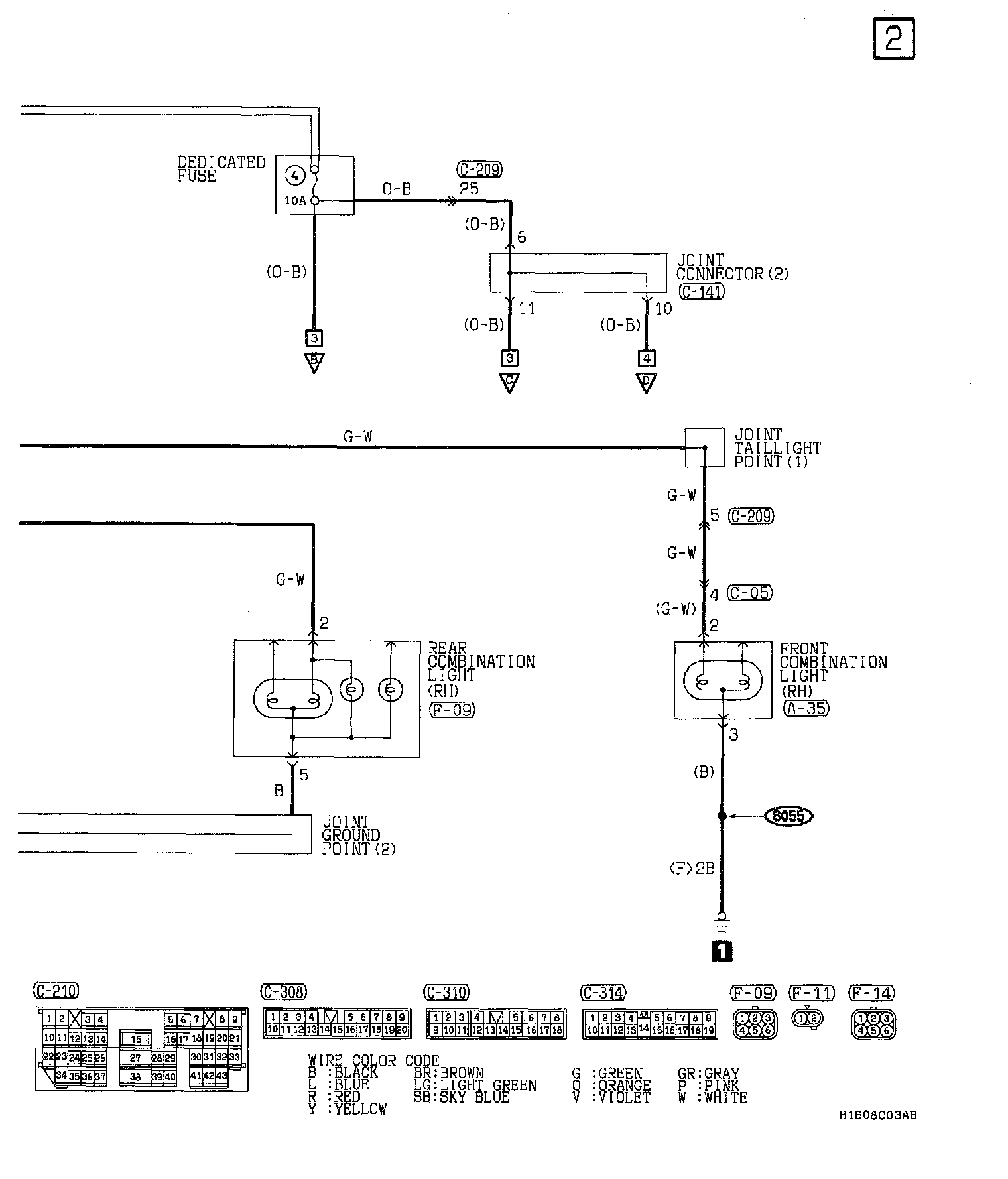

Taillight, Position Light, Rear Side Marker Light And License Plate Light <Stratus> Part 2:

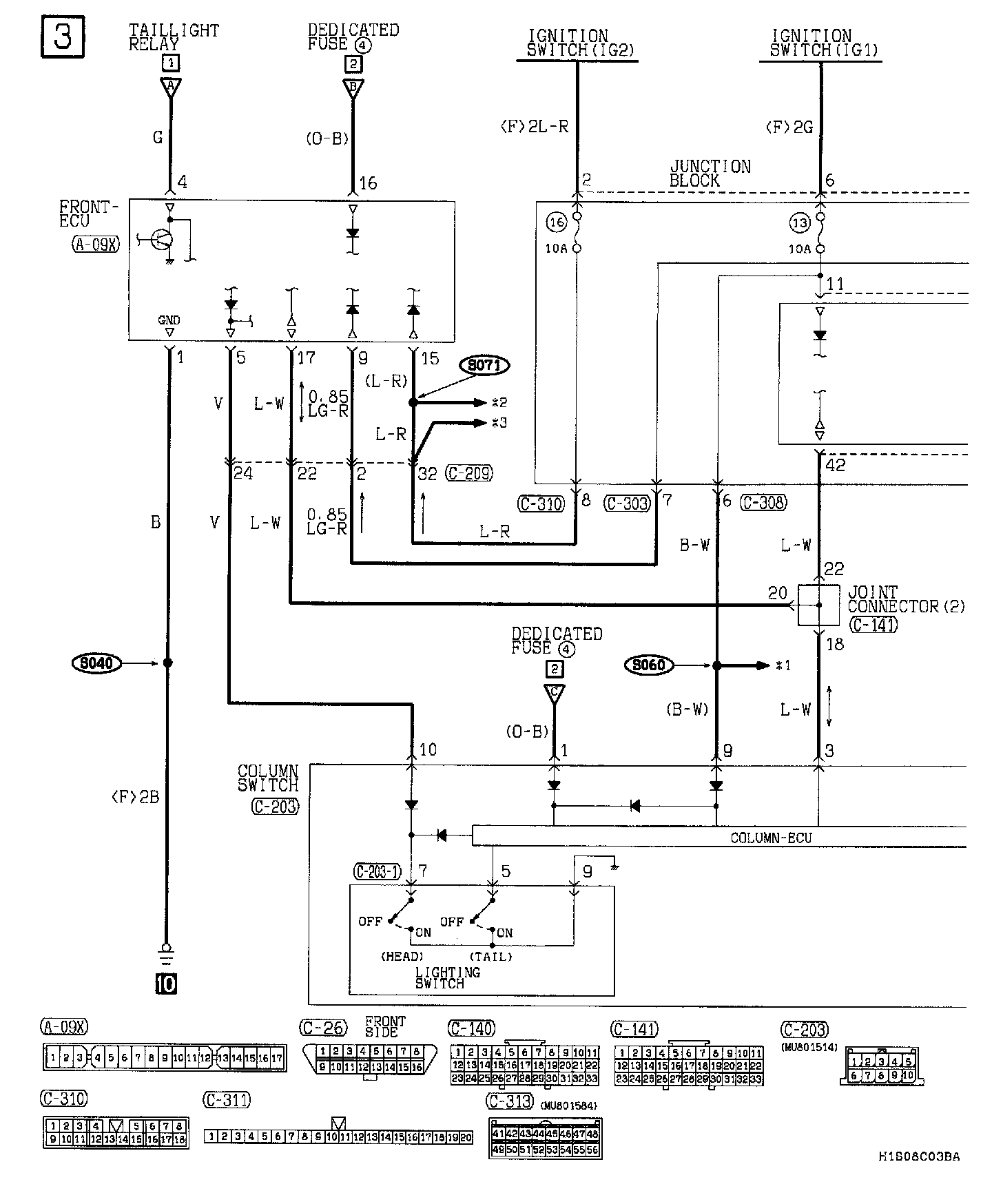

Taillight, Position Light, Rear Side Marker Light And License Plate Light <Stratus> Part 3:

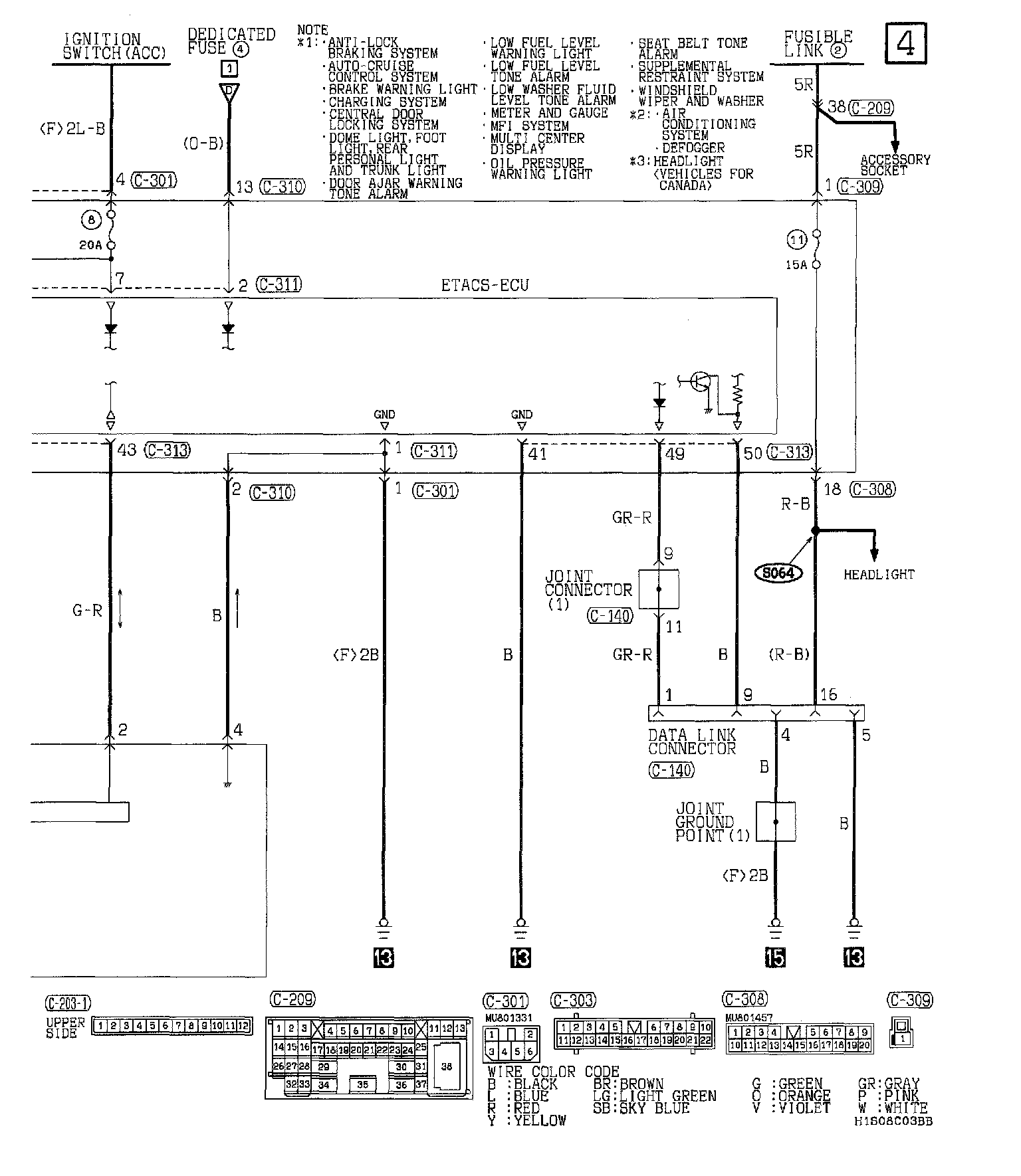

Taillight, Position Light, Rear Side Marker Light And License Plate Light <Stratus> Part 4:
