Electrical Diagrams

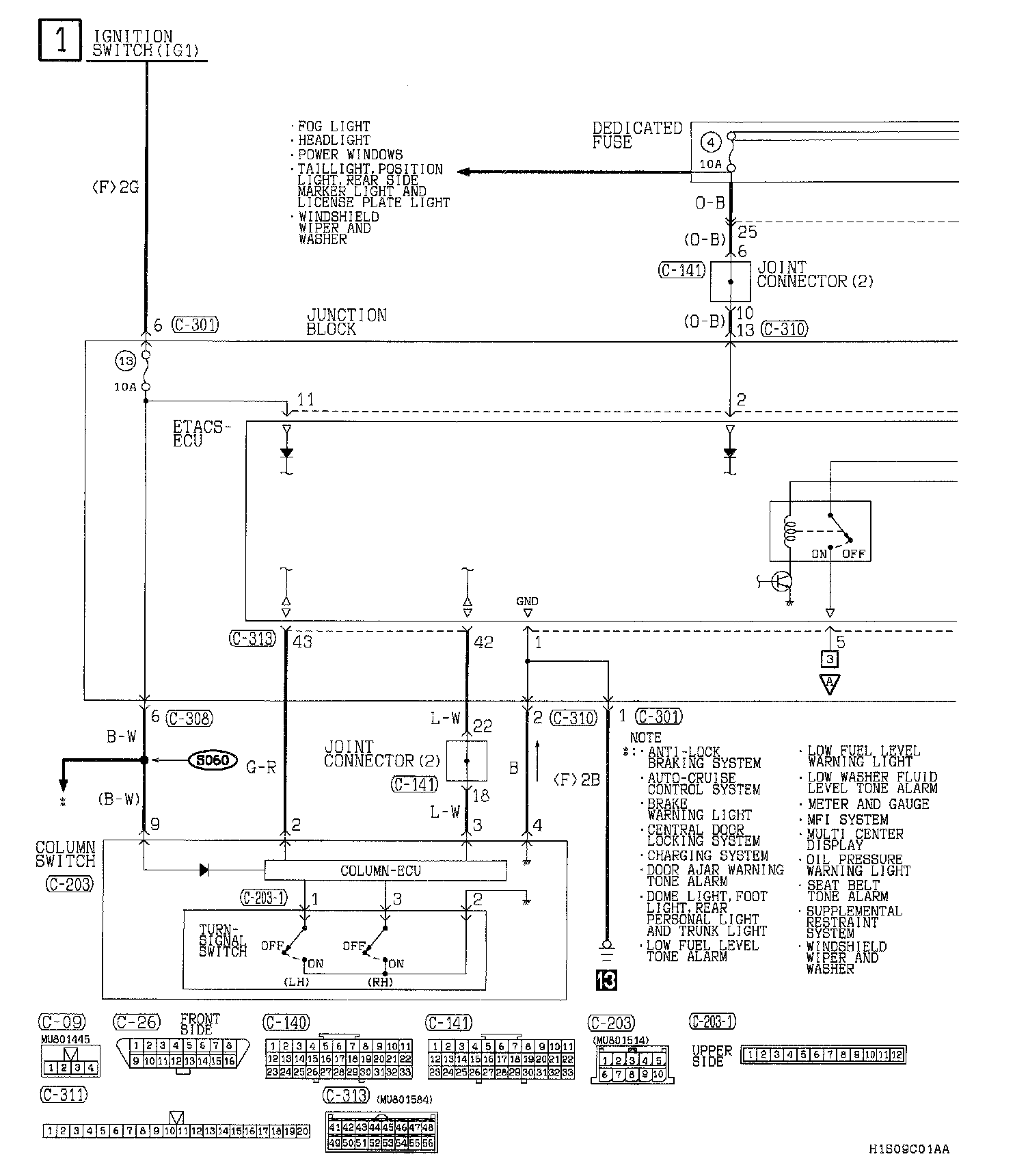

Turn-Signal Light And Hazard Warning Light <Stratus> Part 1:

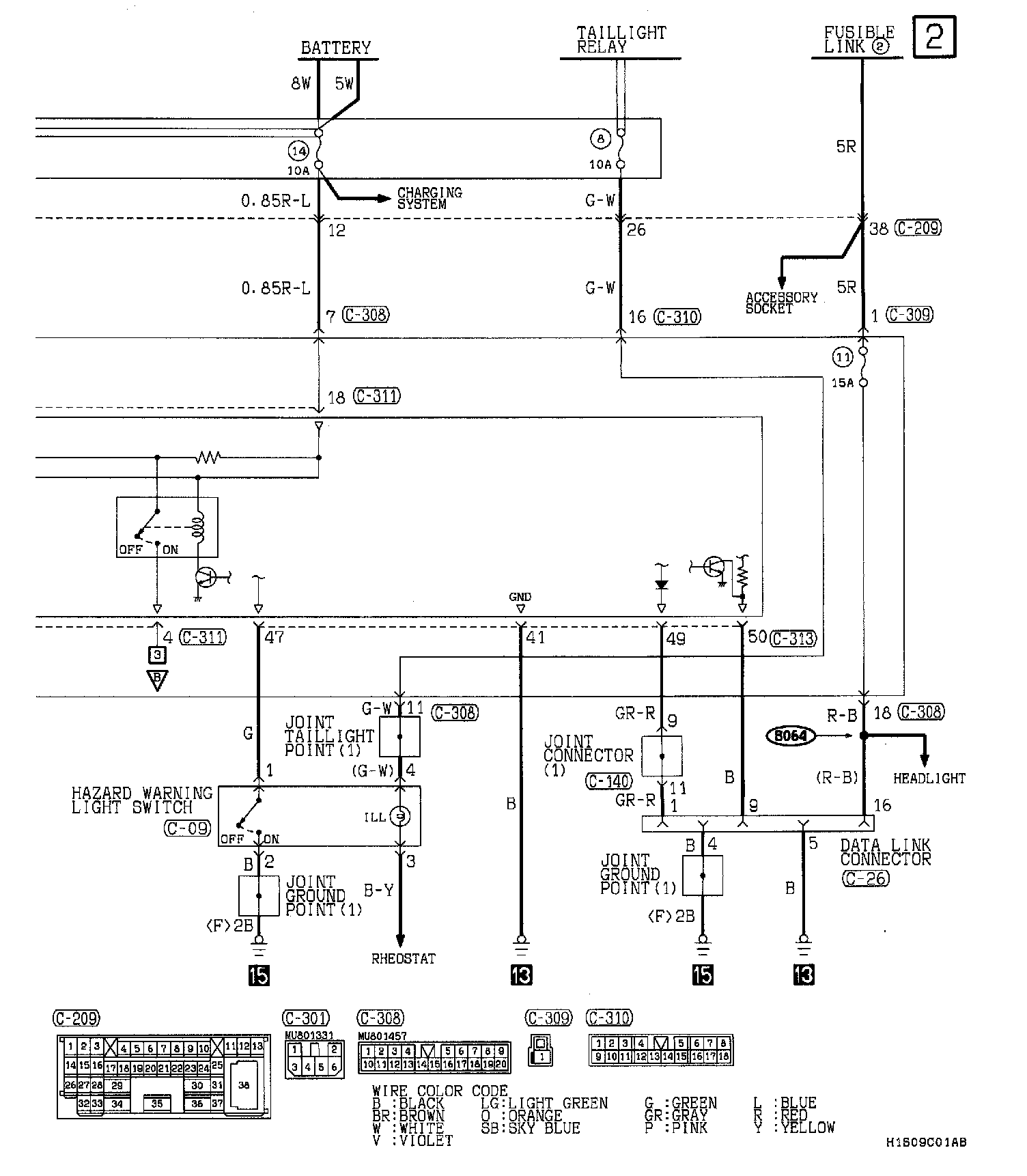

Turn-Signal Light And Hazard Warning Light <Stratus> Part 2:

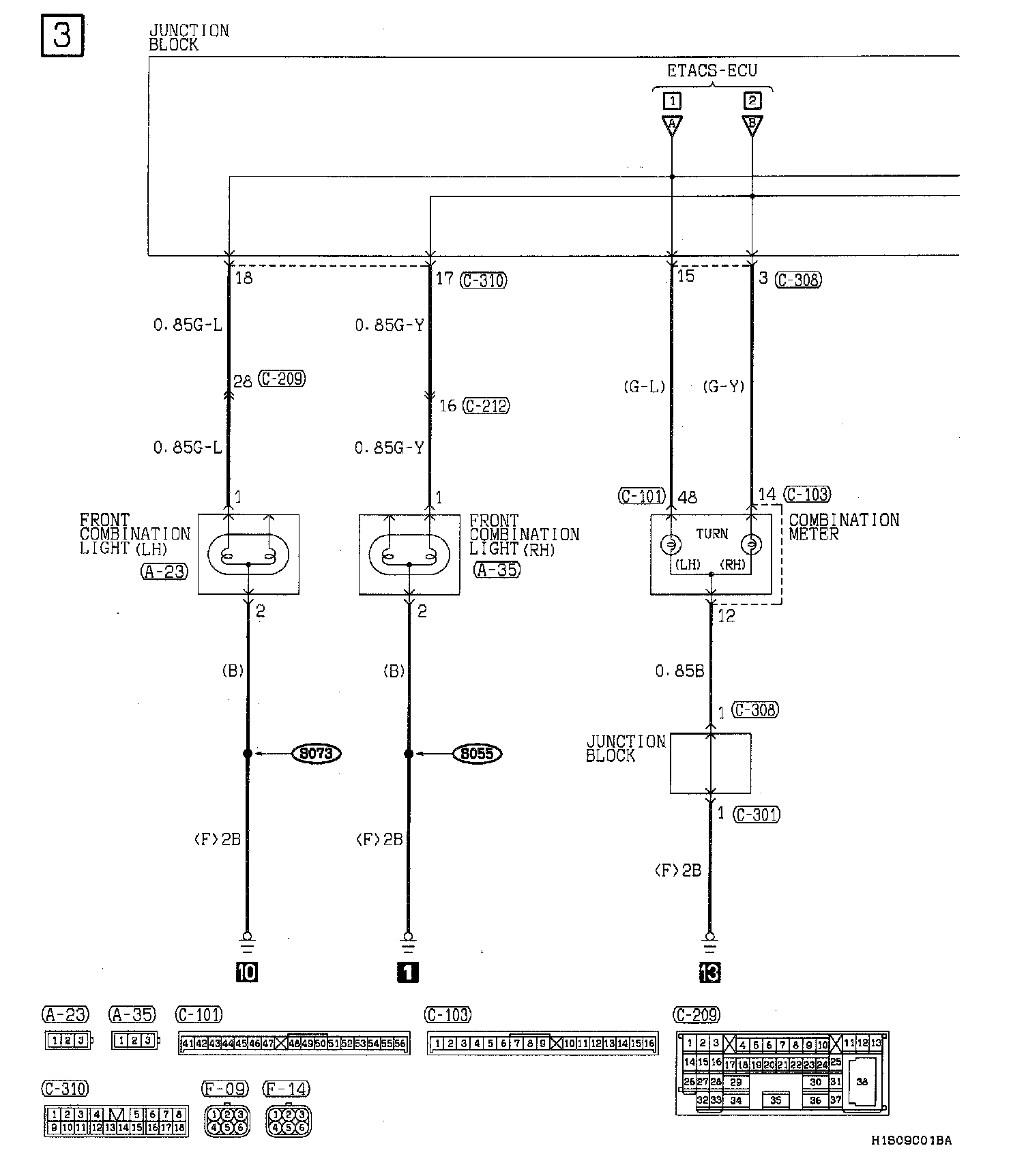

Turn-Signal Light And Hazard Warning Light <Stratus> Part 3:

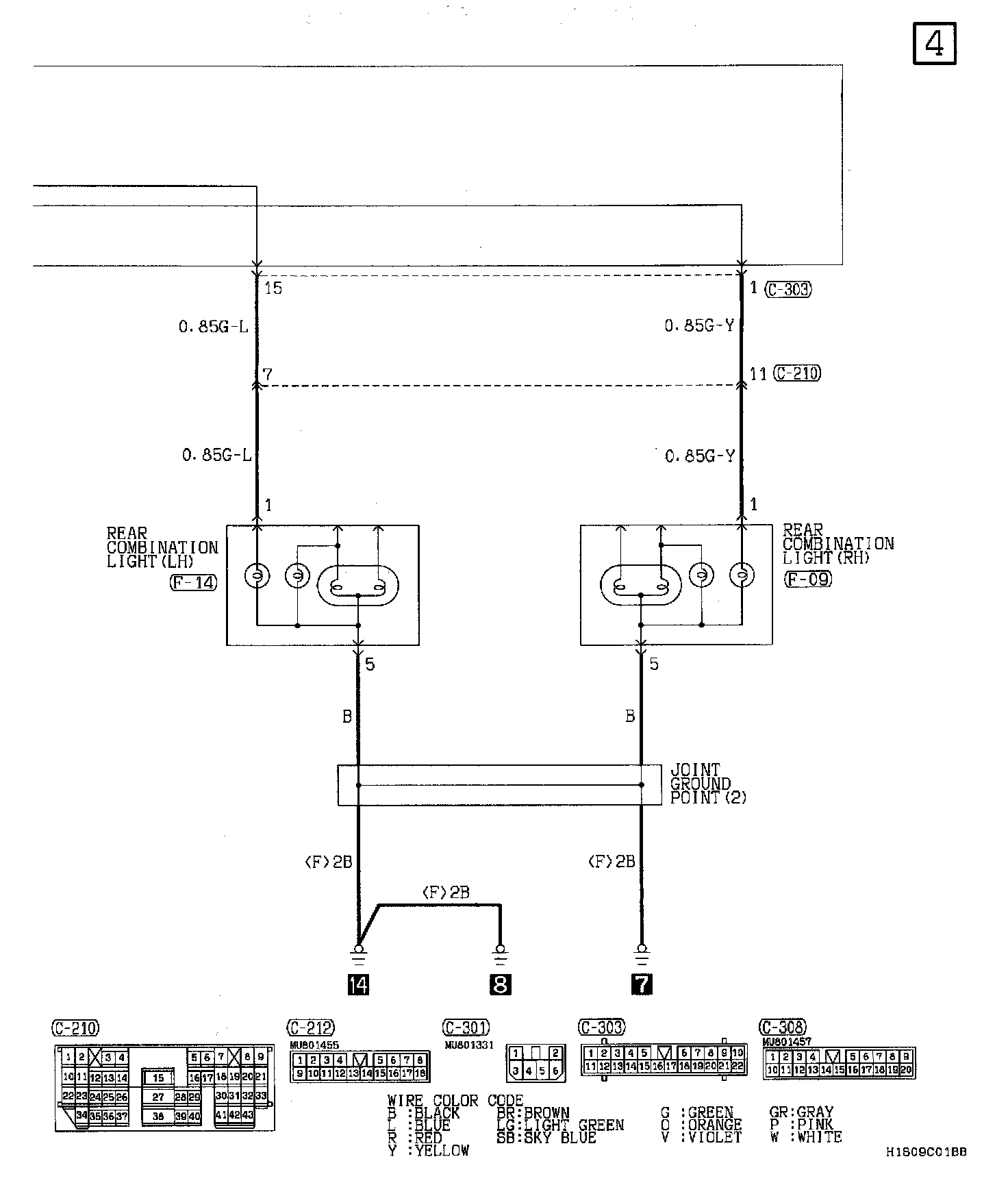

Turn-Signal Light And Hazard Warning Light <Stratus> Part 4:
