Cooler Bypass Valve

COOLER BYPASS VALVE









DESCRIPTION

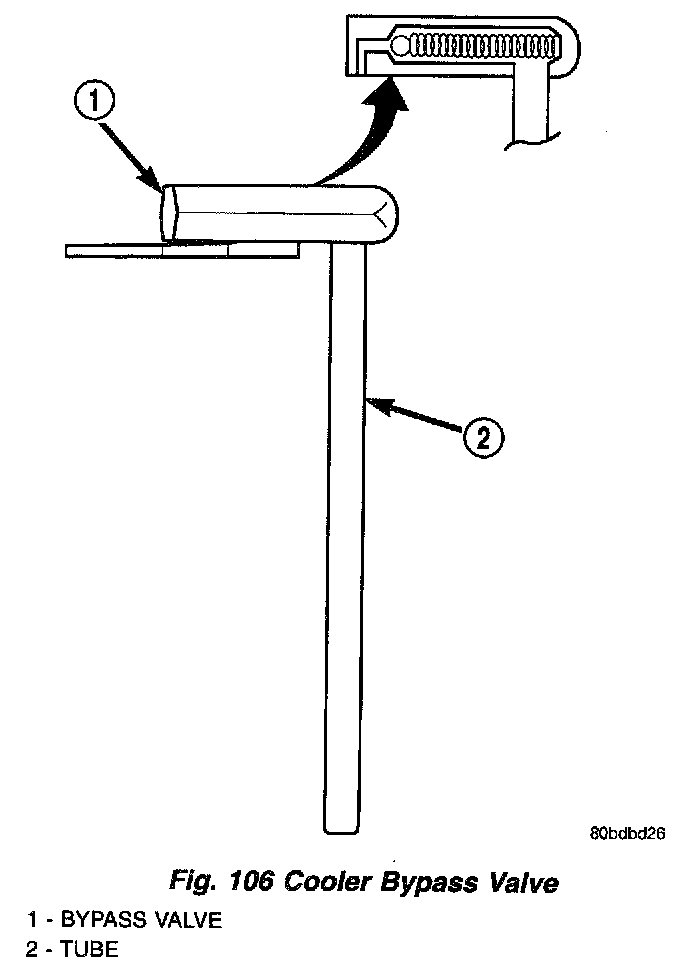

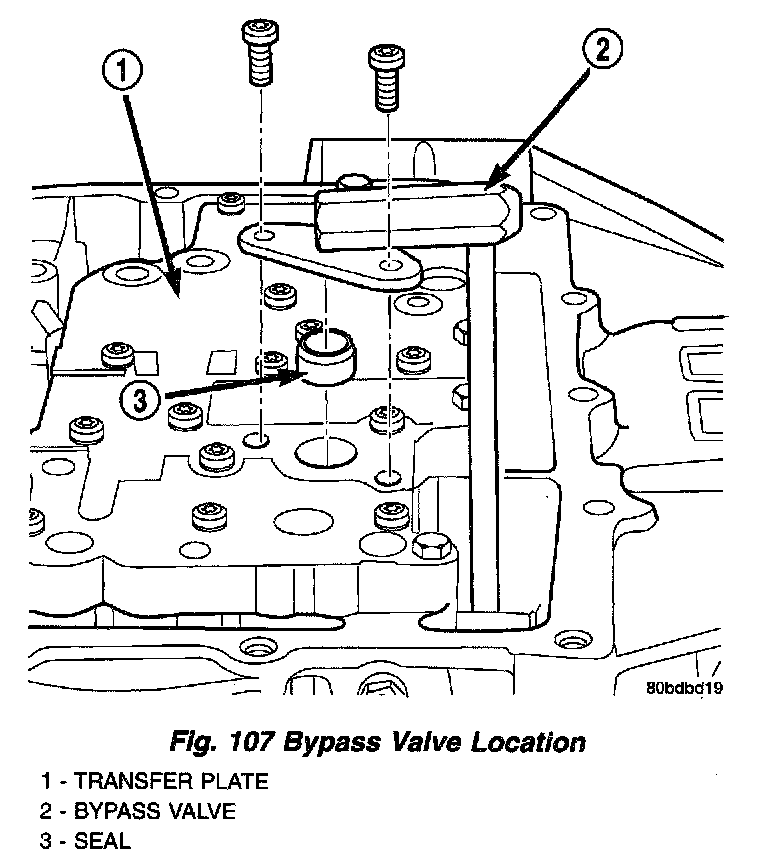

The cooler bypass valve consists of an integrated check ball and spring, and a return tube (Fig. 106). It is fastened to and seals to the valve body transfer plate (Fig. 107).

OPERATION
The cooler bypass valve (Fig. 106) is designed to bypass the transaxle oil cooler circuit in cold weather conditions, or when circuit restrictions exceed 25-30 p.s.i. The integrated return tube carries bypassed oil back to the oil pump.
