Home >> Dodge >> 2001 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Canister Purge Solenoid >> Locations

Canister Purge Solenoid: Locations

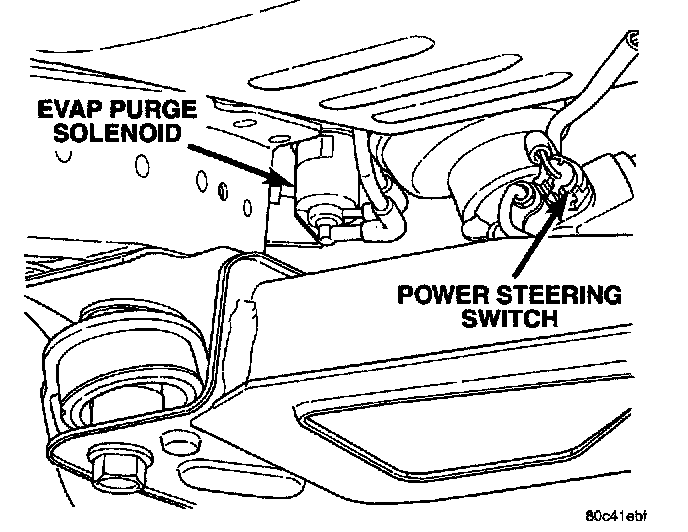

EVAP Purge Solenoid / Power Steering Switch:




Fig. 2 Proportional Purge Solenoid Valve:




The solenoid attaches to a bracket near the steering gear.
