General Description

SENSOR RETURN - PCM INPUT
The sensor return circuit provides a low electrical noise ground reference for all of the systems sensors. The sensor return circuit connects to internal ground circuits within the Powertrain Control Module (PCM).

SCI RECEIVE - PCM INPUT
SCI Receive is the serial data communication receive circuit for the DRB scan tool. The Powertrain Control Module (PCM) receives data from the DRB through the SCI Receive circuit.

IGNITION SENSE - PCM INPUT
The ignition sense input informs the Powertrain Control Module (PCM) that the ignition switch is in the crank or run position.

PCM GROUND
Ground is provided through multiple pins of the PCM connector. Depending on the vehicle there may be as many as three different ground pins. There are power grounds and sensor grounds.

The power grounds are used to control the ground side of any relay, solenoid, ignition coil or injector. The signal ground is used for any input that uses sensor return for ground, and the ground side of any internal processing component.

The SBEC III case is shielded to prevent RFI and EMI. The PCM case is grounded and must be firmly attached to a good, clean body ground.

Internally all grounds are connected together, however there is noise suppression on the sensor ground. For EMI and RFI protection the case is also grounded separately from the ground pins.

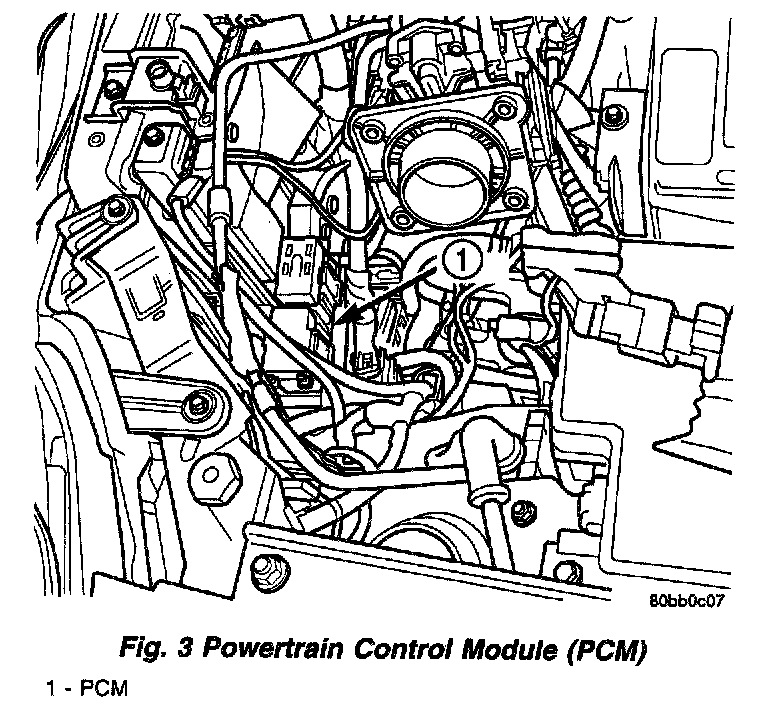

Fig.3 Powertrain Control Module (PCM):

POWERTRAIN CONTROL MODULE (PCM)
The Powertrain Control Module (PCM) is a digital computer containing a microprocessor, The PCM receives input signals from various switches and sensors that are referred to as PCM Inputs. Based on these inputs, the PCM adjusts various engine and vehicle operations through devices that are referred to as PCM Outputs.

PCM Inputs:
- Automatic Shutdown (ASD) Sense
- Air Conditioning Controls
- Battery Voltage
- Inlet Air/Battery Temperature Sensor Brake Switch
- Camshaft Position Sensor
- Crankshaft Position Sensor
- Clutch Interlock Switch
- Evaporative Emission Sense
- Engine Coolant Temperature Sensor
- Engine Oil Pressure Switch
- Fuel Level Sensor (PCI Bus)
- Ignition Switch
- Inlet Air/Intake Air Temperature Sensor
- Knock Sensor
- Leak Detection Switch
- Manifold Absolute Pressure (MAP) Sensor
- Oxygen Sensors
- Power Steering Pressure Switch
- Red Brake Warning Indicator
- SCI Receive
- Speed Control Switches
- Throttle Position Sensor
- Transmission Park/Neutral Switch (automatic transmission)
- Vehicle Speed Sensor

PCM Outputs:
- Air Conditioning WOT Relay
- Auto Shutdown (ASD) Relay
- Charging Indicator Lamp (PCI Bus)
- Data Link Connector
- Proportional Purge Solenoid
- Fuel Injectors
- Fuel Pump Relay
- Generator Field
- Idle Air Control Motor
- Ignition Coils
- Malfunction Indicator (Check Engine) Lamp (PCI Bus)
- Oxygen Heater Ground Control
- Radiator Fan Relay
- SCI Transmit
- Speed Control Solenoids
- Starter Relay
- Tachometer (PCI Bus)
- Torque Convertor Clutch Solenoid

Based on inputs it receives, the PCM adjusts fuel injector pulse width, idle speed, ignition spark advance, ignition coil dwell and EVAP canister purge operation. The PCM regulates the cooling fan, air conditioning and speed control systems. The PCM changes generator charge rate by adjusting the generator field. The PCM also performs diagnostics.

The PCM adjusts injector pulse width (air-fuel ratio) based on the following inputs.
- Battery voltage
- Coolant temperature
- Inlet Air/Intake air temperature
- Exhaust gas content (oxygen sensor)
- Engine speed (crankshaft position sensor)
- Manifold absolute pressure
- Throttle position

The PCM adjusts ignition timing based on the following inputs.
- Coolant temperature
- Inlet Air/Intake air temperature
- Engine speed (crankshaft position sensor)
- Knock sensor
- Manifold absolute pressure
- Throttle position
- Transmission gear selection (park/neutral switch)

The PCM also adjusts engine idle speed through the idle air control motor based on the following inputs.
- Air conditioning sense
- Battery voltage
- Battery temperature
- Brake switch
- Coolant temperature
- Engine speed (crankshaft position sensor)
- Engine run time
- Manifold absolute pressure
- Power steering pressure switch
- Throttle position
- Transmission gear selection (park/neutral switch)
- Vehicle distance (speed)

The crankshaft position sensor signal is sent to the PCM. If the PCM does not receive the signal within approximately one second of engine cranking, it deactivates the ASD relay and fuel pump relay. When these relays deactivate, power is shut off from the fuel injectors, ignition coils, heating element in the oxygen sensors and the fuel pump.

The PCM contains a voltage converter that changes battery voltage to a regulated 8 volts direct current to power the camshaft position sensor, crankshaft position sensor and vehicle speed sensor. The PCM also provides a 5 volt direct current supply for the manifold absolute pressure sensor and throttle position sensor.

8 VOLT SUPPLY - PCM OUTPUT
The PCM supplies 8 volts to the crankshaft position sensor, camshaft position sensor.

5 VOLT SUPPLY - PCM OUTPUT
The PCM supplies 5 volts to the following sensors:
- A/C pressure transducer
- Engine coolant temperature sensor
- Manifold absolute pressure sensor
- Throttle position sensor
- Linear EGR solenoid
