Evaporator Drain Tube: Service and Repair

REMOVAL
1. Raise vehicle on a suitable lift.

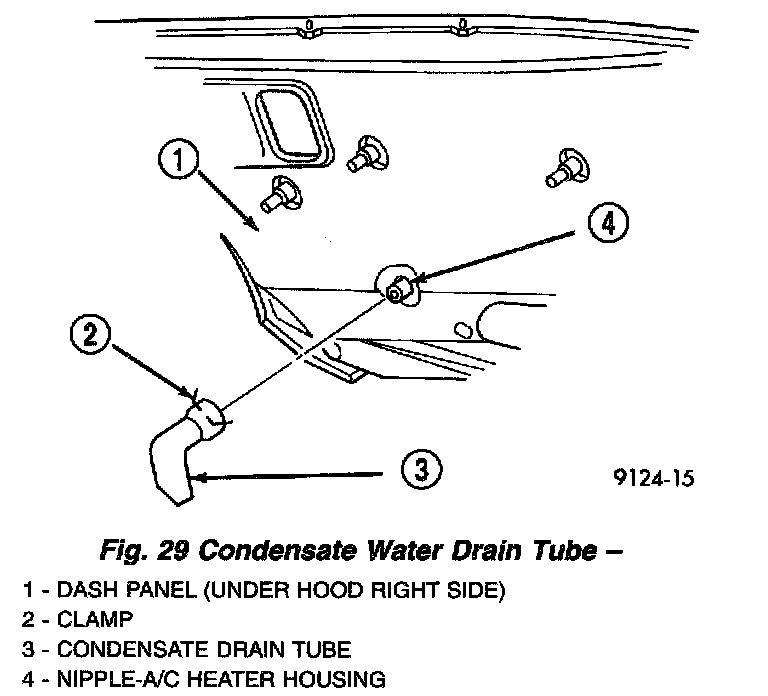

Fig.29 Condensate Water Drain Tube:

2. Locate rubber drain tube on right side of dash panel under the hood.
3. Squeeze clamp and remove drain tube.

INSTALLATION
1. Squeeze the retaining clamp and install the tube over the nipple.
2. Lower the vehicle.
