ACM Interrogate Right SIACM (Active)

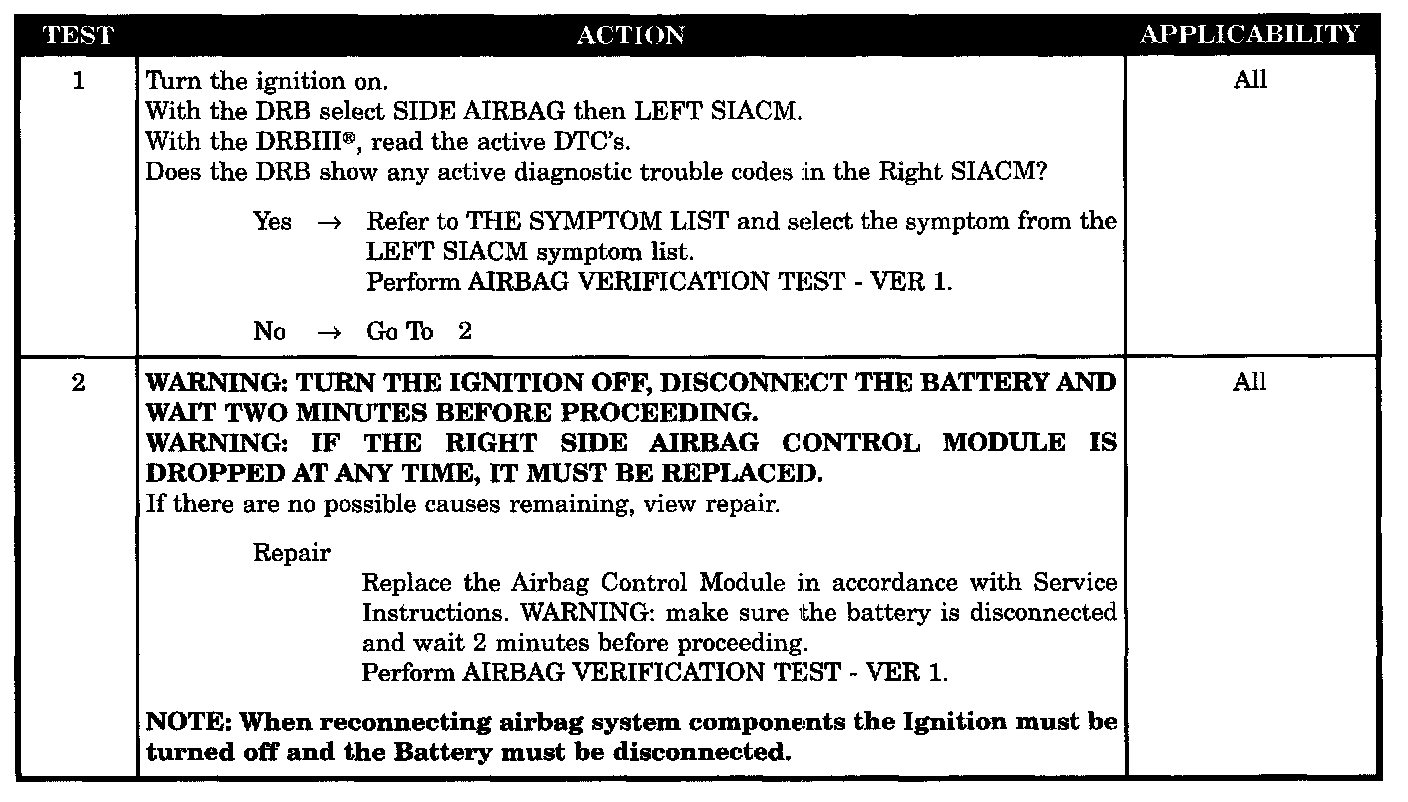

Tests 1 - 2:

SYMPTOM
ACM, INTERROGATE RIGHT SIACM - ACTIVE

WHEN MONITORED
With ignition ON, the ACM momtors the PCI Bus for a Right SIACM status message containing the airbag warning lamp "Lamp ON/ OFF" request The status message is sent to the ACM once each second or upon any change in the active DTCs

SET CONDITION
The Code Will set, if the ACM receives an LAMP ON status message from the Right SIACM. NOTE: This indicates that there is an active diagnostic trouble code in the Right SIACM.

POSSIBLE CAUSES
- Interrogate right SIACM
- ACM, Interrogate right SIACM
