Driver Seat Switch Test

1. Remove switch, refer to Switch Removal and Installation.

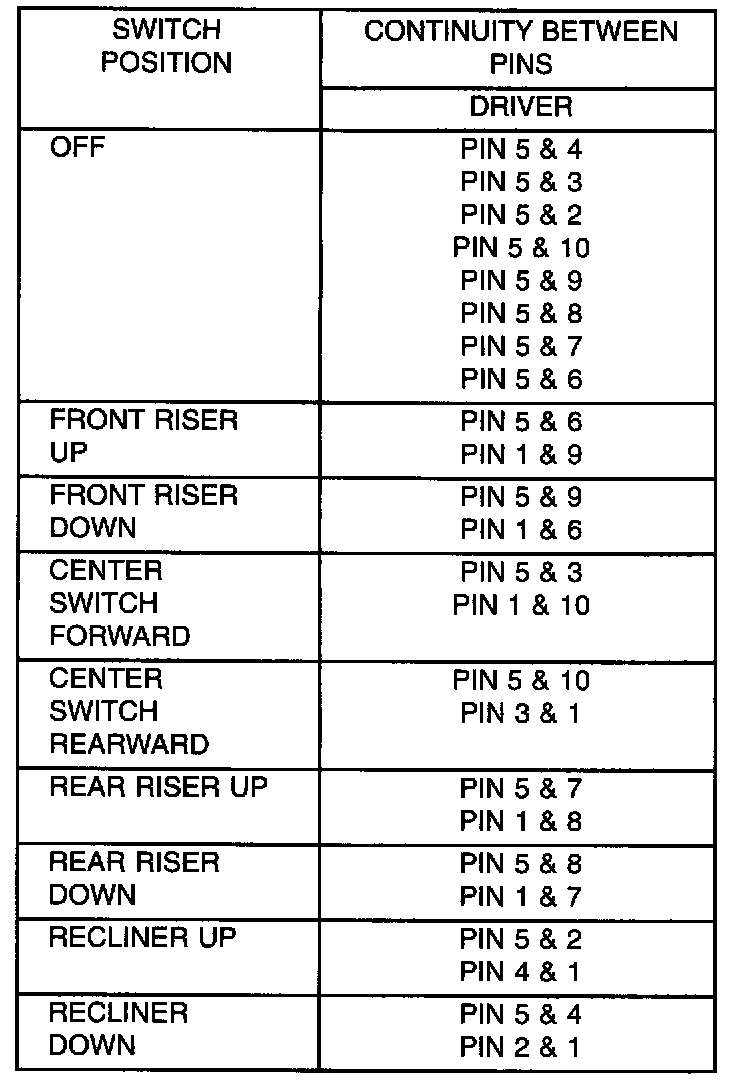

Driver Seat Switch Continuity Test:

Fig.3 Seat Switch Pin Call-Out:

2. Using an ohmmeter, perform the Seat Switch Continuity Test table and. If there is no continuity at any of the switch positions, replace switch.
