Procedures

REAR DOOR WINDOW REGULATOR
Power and manual door glass regulators are serviced using the same procedures. For power window motor service procedures refer to Power Windows.

REMOVAL
1. Remove door trim panel.
2. Remove glass from regulator roller channel. Secure glass in the up position in the door frame.
3. Disengage power window motor wire connector, if equipped.

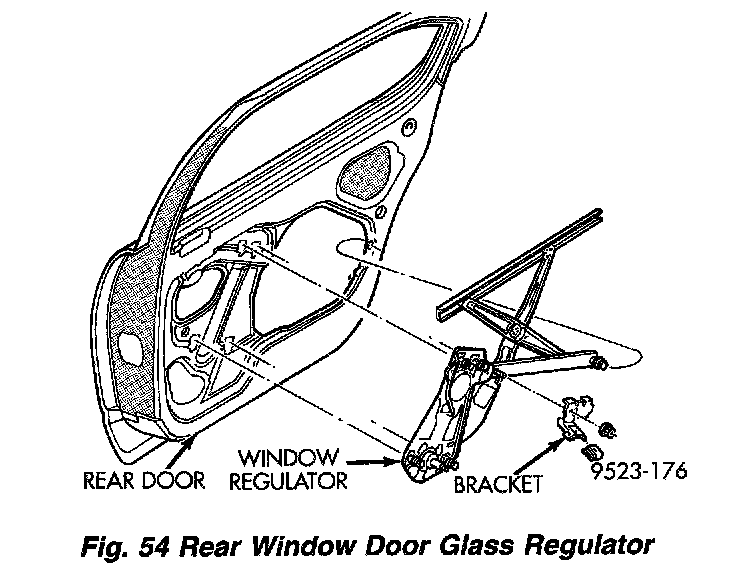

Rear Window Door Glass Regulator:

4. Loosen screw holding regulator scissor channel to door panel.
5. Remove screw and bolt heads from keyhole slots in door panel.
6. Loosen bolts holding regulator to door panel.
7. Remove regulator from door panel.
8. Slide regulator rearward and rotate forward end of roller channel through access hole in door panel.

INSTALLATION
1. Position regulator on door panel through access hole in door panel.
2. Tighten bolts attaching regulator to door panel.
3. Install screw and bolt heads on scissor channel to keyhole slots in door panel.
4. Tighten screw holding regulator scissor channel to door panel.
5. Connect power window motor wire connector, if equipped.
6. Position glass to regulator roller channel.
7. Tighten fasteners holding door glass to roller channel.
8. Install door trim panel.
