Rear Door Outer Belt Molding

REAR DOOR OUTER BELT MOLDING

REMOVAL

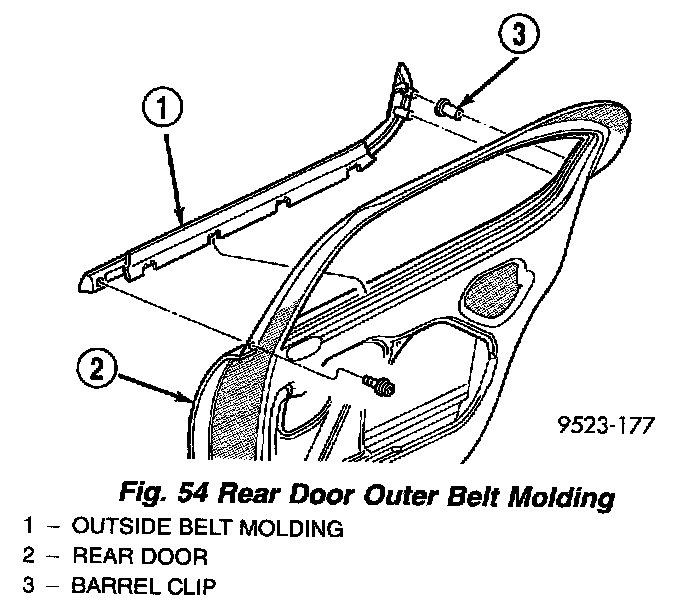

Fig. 54:

1. Remove screw attaching forward end of molding to rear door (Fig. 54).
2. Disengage clips attaching rearward end of belt molding to rear door.

Fig. 55:

3. Using a rubber mallet and block of wood, tap upward at each clip attaching belt molding to door (Fig. 55).
4. Remove belt molding from door.

INSTALLATION

1. Place belt molding into position.
2. Push or tap downward at each clip attaching belt molding to door.
3. Engage clips attaching rearward end of belt molding to rear door.
4. Install screw attaching forward end of molding to rear door.
