Front Door Inner Belt Weatherstrip

FRONT DOOR INNER BELT WEATHERSTRIP

REMOVAL

1. Remove front door trim panel.
2. Pull upward at rear end of inner belt weatherstrip.

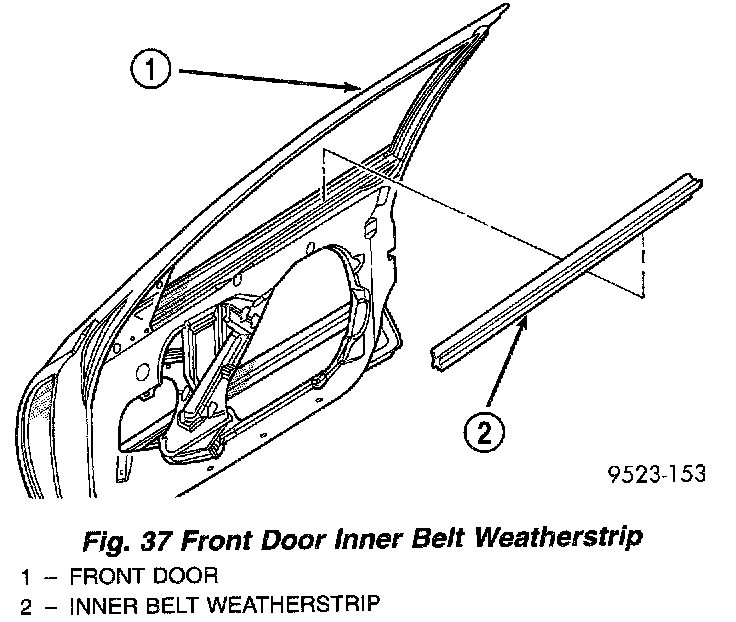

Fig. 37:

3. Remove inner belt weatherstrip from vehicle (Fig. 37).

INSTALLATION

1. Place inner belt weatherstrip into position.
2. Push downward on the inner belt weatherstrip starting at the front edge.
3. Install front door trim panel.
