Gearshift Knob

REMOVAL
1. Pull shifter boot down and away from shifter roll pin.

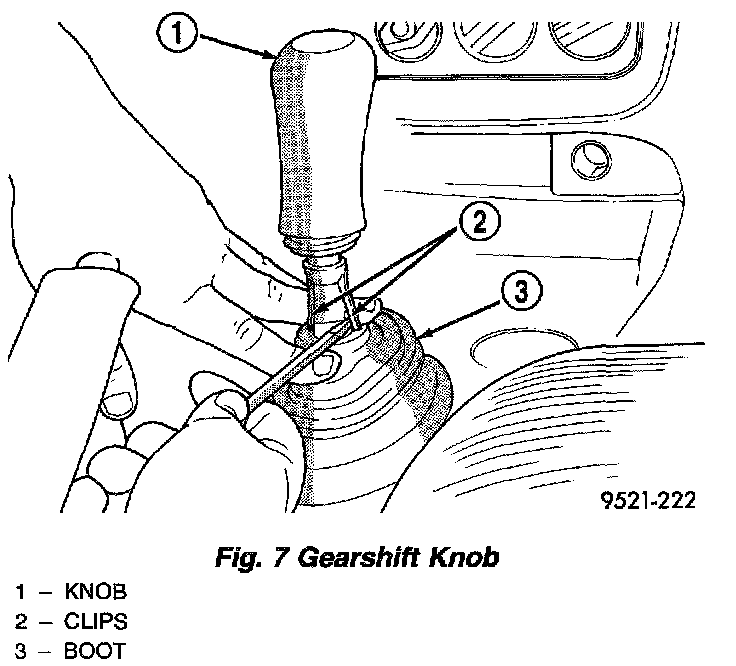

Fig. 7:

2. Pry legs of shift knob away from shift lever roll pin using a flat blade pry tool (Fig. 7).

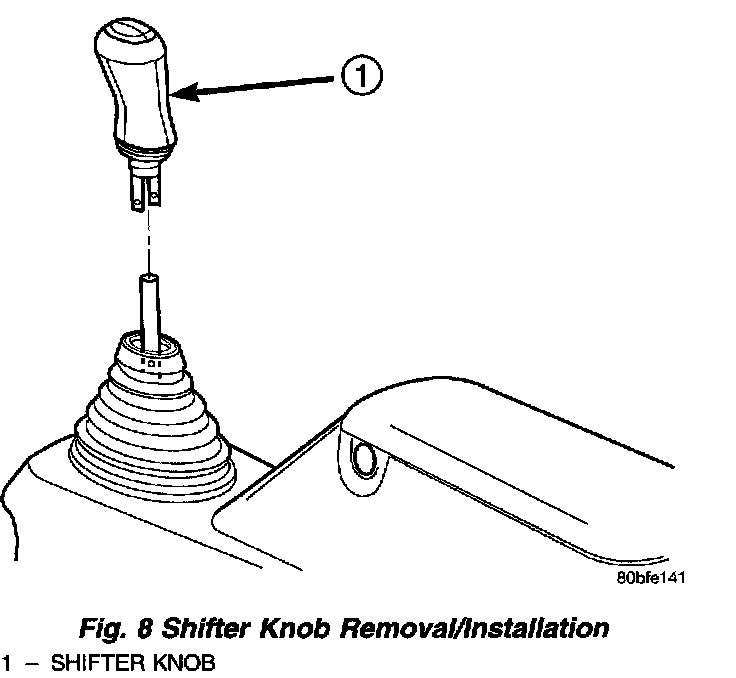

Fig. 8:

3. Remove knob from shifter handle (Fig. 8).


INSTALLATION
1. Install shifter knob to shifter mechanism until legs snap over roll pin.
2. Pull shifter boot up to seat around shifter knob.
